How i building GPZ900 (Part 3)

Radiator and Front headlight brackets need modifying,

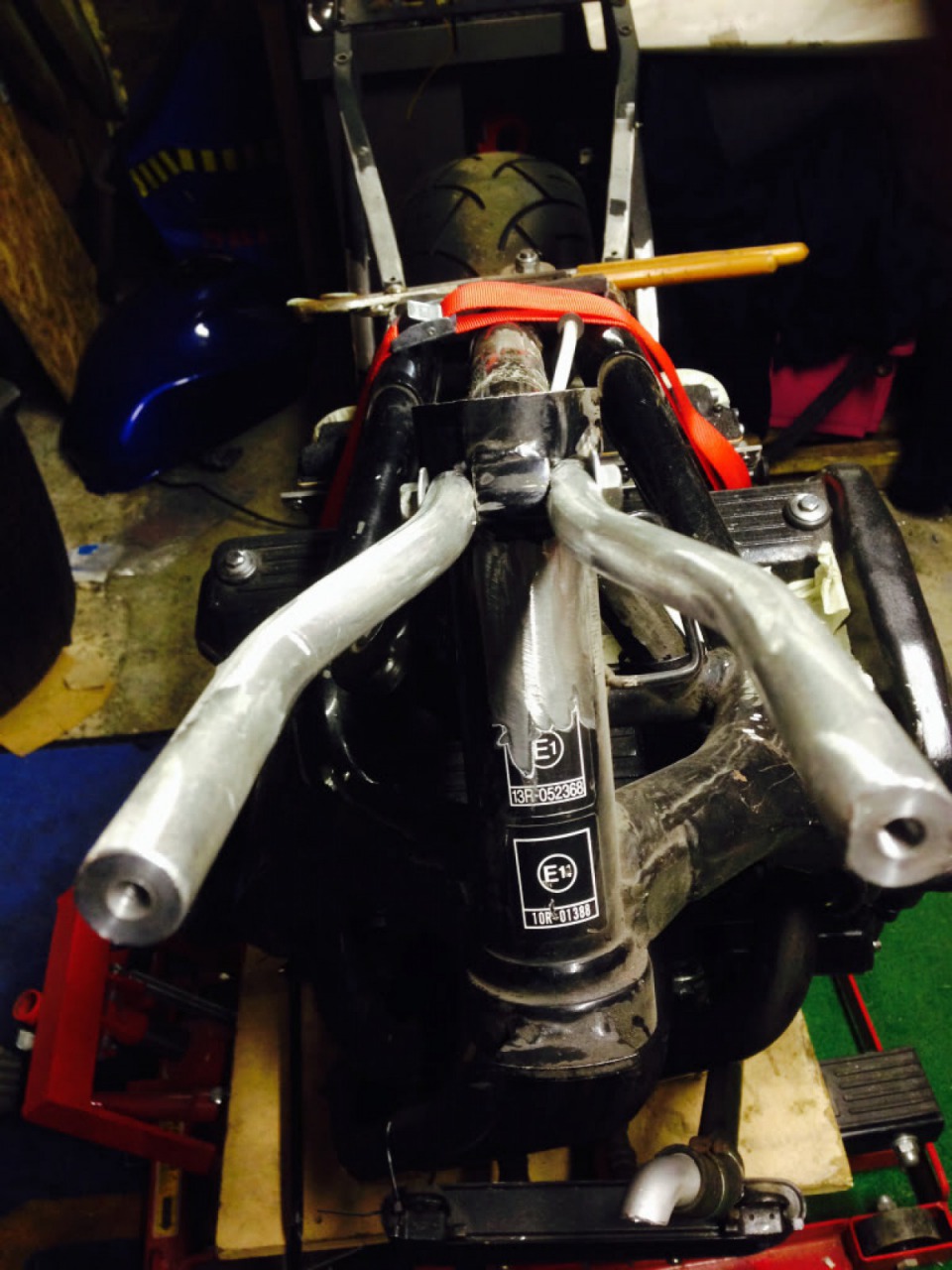

Having to have a new piece of tubing welded centrally to headstock.
Had to completey strip the front end down,
Just had to grind the top mount square, and file flats on to top brckets inside faces.

Lower mount for headstock now needs making

Top Radiator Brackets under construction

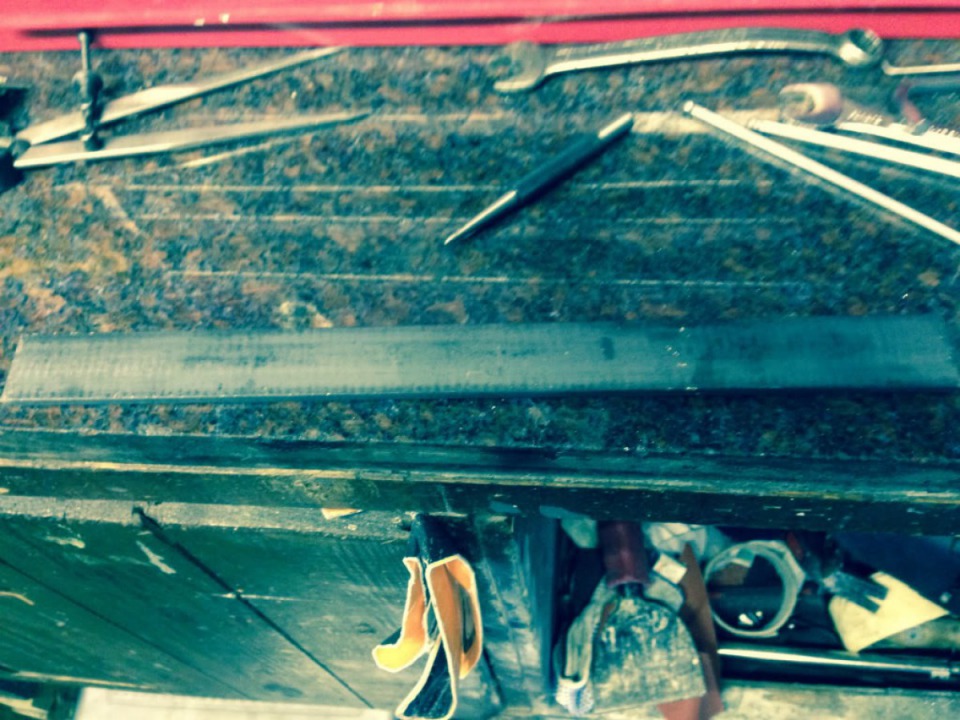

Flat Bar ready to fettle these will become the Radiator Brackets

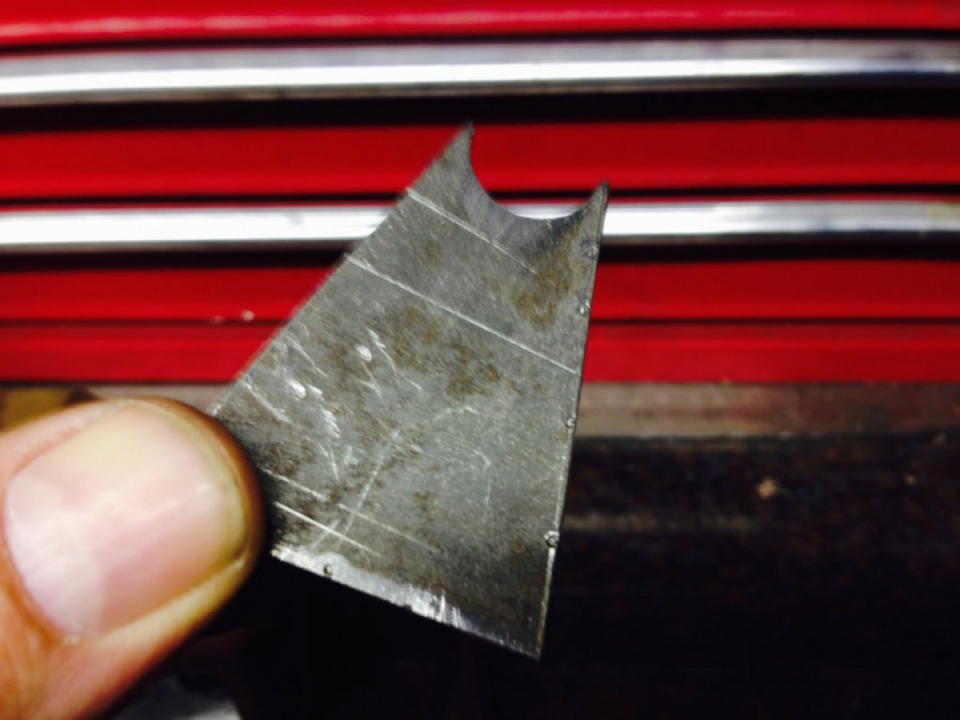

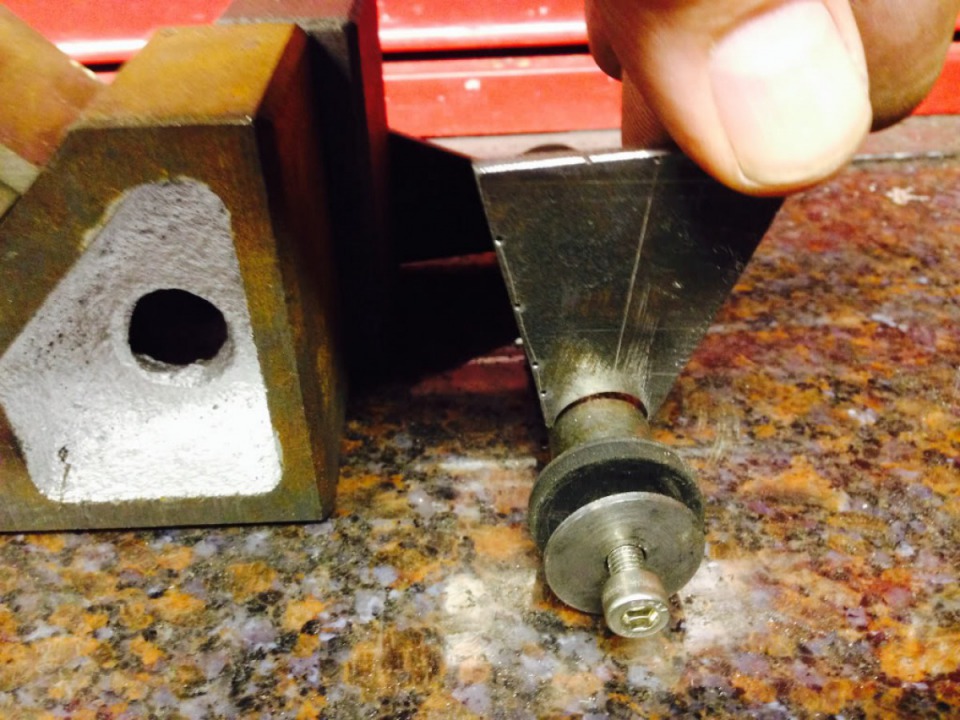

Fettled up a clean round end

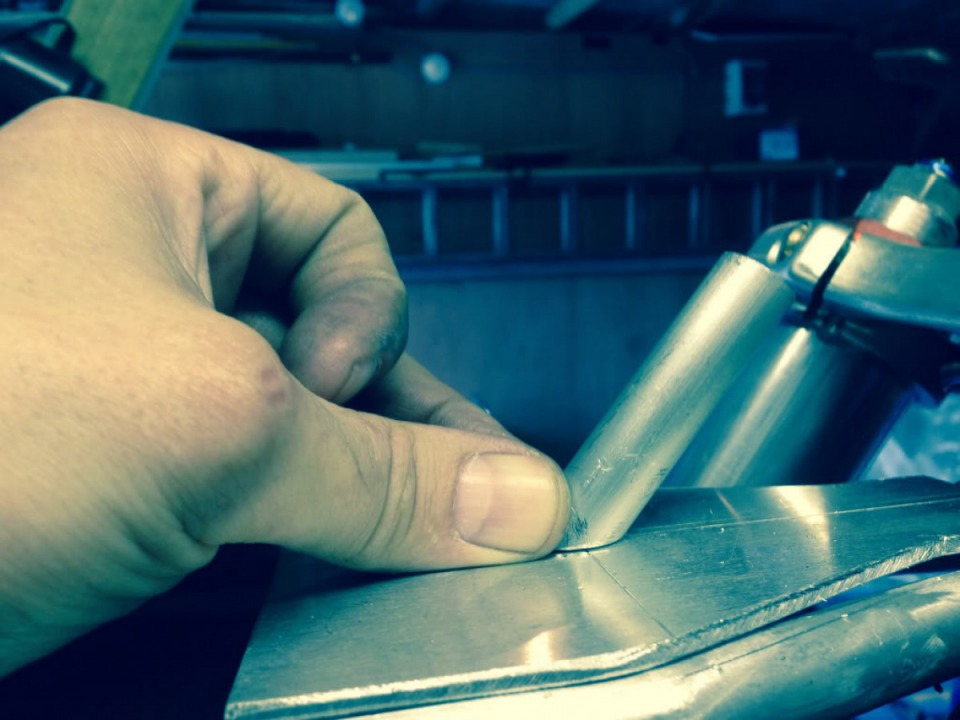

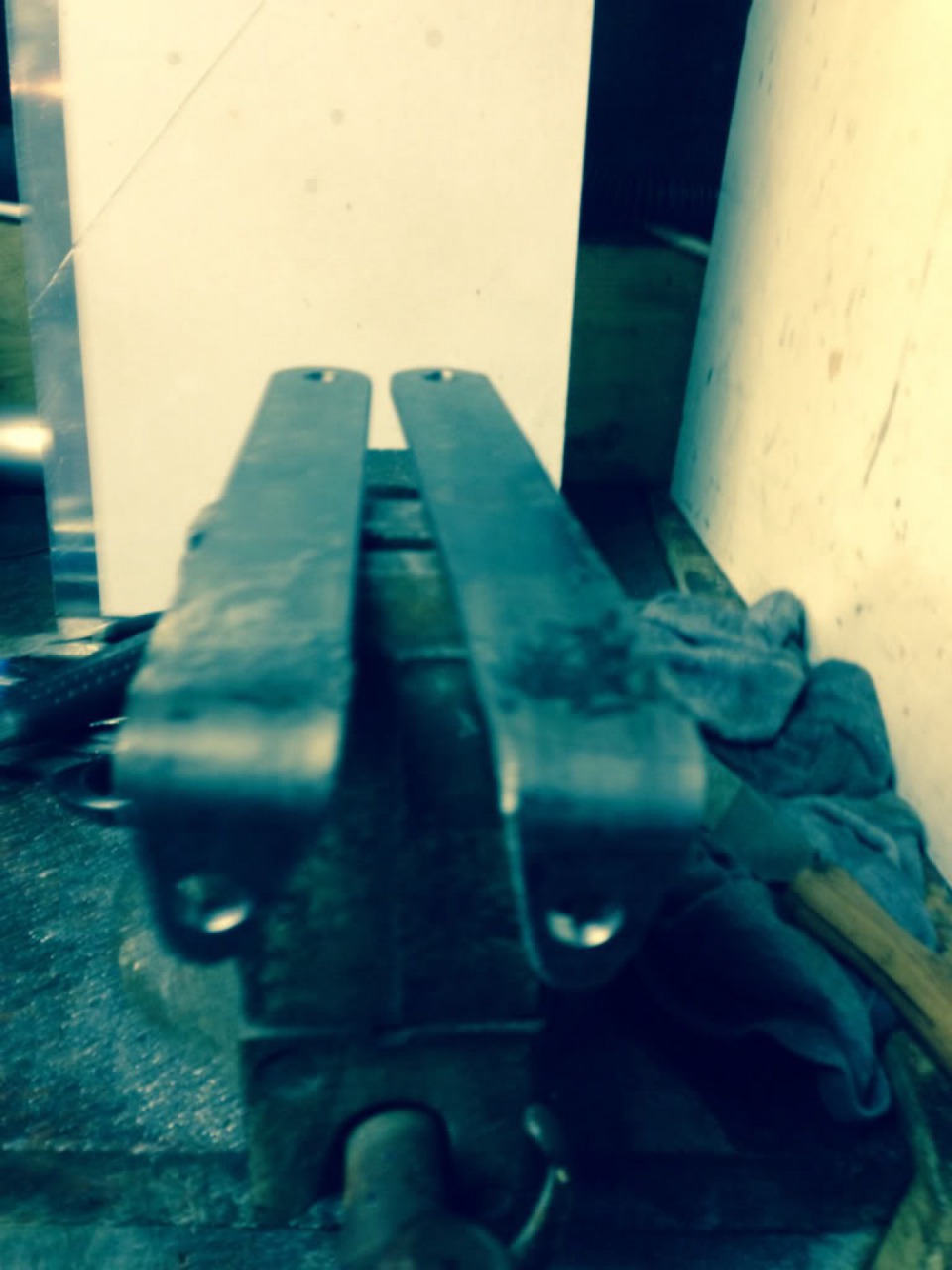

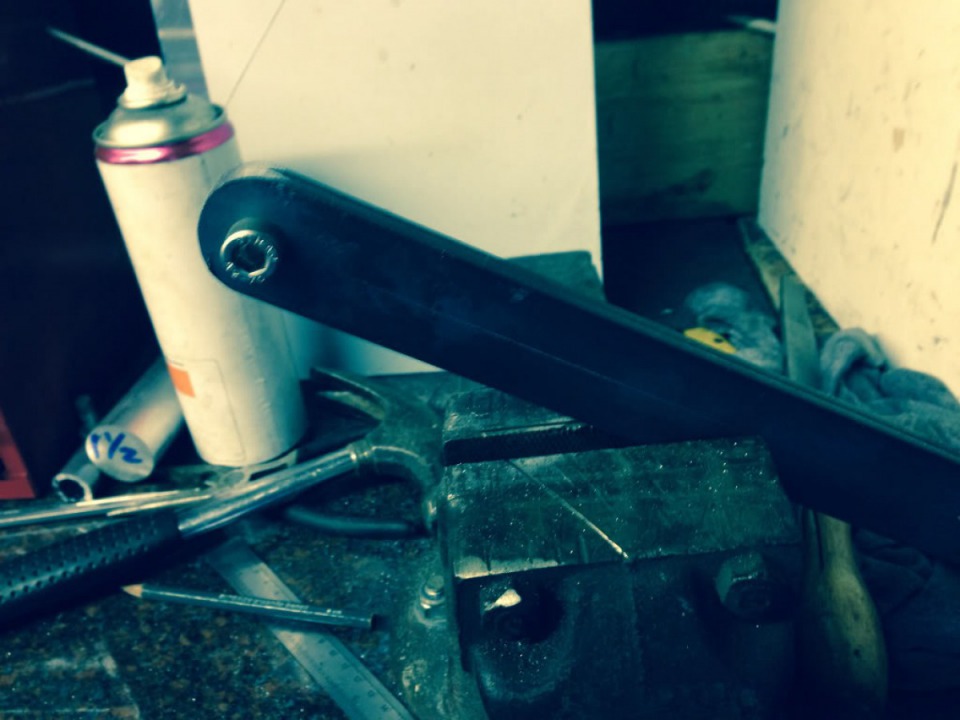

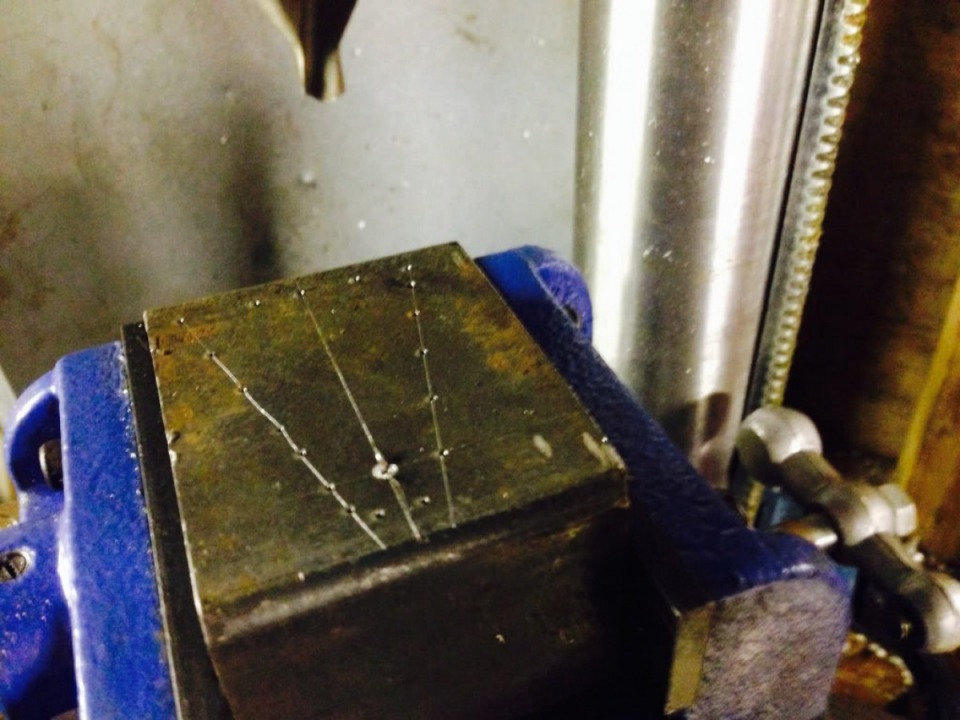

Brackets Drilled and Bent to Shape

Brackets test fitted

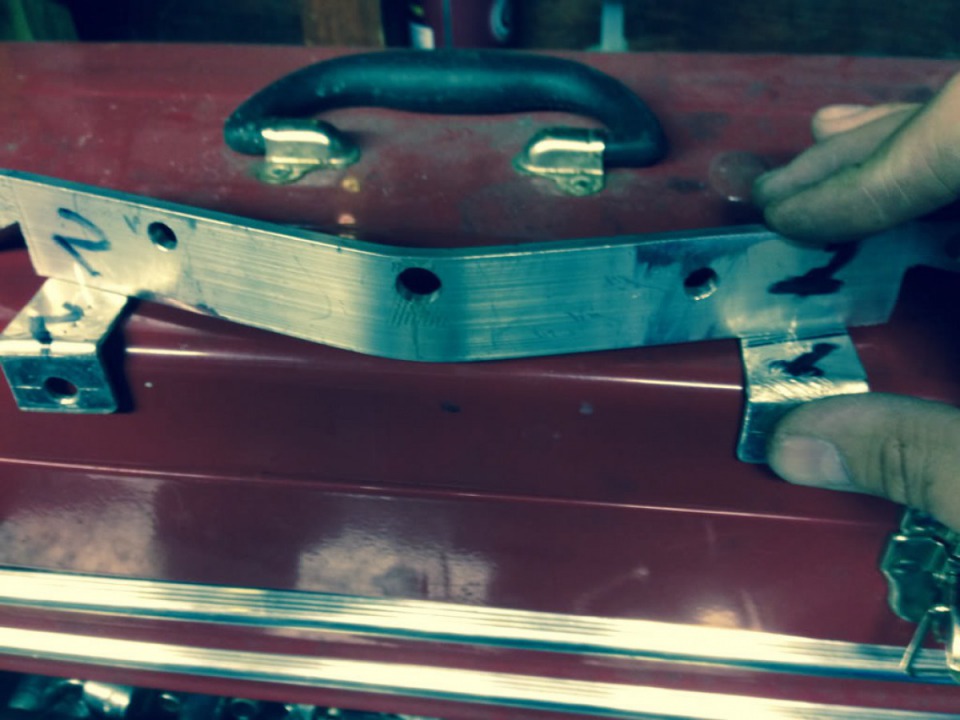

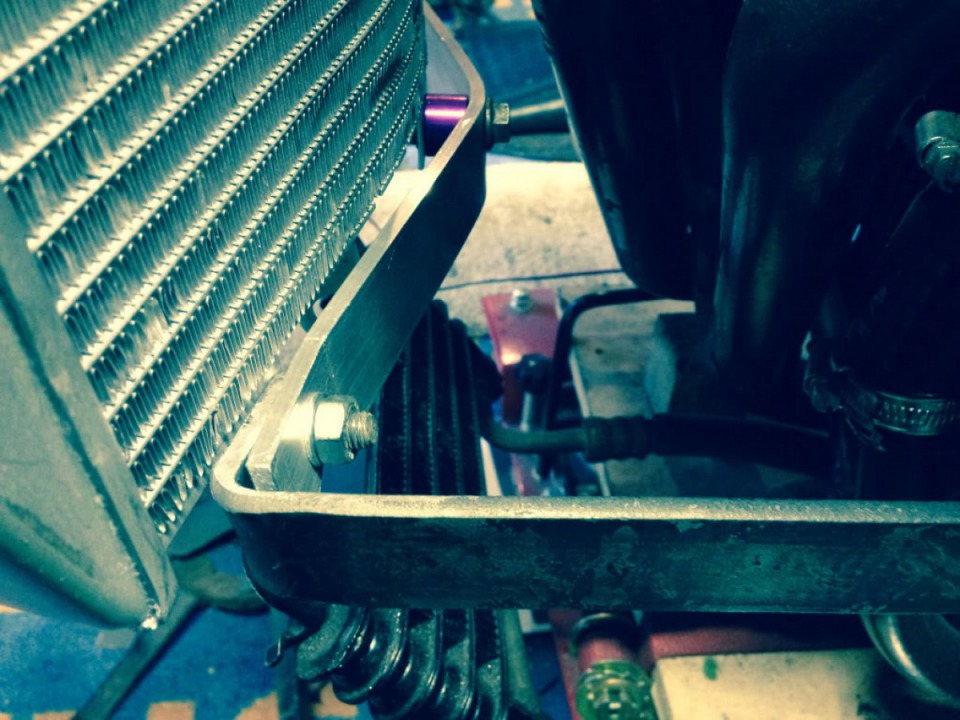

Lower mounting Brackets will also mount lower oil cooler

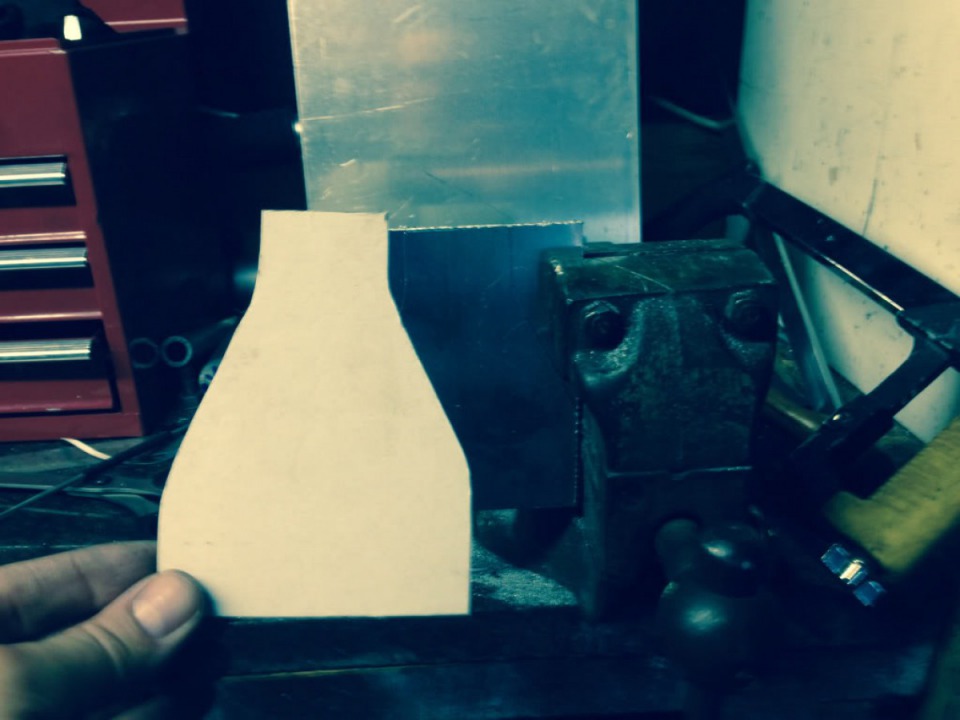

Cardboard template cutout ready for ally plate, this will mount the Speedo , and become part if the Headlight mounting, which will also give rigidity

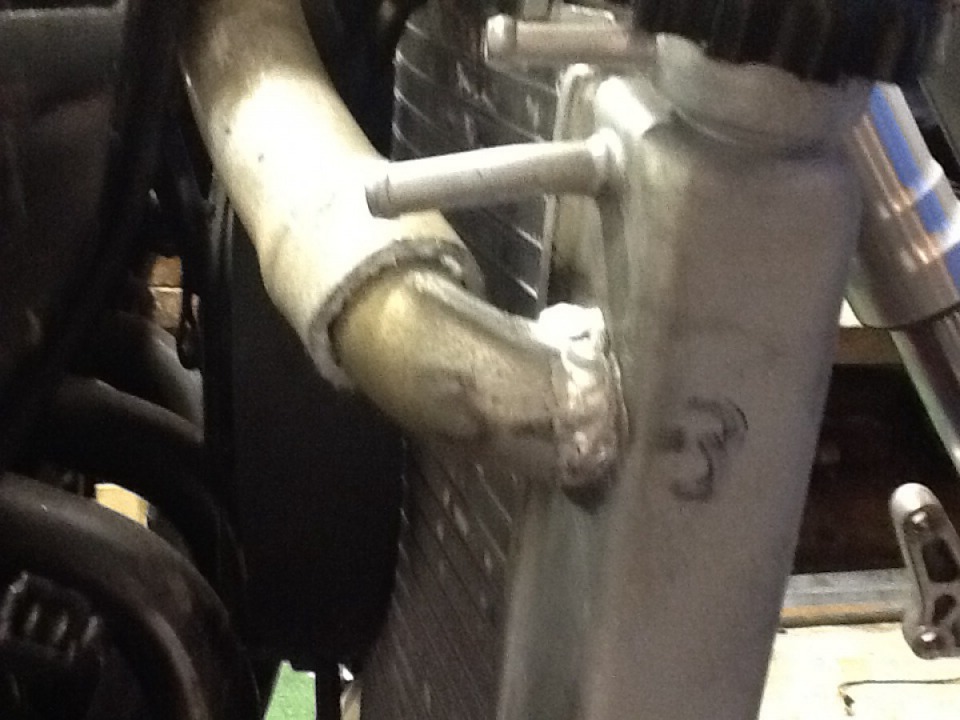

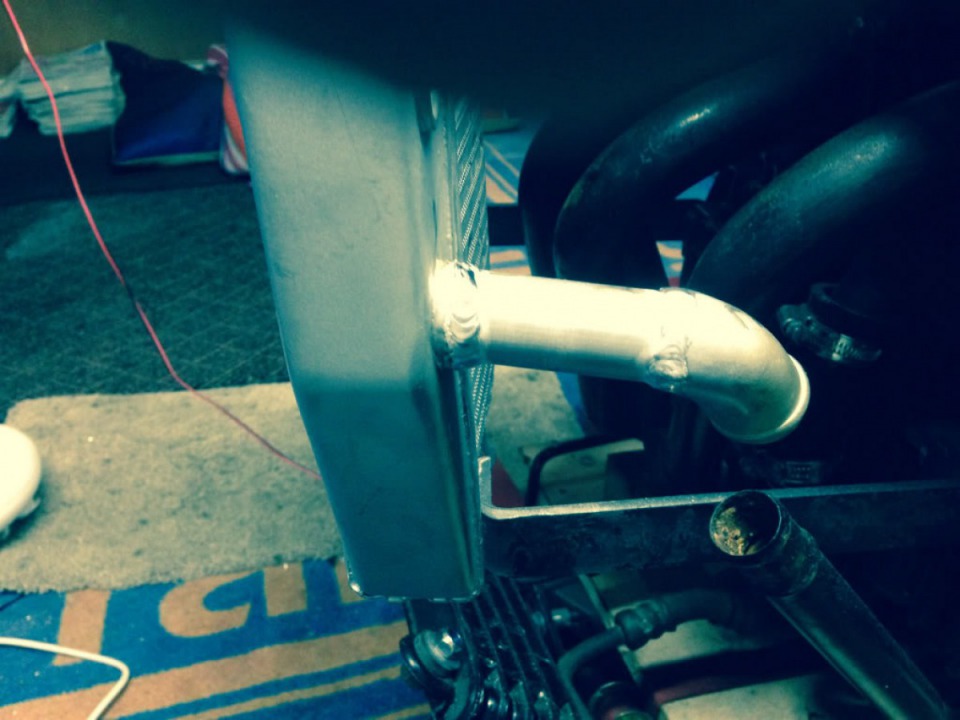

Left hand and Right hand Radiator tubing modified to to new angles

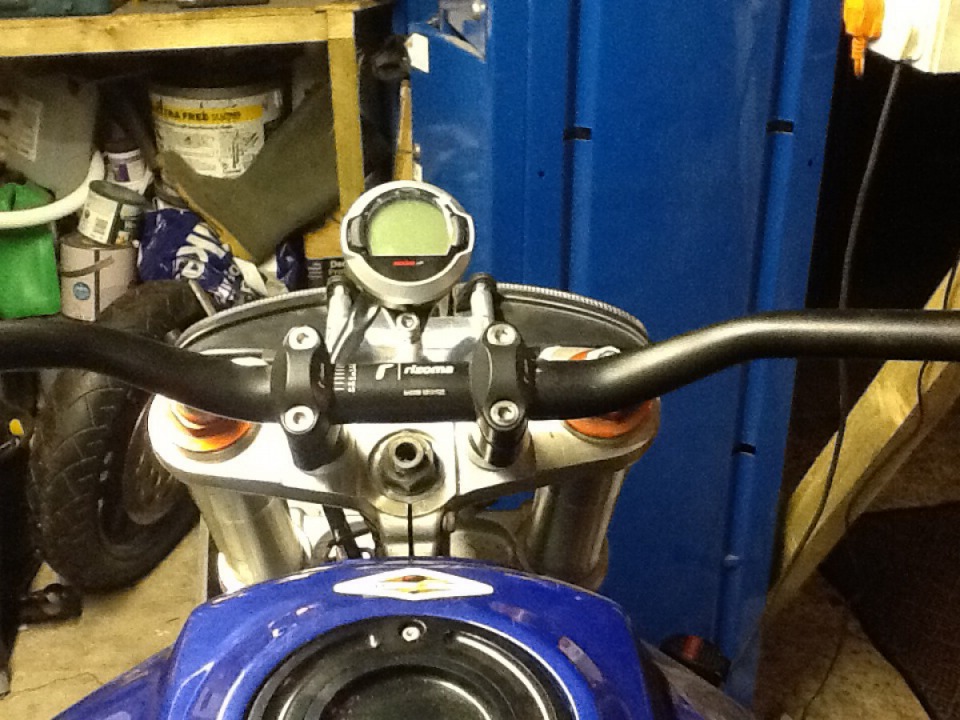

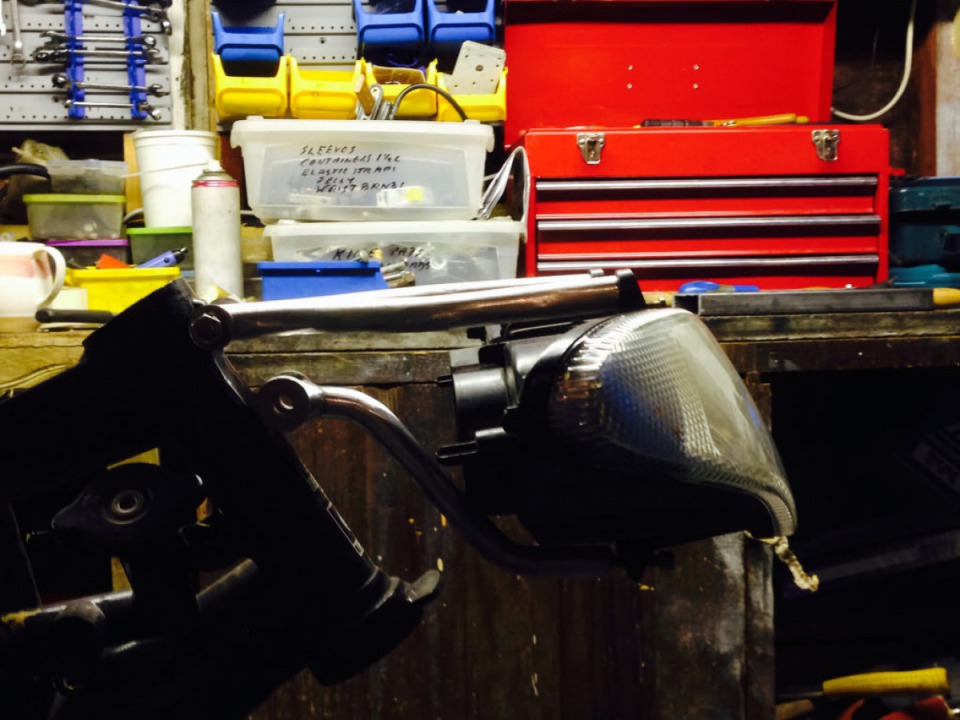

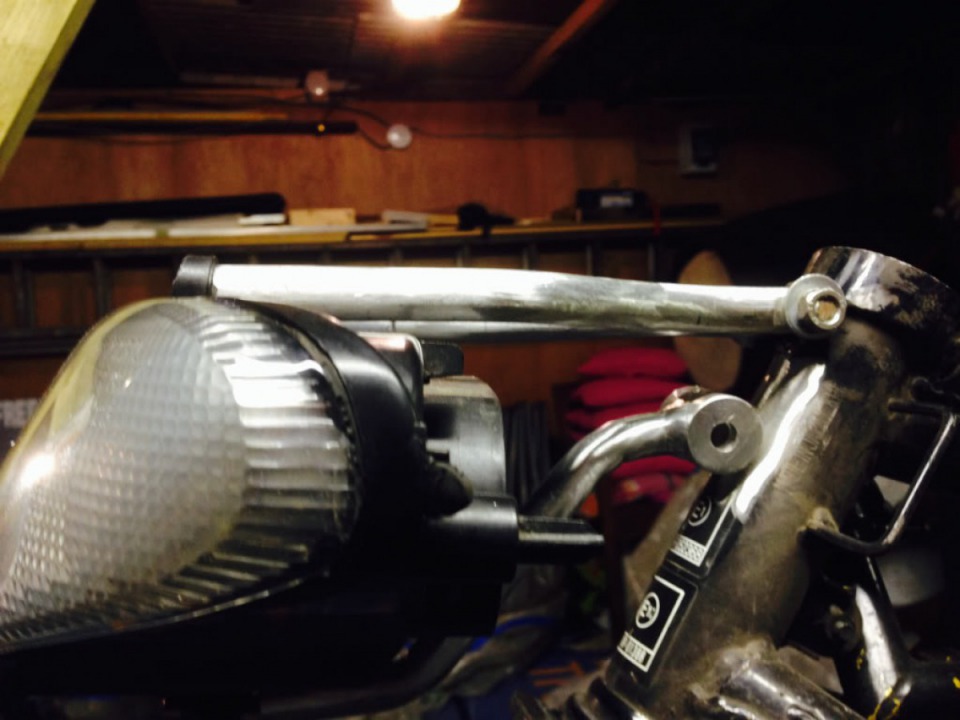

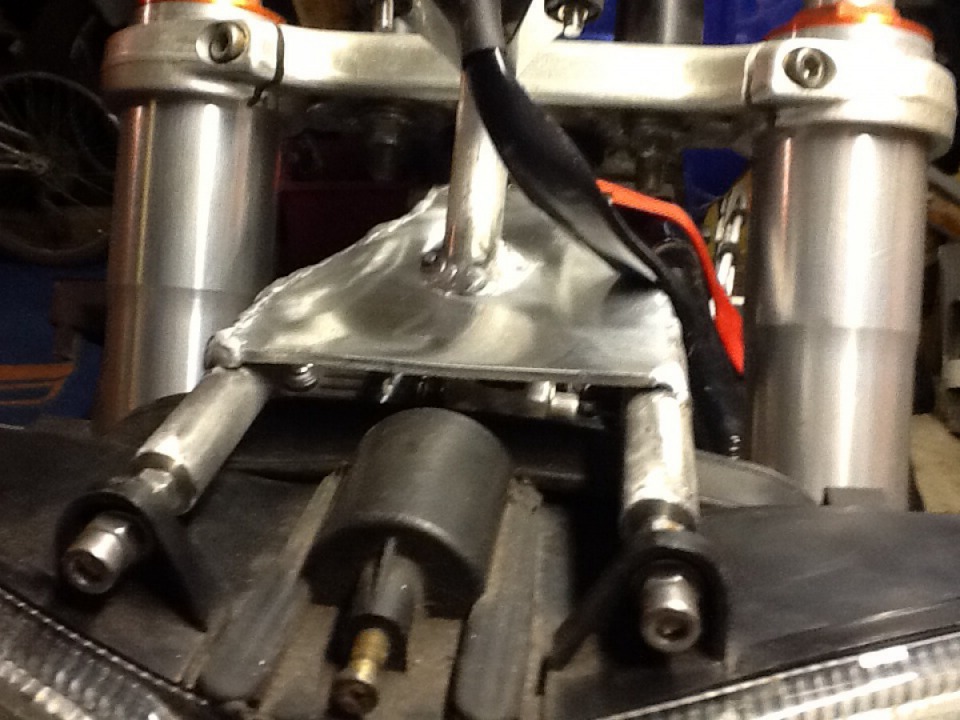

Headlight and Speedo mount fitted

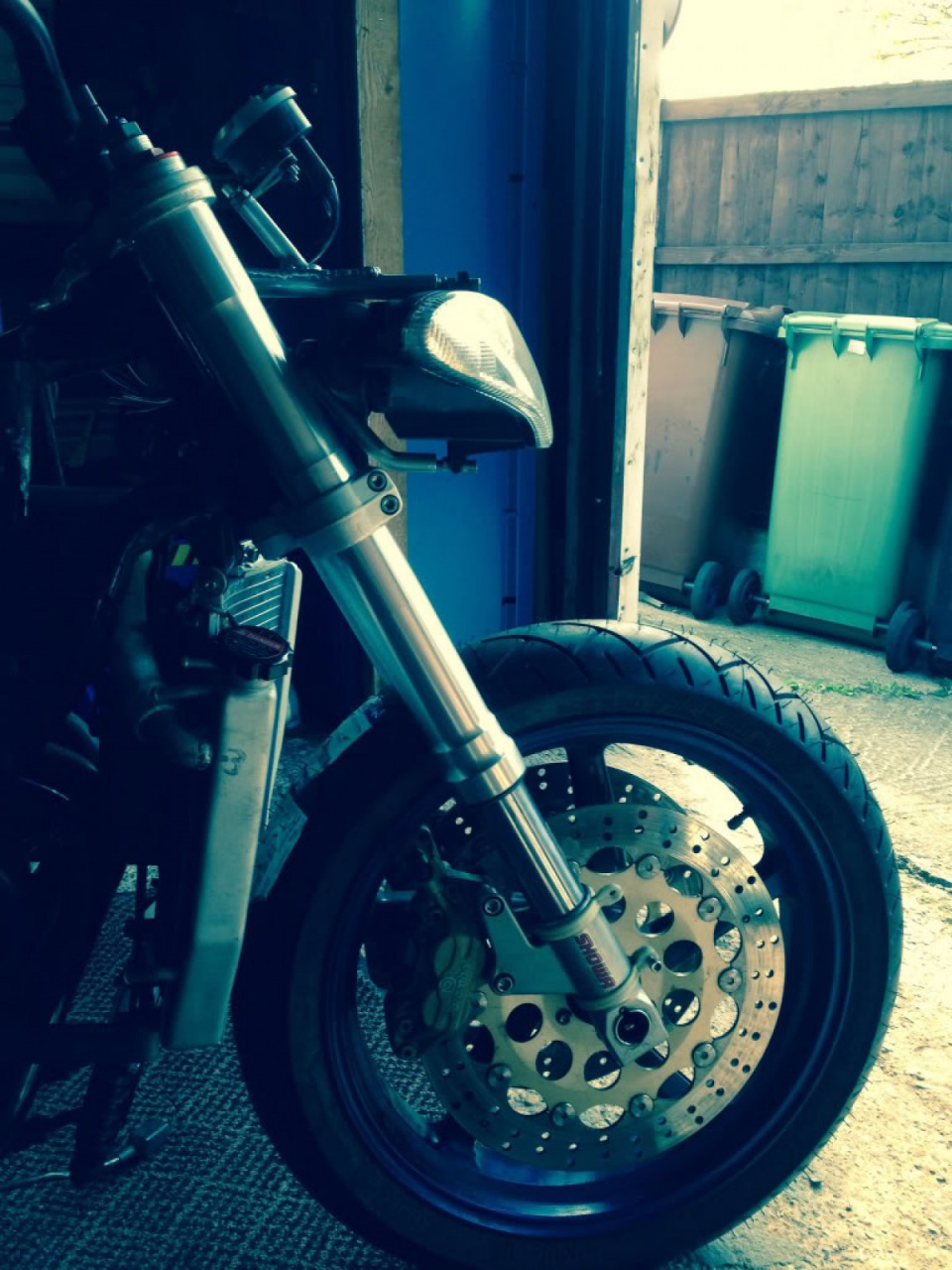

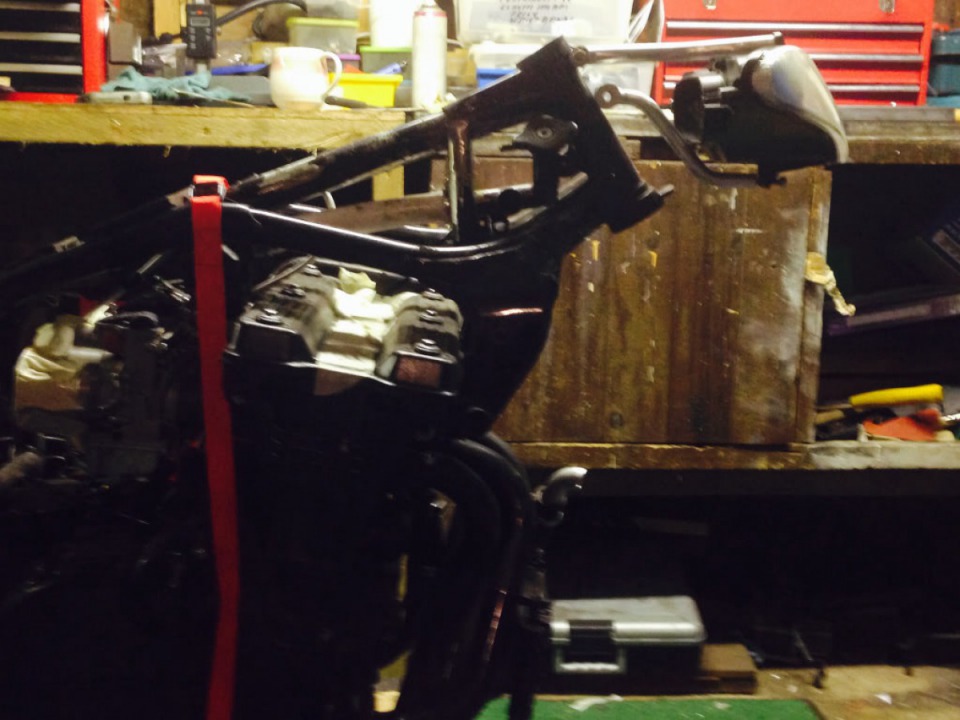

Side shot showing headlight and rad fitted.

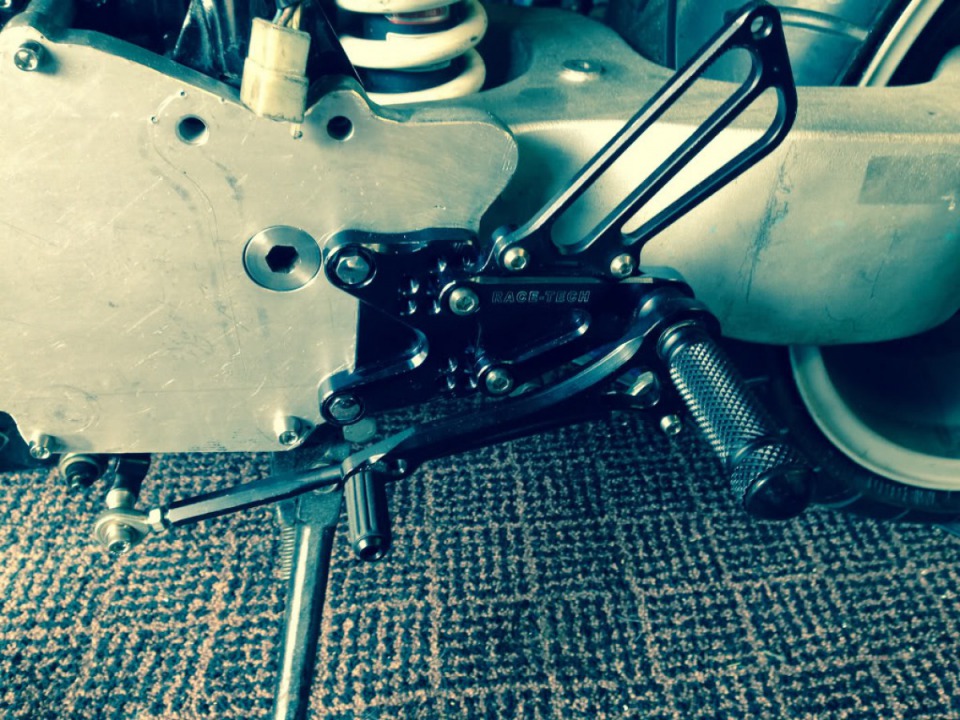

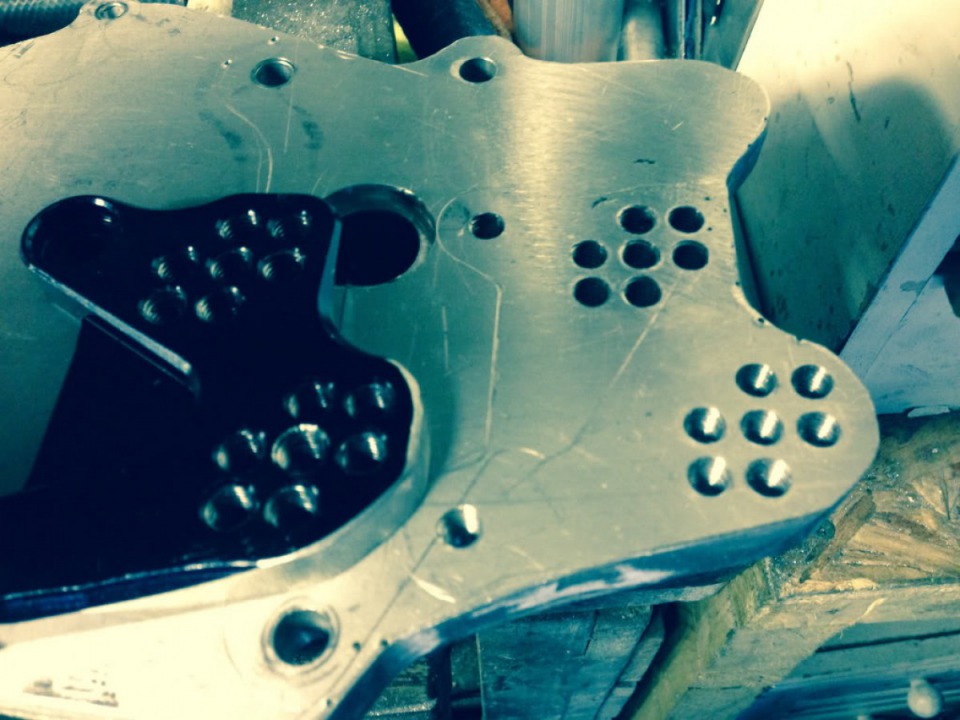

Rear sets Gear lever unit fitted to new modified side plate also allows ofset of sprocket.

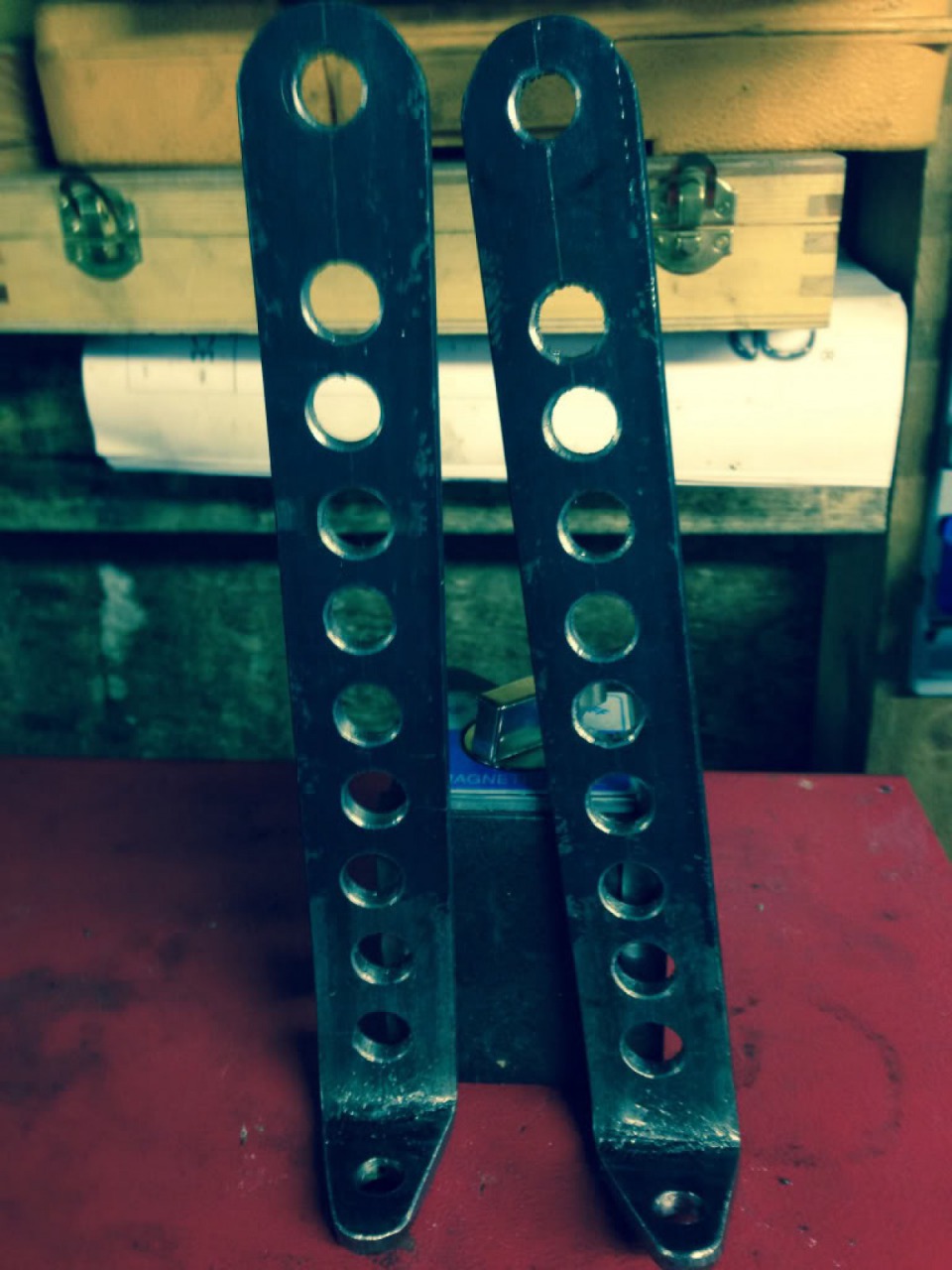

Radiator brackets drilled and lightened

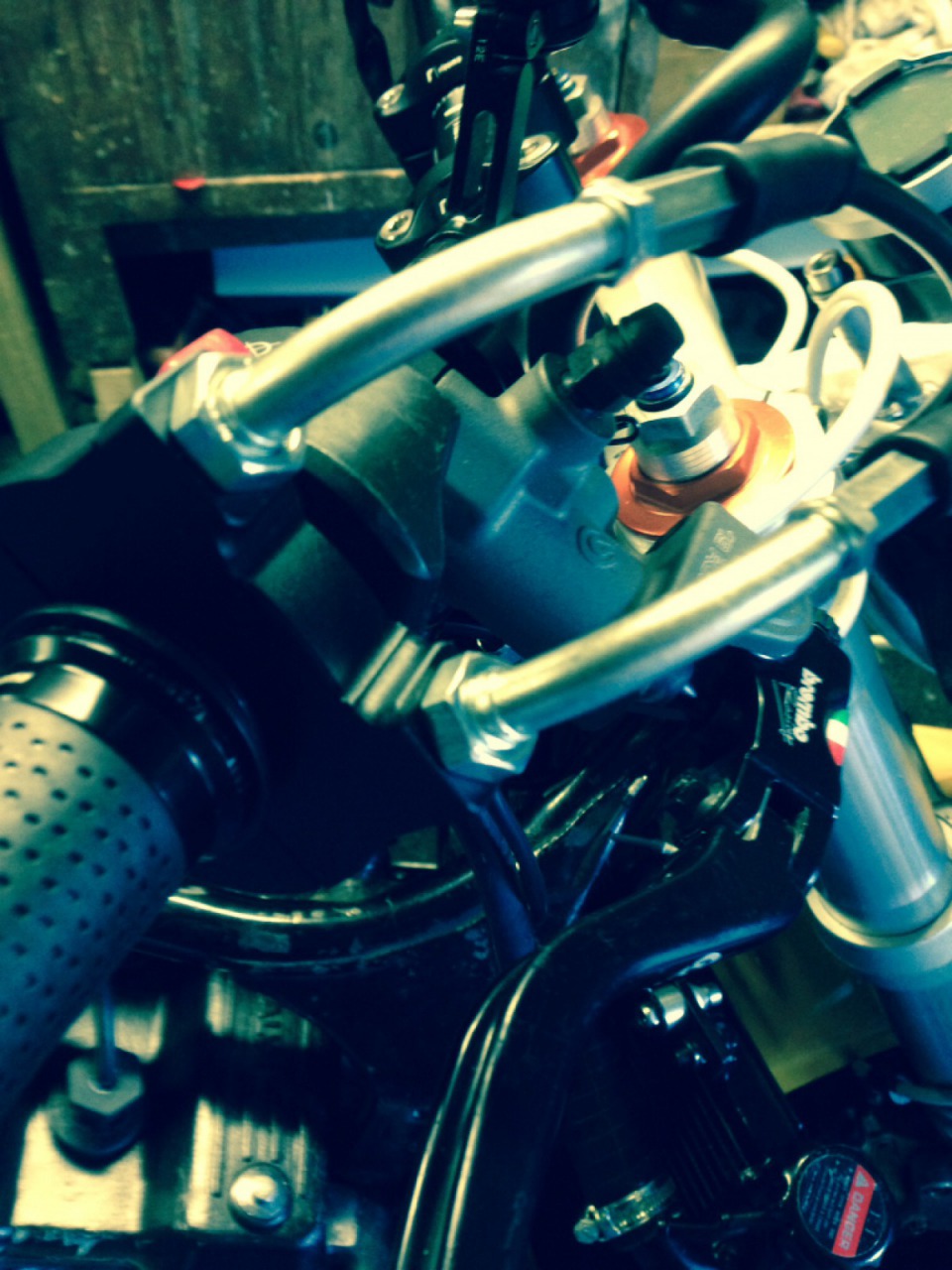

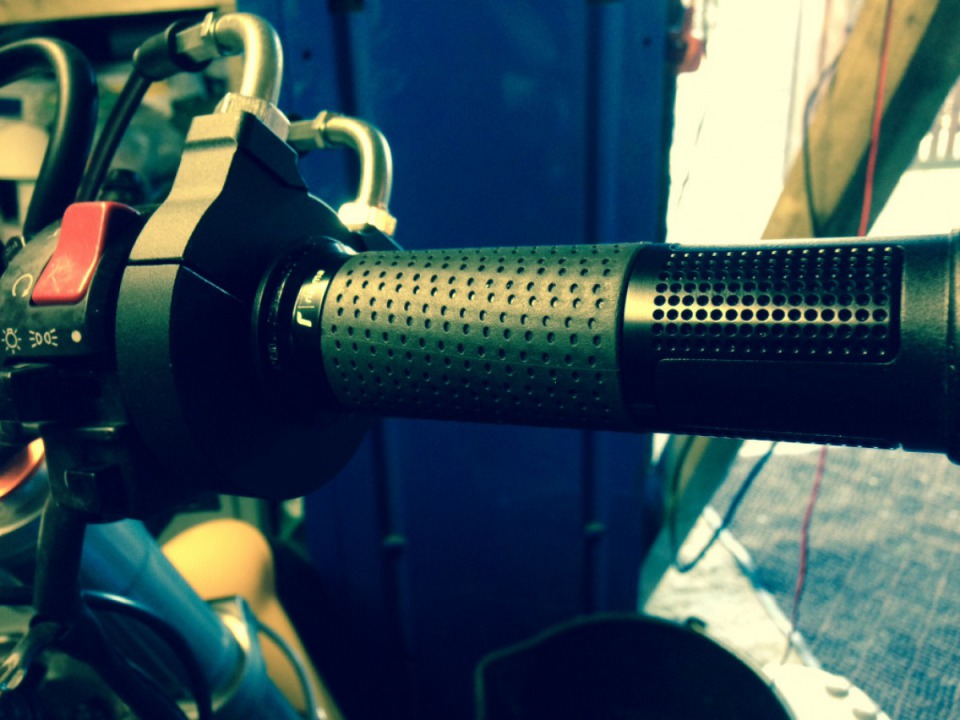

Venhill dual action throttle fitted.
What a bastard this was, i had to ream out the inner alloy coating of the Rizoma throrttle grip

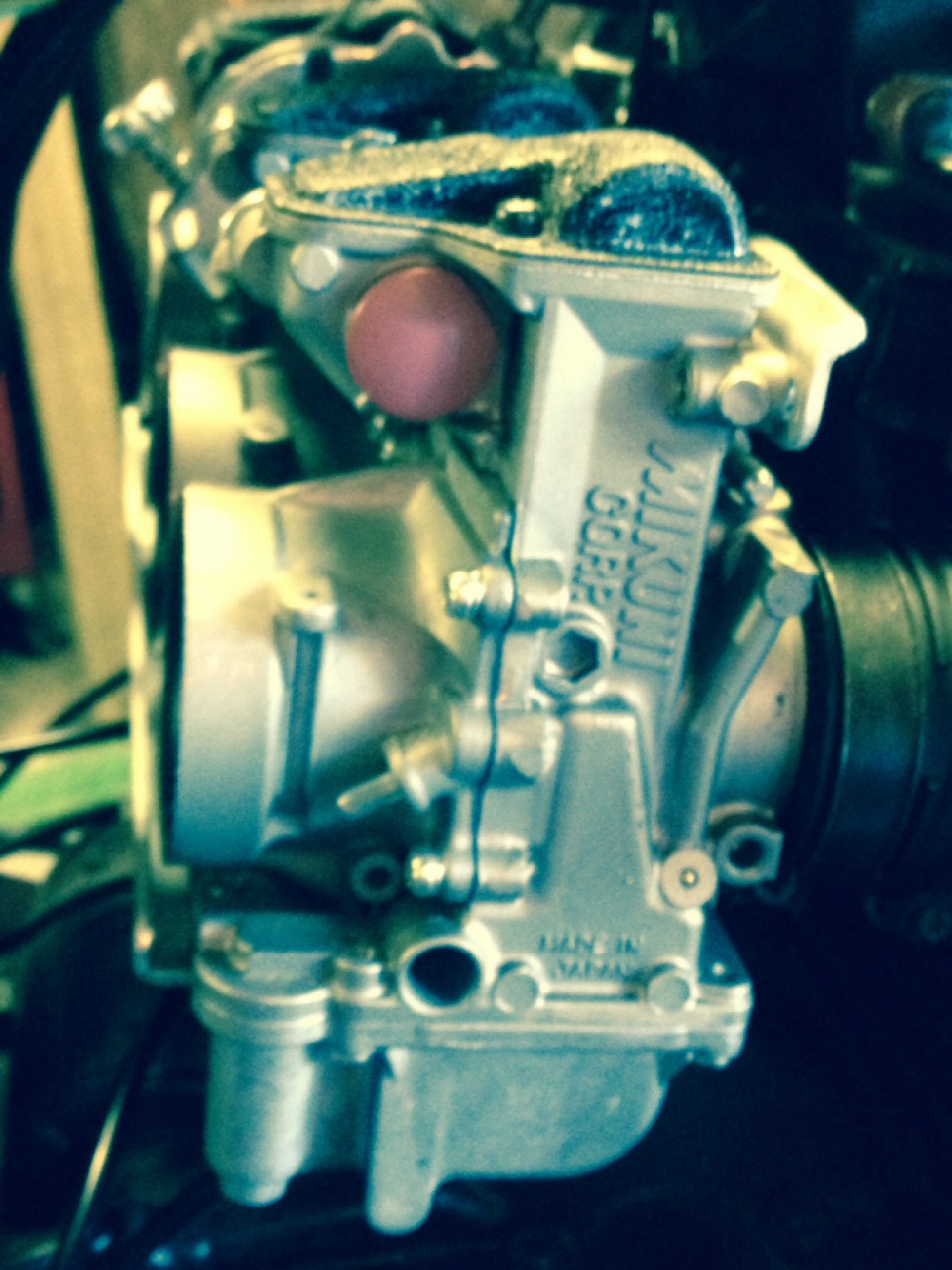

Connected to a brand spanking set of Mikuni FCR36 all the way from Holland

Thank you to everyone who reads, in the continuation of the 4 parts
