Honda VFR400R 1995 → V4 Restoration Project "Pocket Rocket" Part 3(4)

Gathered up

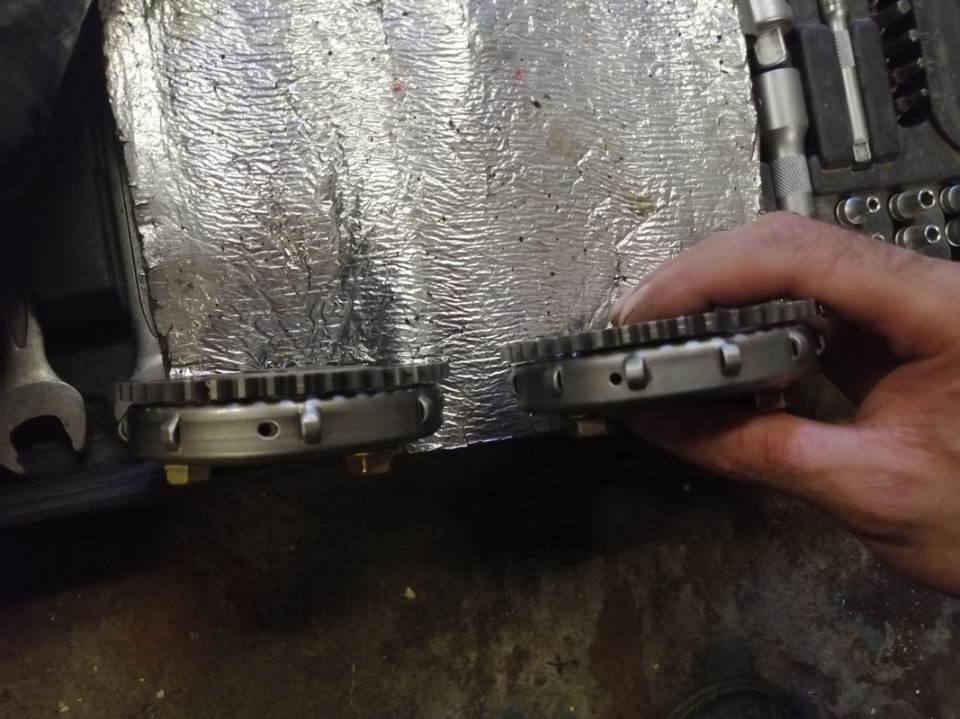

The NC21/24 one-way clutch arrived.

Compared to the NC30, the markings are spaced a bit more frequently.

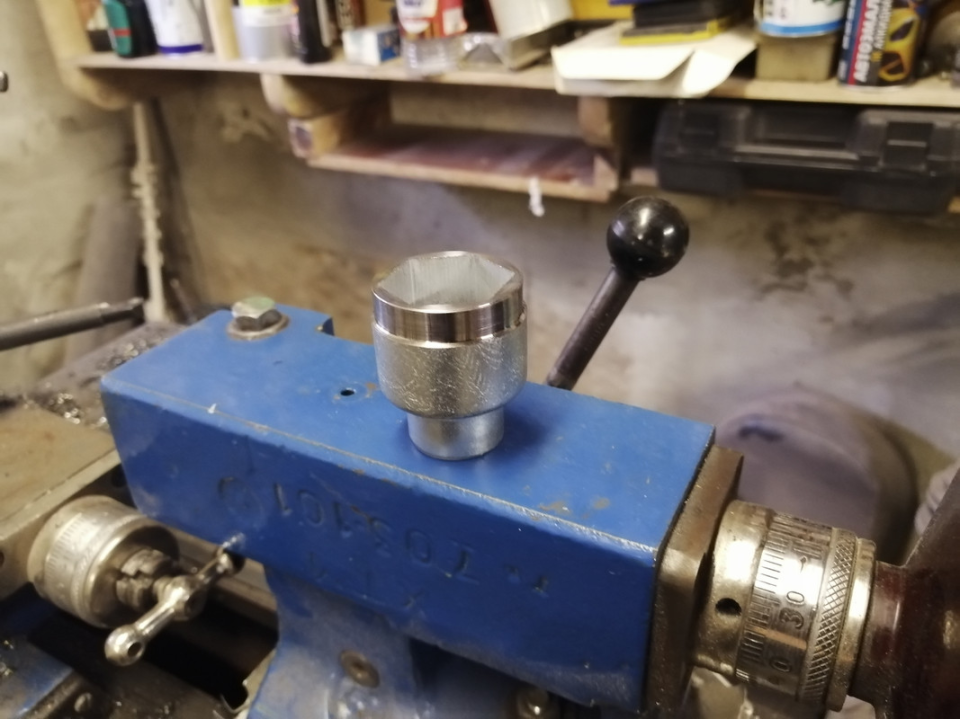

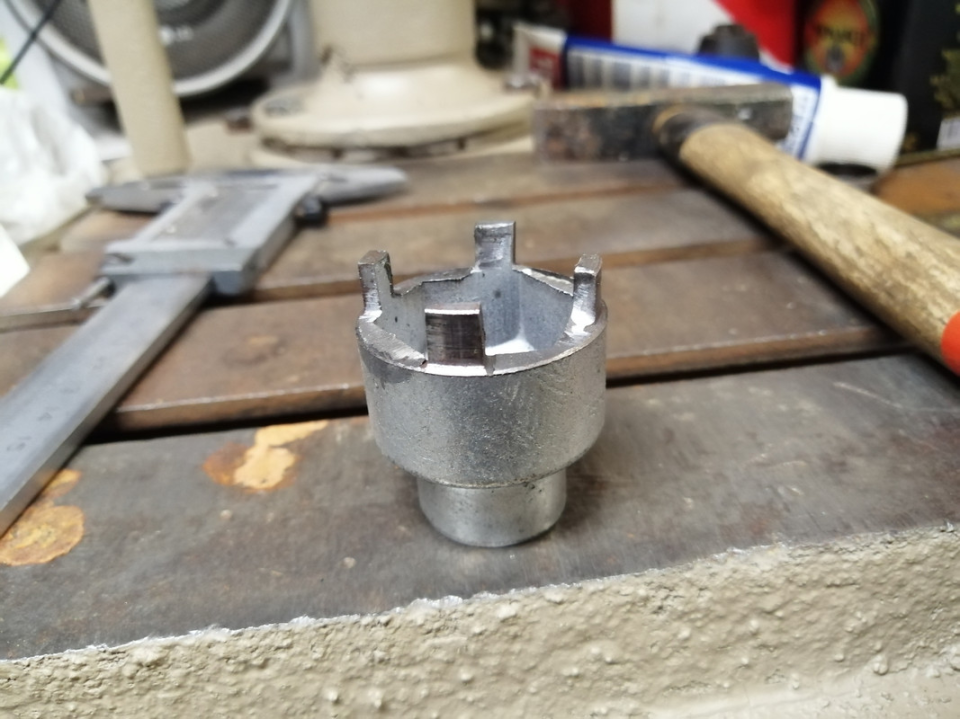

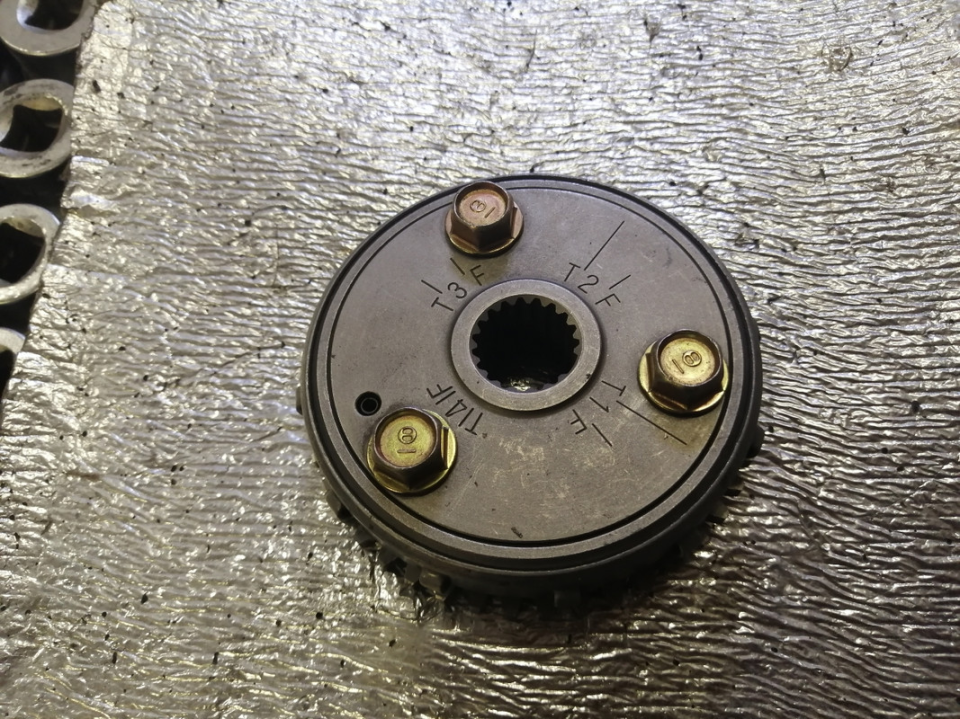

I encountered a problem removing the clutch basket from the NC30 engine: a special tool is needed. I went to the store, bought a 26mm socket, machined it on a lathe, marked it, and cut it as needed.

I managed to loosen it using an impact wrench after slightly heating the locknut.

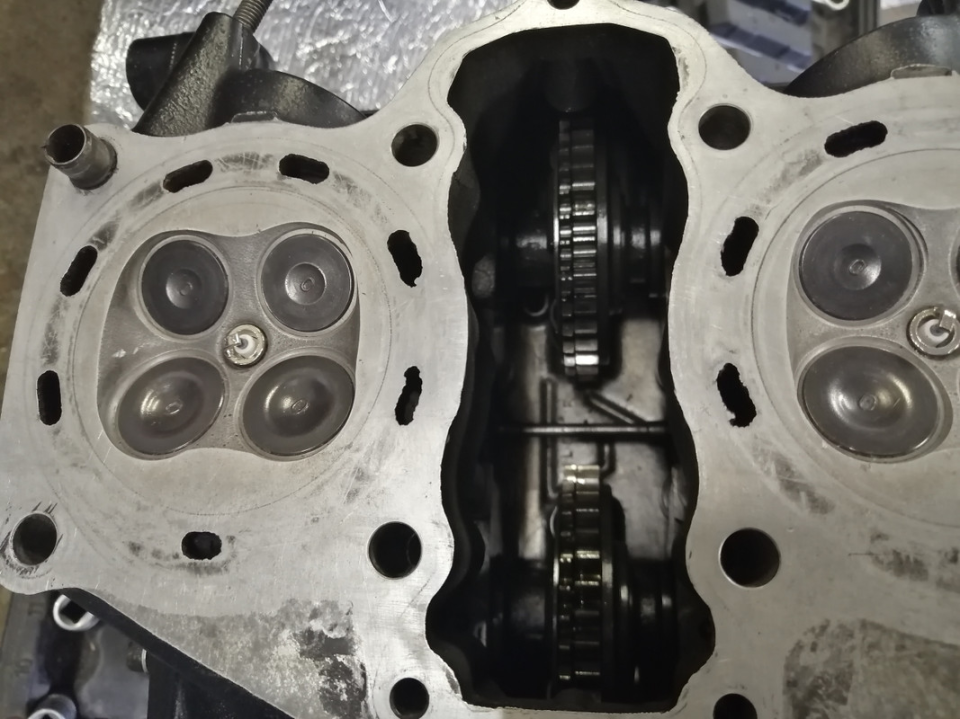

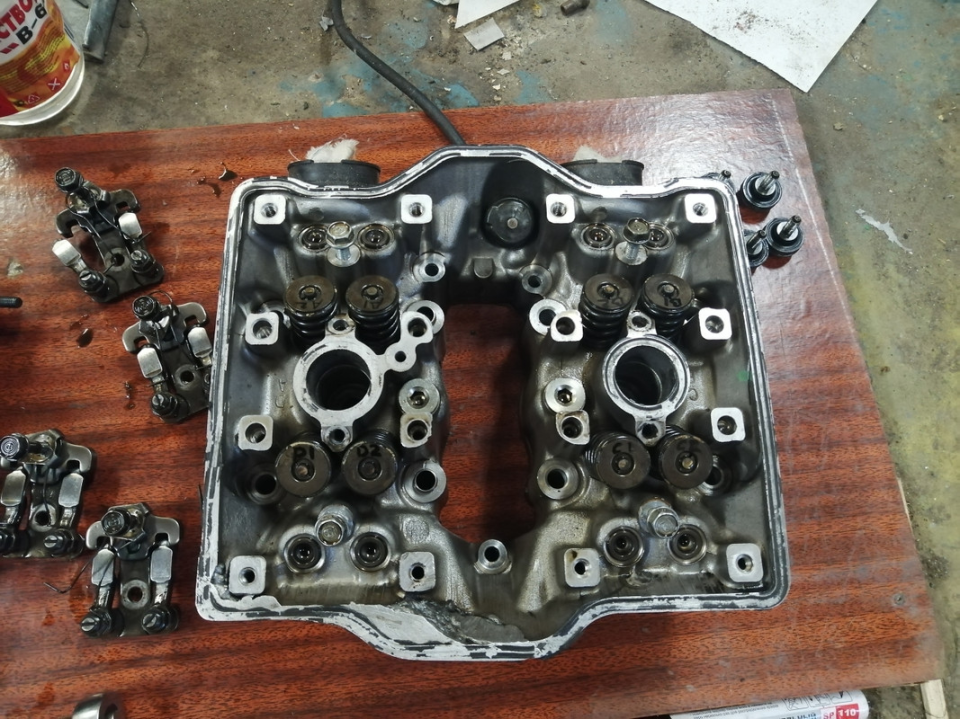

I serviced the second head, did some minor work with a milling cutter on the cooling channels. In the first photo, you can see a strange rough casting.

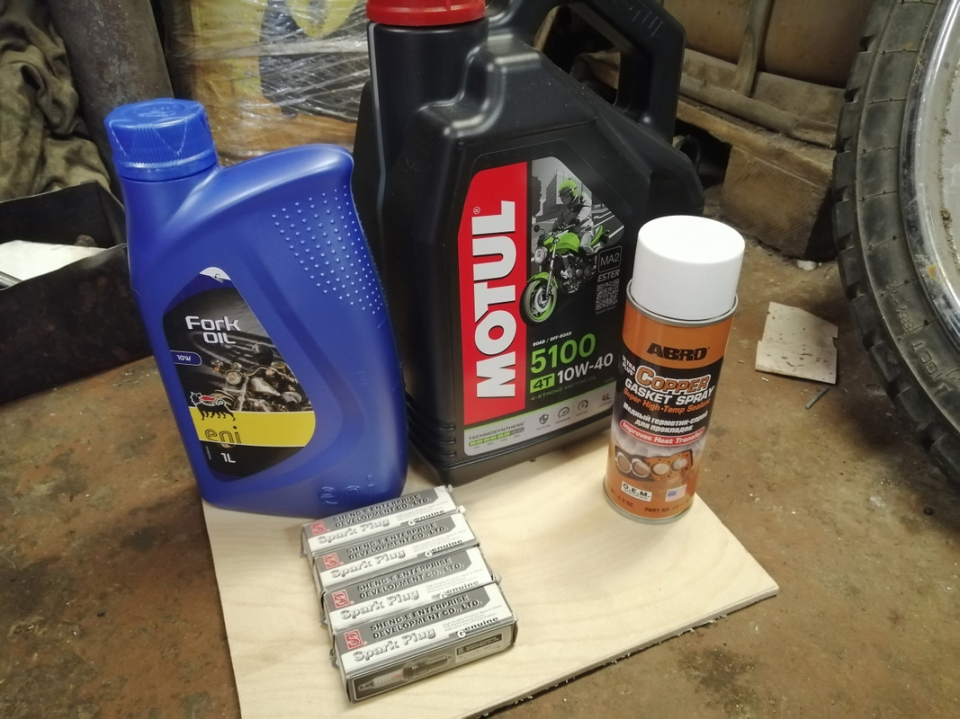

Some goodies have arrived.
