Honda VFR400R 1995 → V4 Restoration Project "Pocket Rocket" Part 3(5)

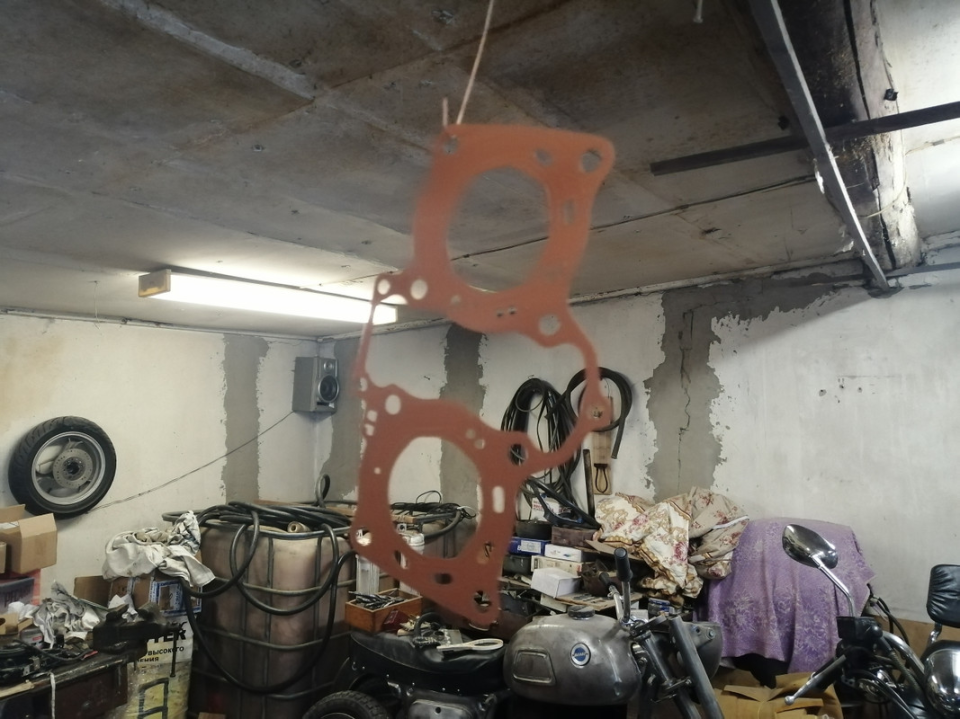

Sprayed the head gaskets with a special spray.

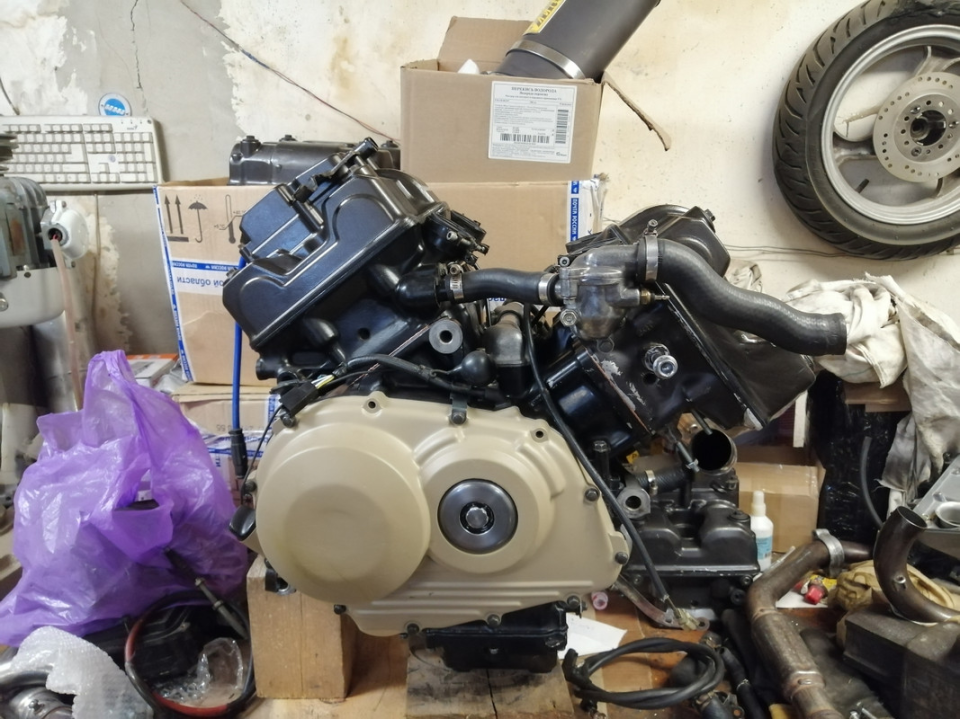

Assembled the engine, tightened everything, set the marks, adjusted the valves.

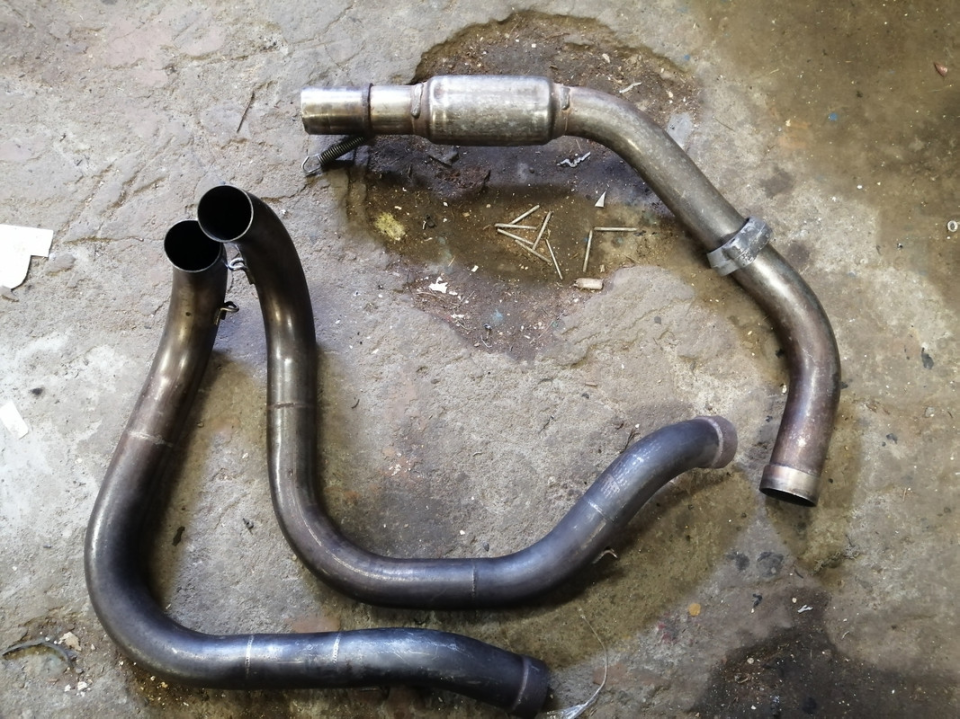

Moved on to the exhaust:

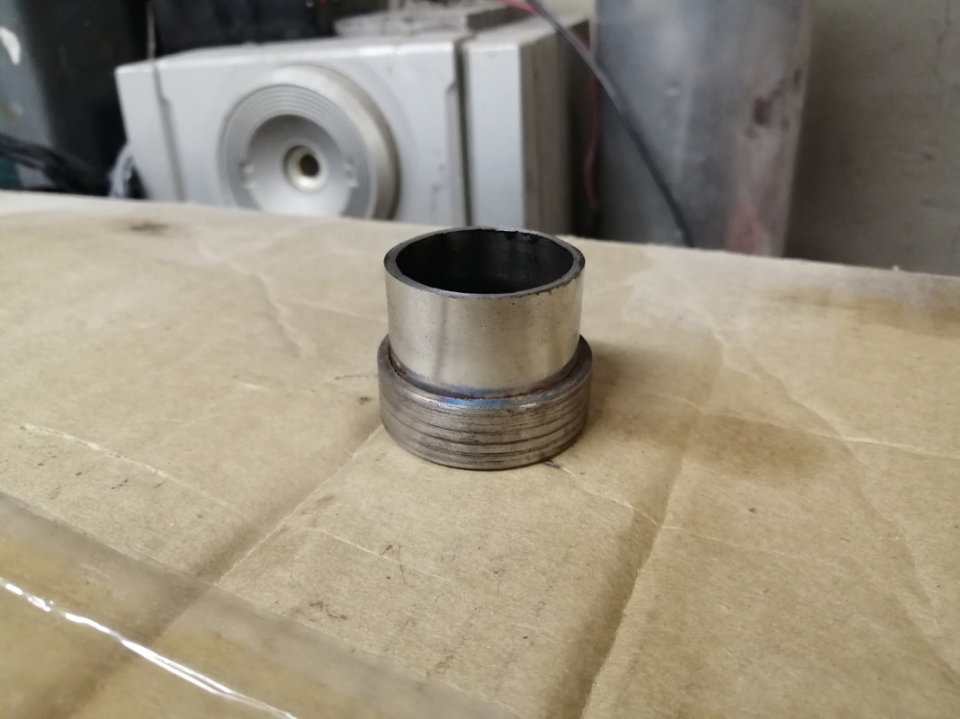

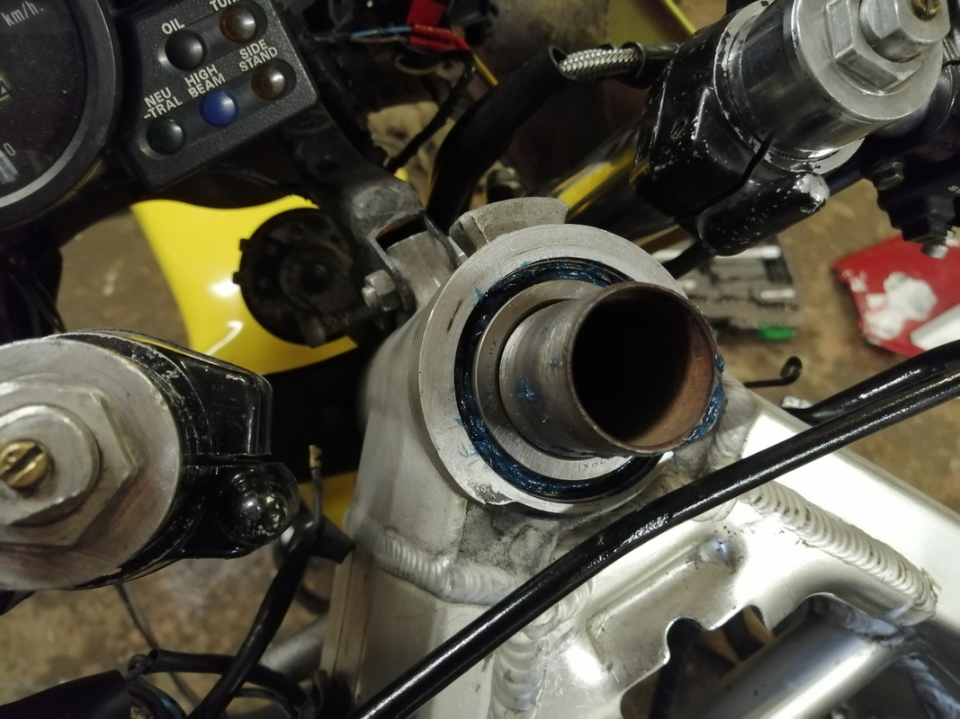

It turned out that a small bushing connecting the elbow to the rear head was missing.

Machined it on a lathe.

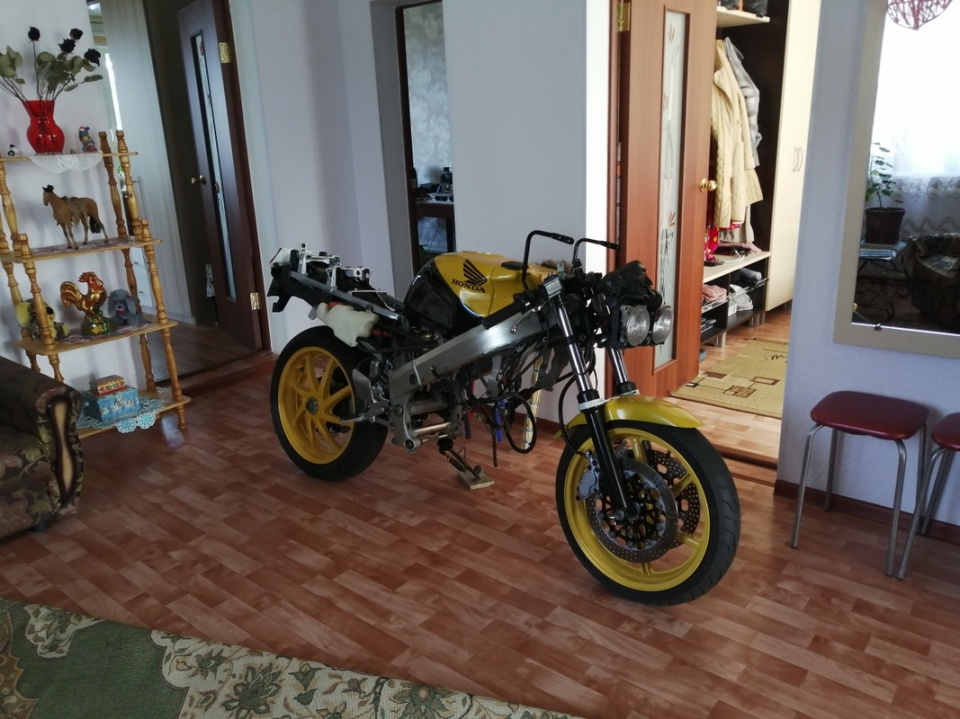

The bike was assembled and finally moved from the house to the garage.

It was time for the suspension:

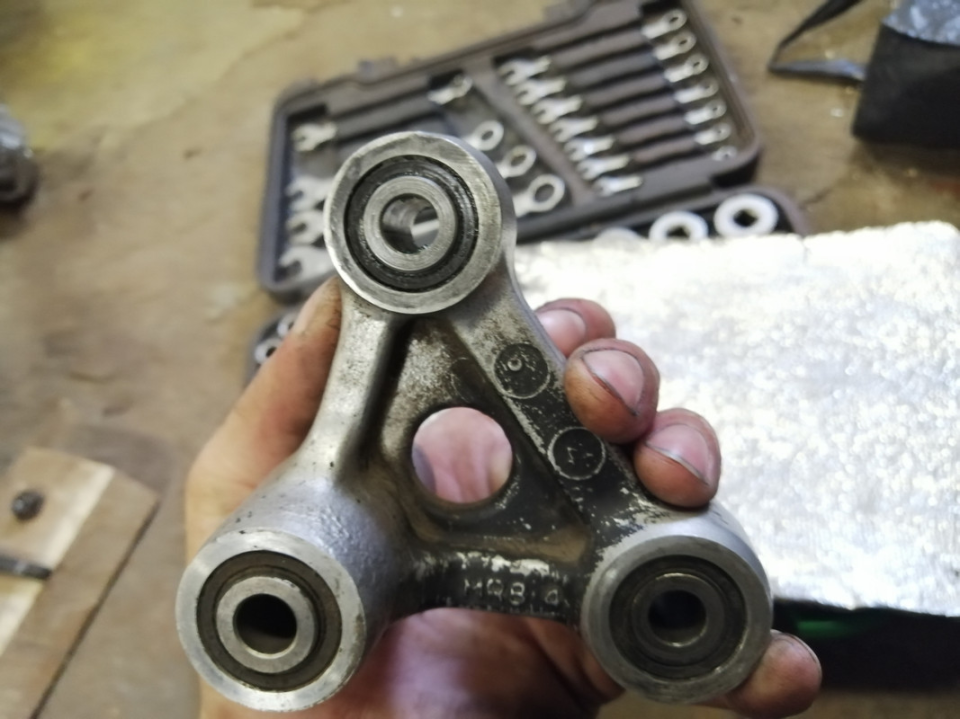

Repacked all the bearings with grease, tightened the linkage with the correct torque.

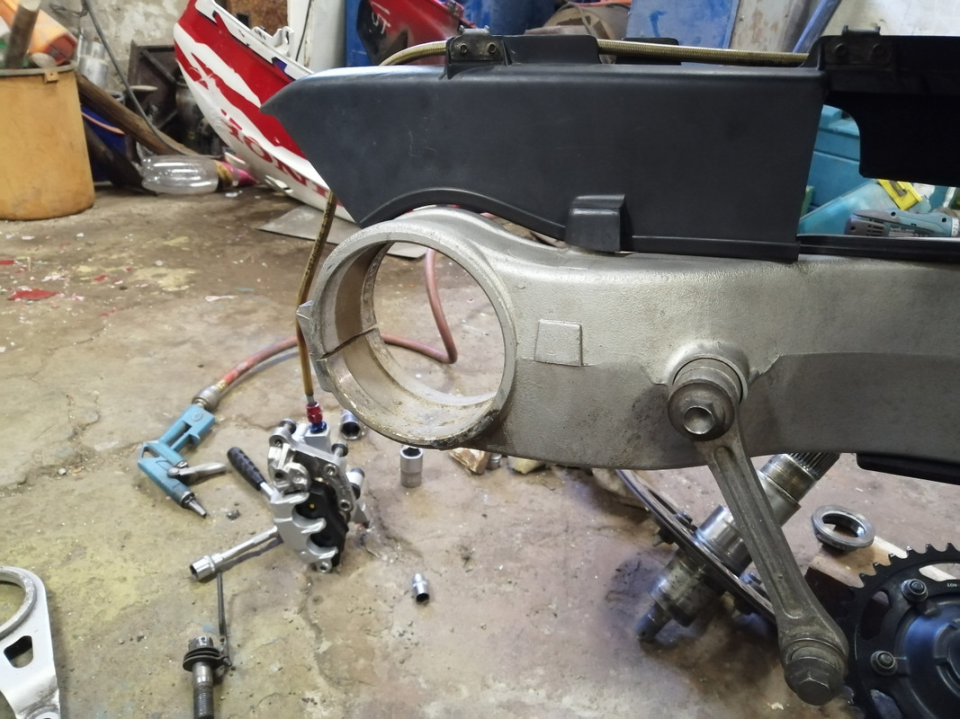

Removed the eccentric, the circlip was very difficult to remove for a reason familiar to all VFR owners:

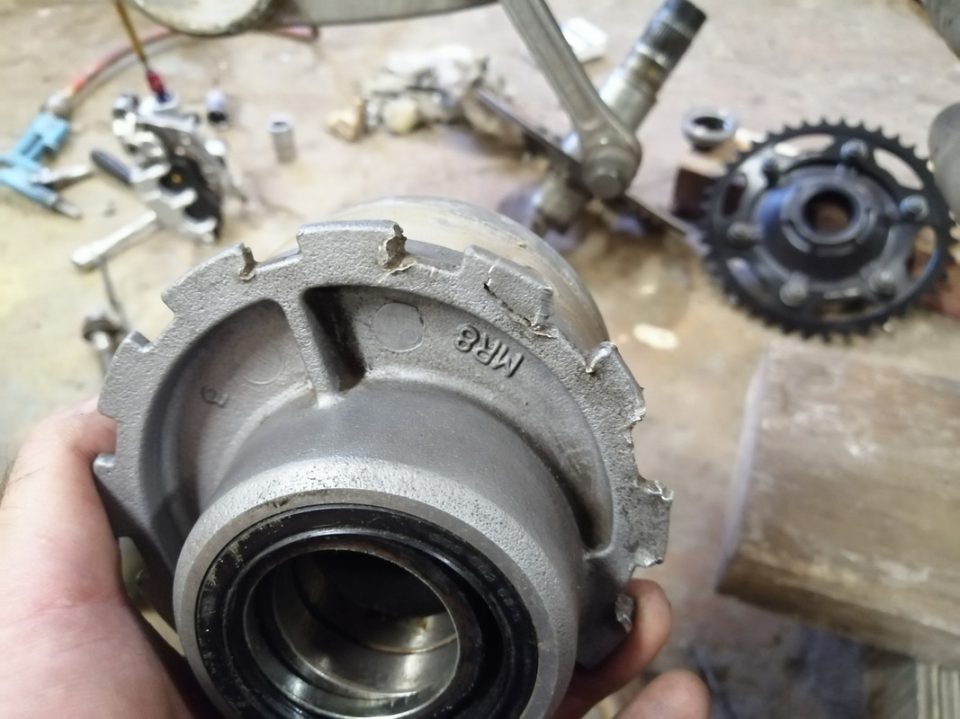

As usual, someone had used a screwdriver in such a way that they bent the tabs inward, the eccentric shifted and pinched the circlip.

Straightened it out as best as I could, I’ll need to make a tool for chain tensioning in the future.
