New Triumph Speed Twin 2022

The 2022 Triumph Speed Twin gets a broad range of updates with a focus on higher performance. Check out the main updates and photos.

Specs

ENGINE

•Type: Parallel twin w/ 270-degree crank
•Displacement: 1197cc
•Bore x stroke: 97.6 x 80mm
•Maximum power: 99 horsepower @ 7250 rpm
•Maximum torque: 82 ft/lbs @ 4250 rpm
•Compression ratio: 12.1:1
•Valvetrain: SOHC, 4vpc
•Cooling: Liquid
•Transmission: 6-speed
•Clutch: Wet multiplate w/ assist function
•Final drive: Chain

CHASSIS

•Frame: Tubular steel w/ aluminum cradle

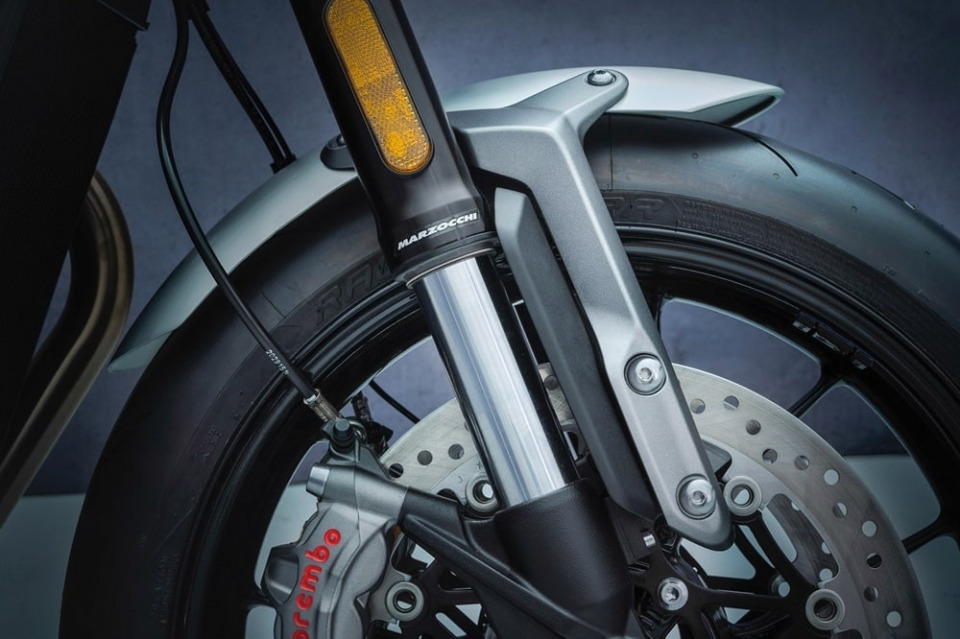

•Front suspension; travel: Non-adjustable Marzocchi 43mm inverted cartridge fork; 4.7 inches
•Rear suspension; travel: Spring-preload adjustable KYB shocks; 4.7 inches
•Wheels: 12-spoke cast aluminum
•Front wheel: 3.50 x 18
•Rear wheel: 5.00 x 17
•Tires: Metzeler Racetec RR
•Front tire: 120/70 x 17
•Rear tire: 160/60 x 17

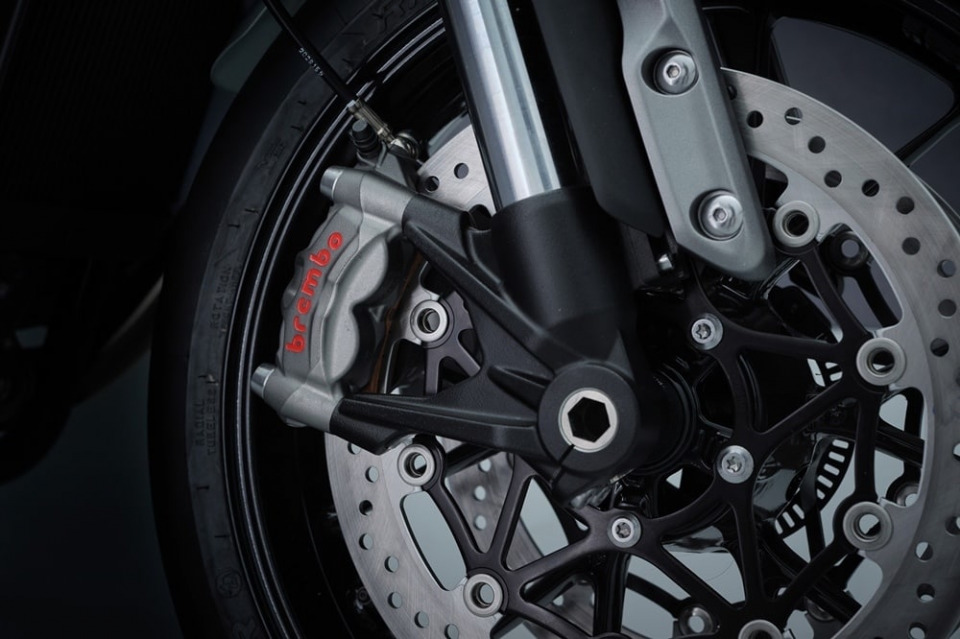

•Front brakes: 320mm discs w/ Brembo M50 4-piston monobloc calipers
•Rear brake: 220mm disc w/ Nissin 2-piston floating caliper
•ABS: Standard

DIMENSIONS and CAPACITIES

•Wheelbase: 55.5 inches
•Rake: 22.3 degrees
•Trail 3.5 inches
•Seat height: 31.5 inches
•Fuel capacity: 3.8 gallons
•Estimated fuel consumption: 42 mpg
•Curb weight: 476 pounds
•Colors: Jet Black; Red Hopper (+$300); Matt Storm Grey (+$300)

2022 Triumph Speed Twin Price: From $12,500 MSRP
