Rear Brakes - Tiger Cub T20CA
After refurbishing the front brake plate and replacing the springs and shoes I was confident that the rears would not pose a problem.

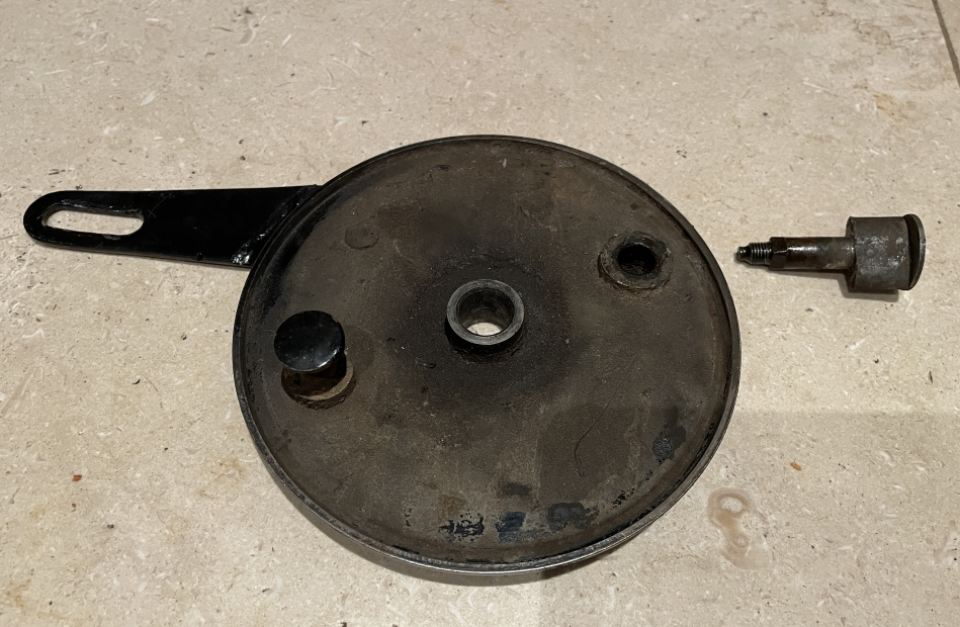

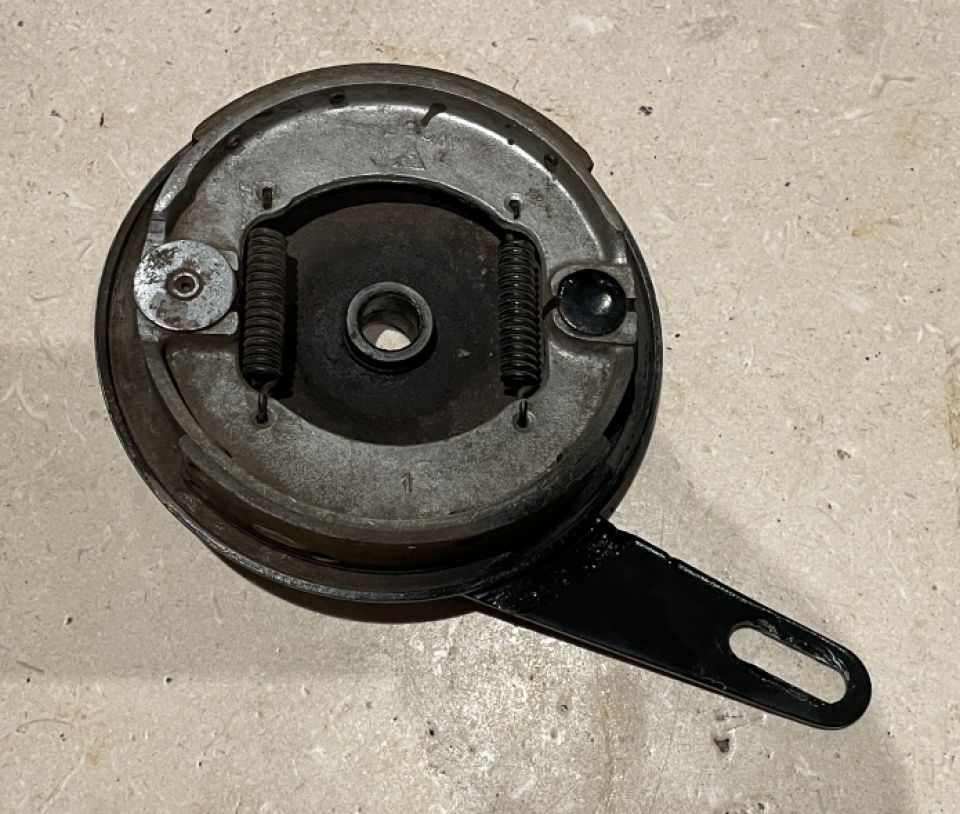

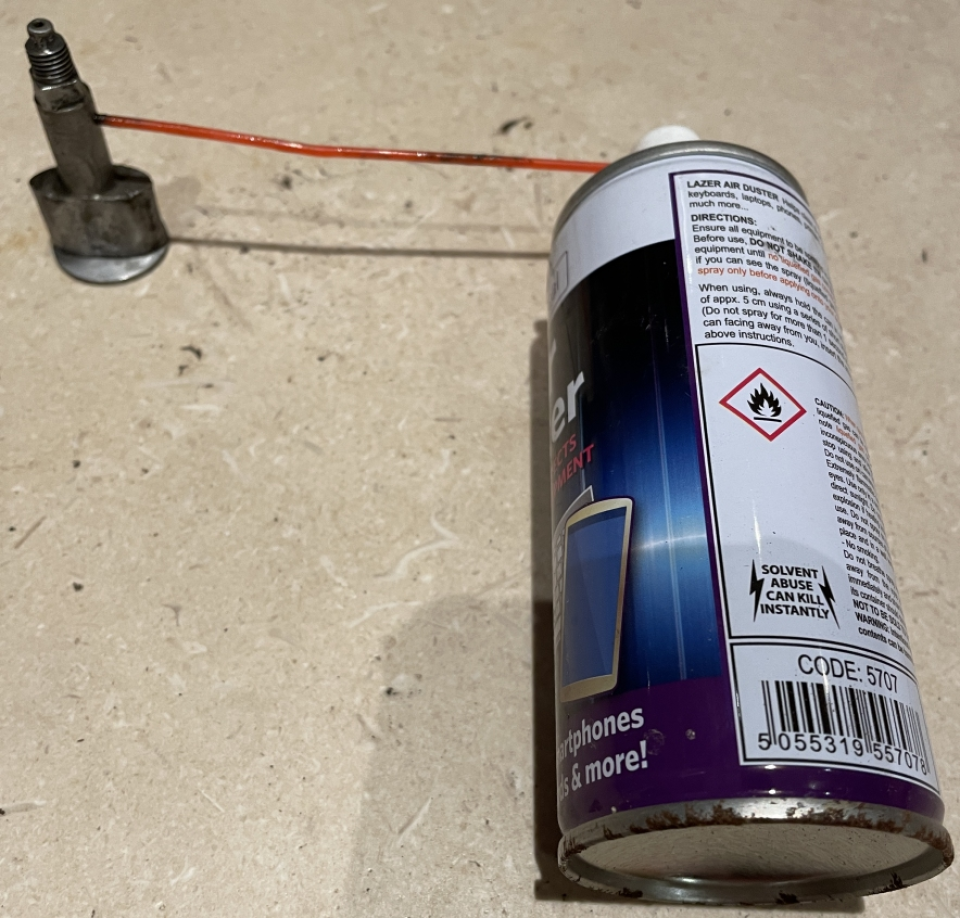

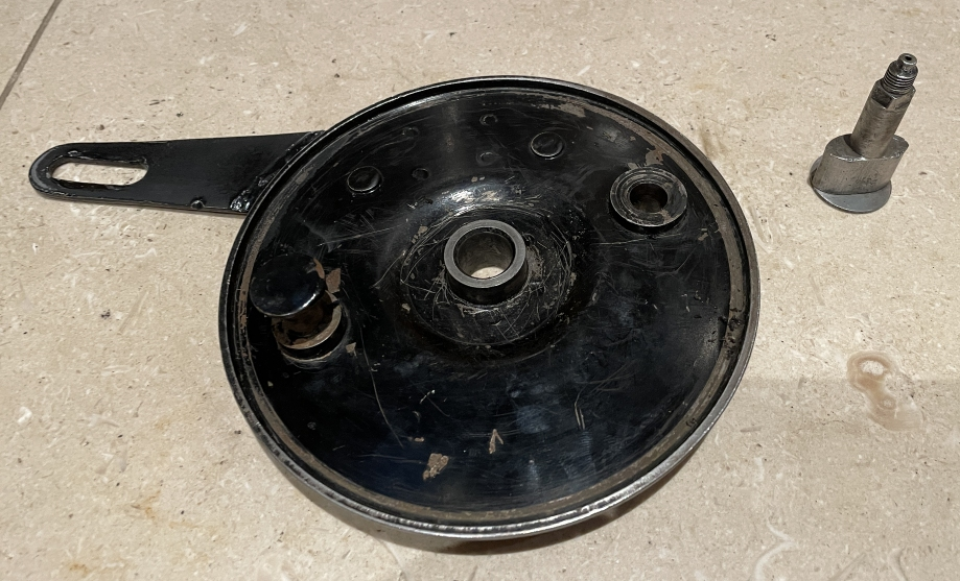

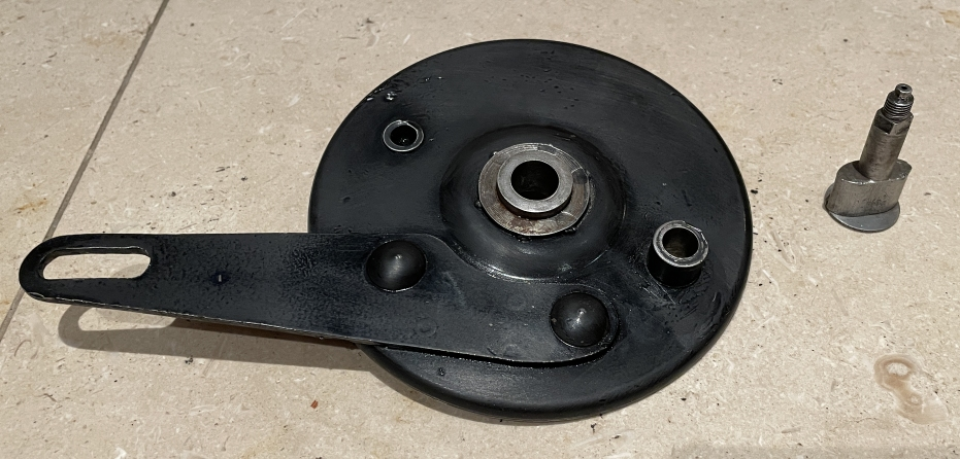

This was the case and the rear brakes were easily removed and all the components cleaned, including the grease channel inside the cam using isopropyl alcohol, tooth pics and compressed air.

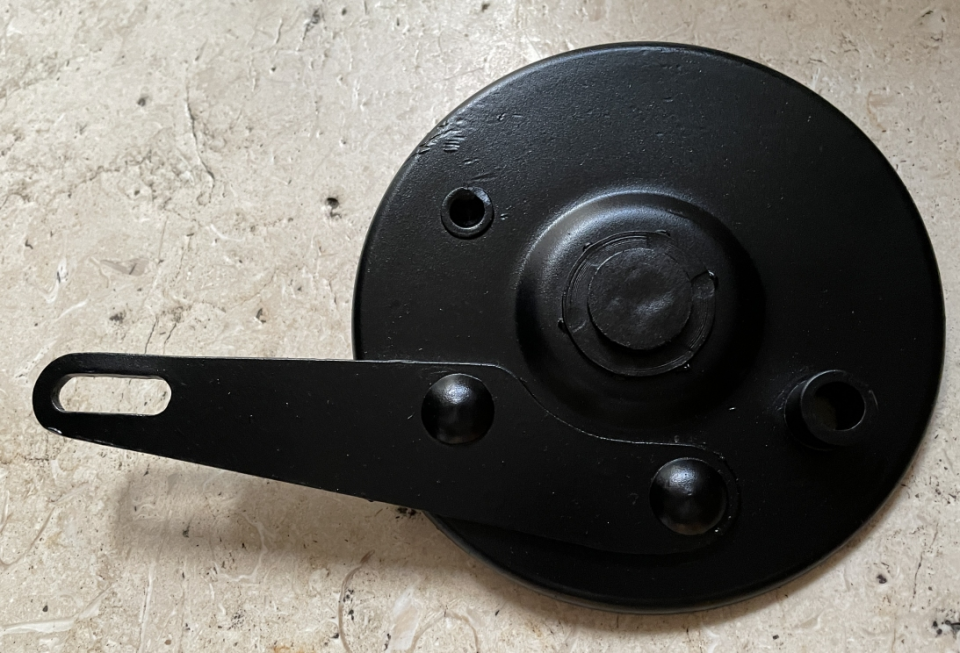

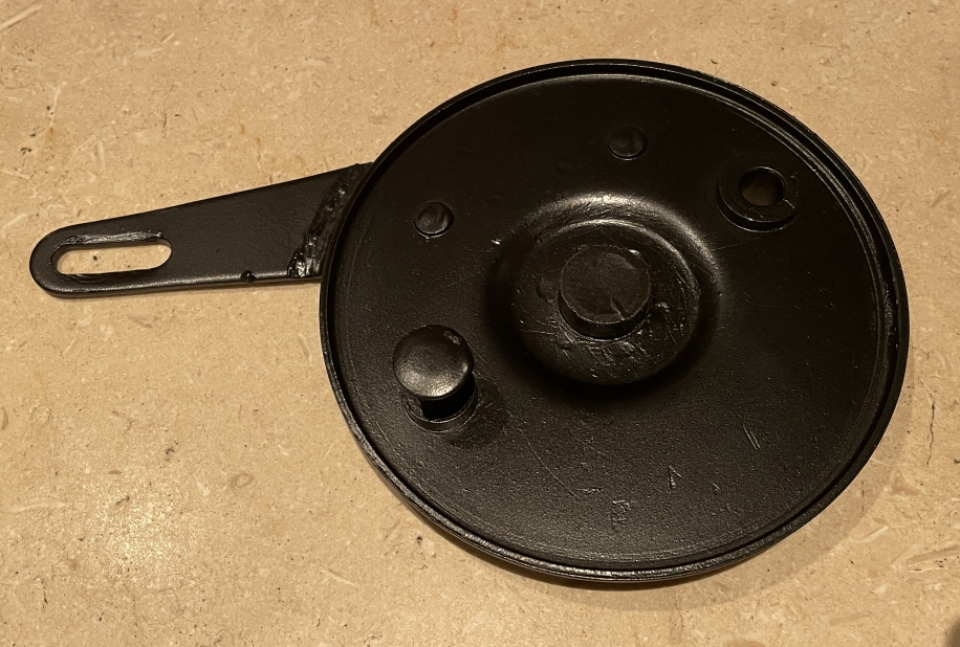

The brake plate was sprayed as the rear plate isn't chrome plated.

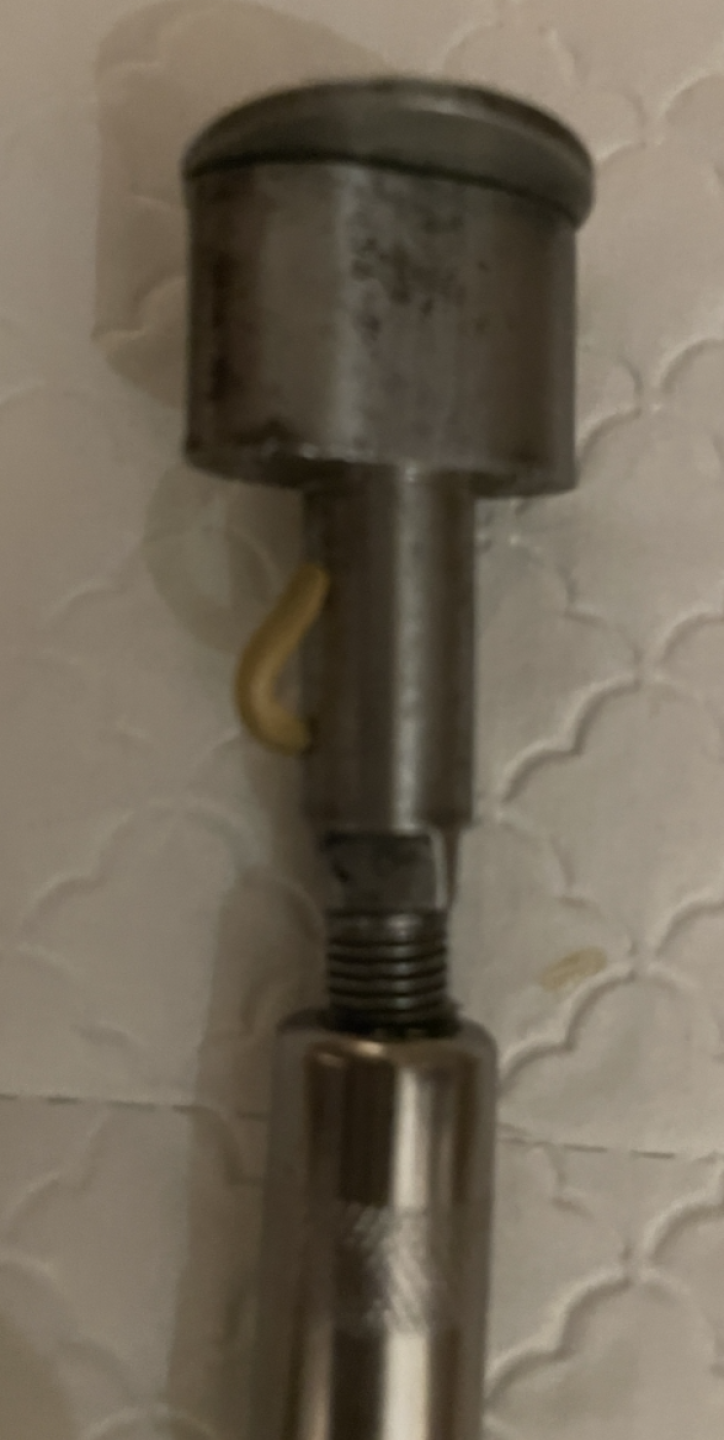

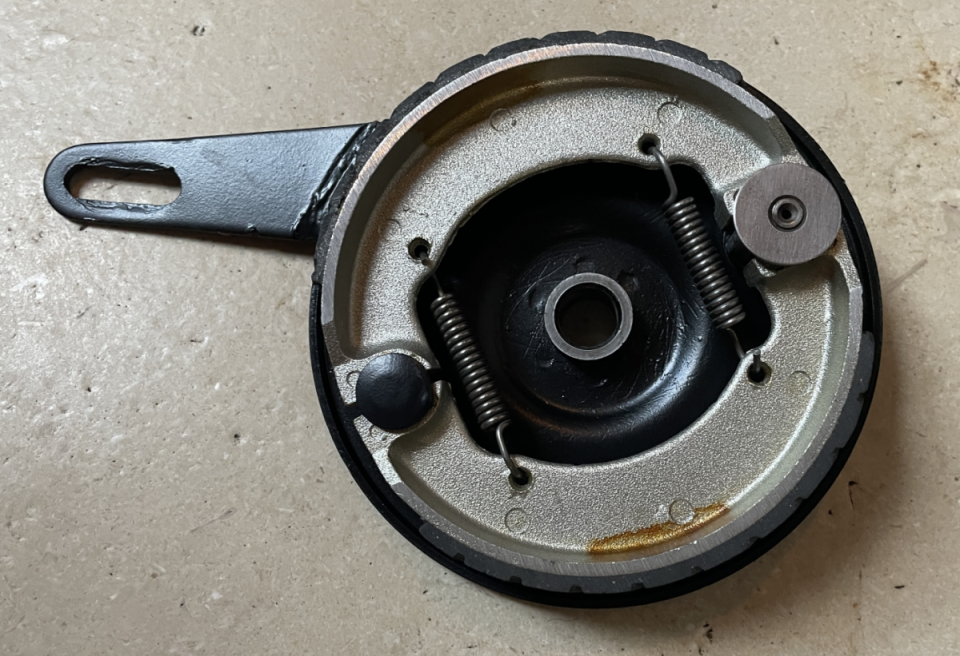

The cleaned cam was greased, replaced and the new grooved shoes were fitted using my home made spring puller.
