Foot Rests

The forward footrests on my Daytona are fixed, while the rear (passenger) ones fold up to be vertical when not in use.

The rear pegs mount to the bracket that supports the mufflers. Since this bike was not a US export model, these brackets are different than those found in the US parts manuals.

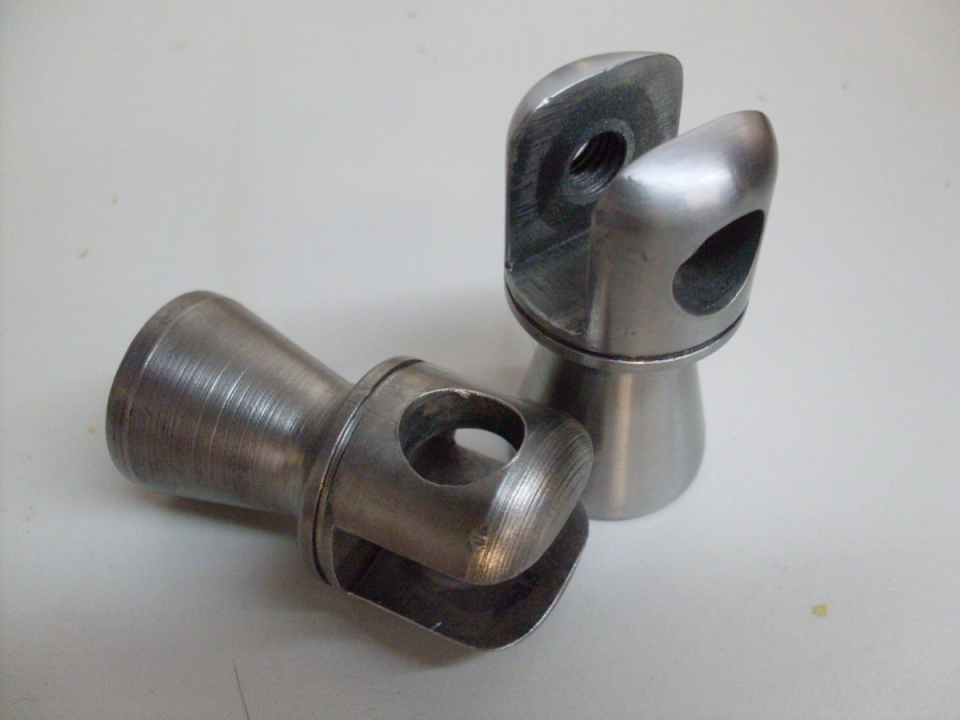

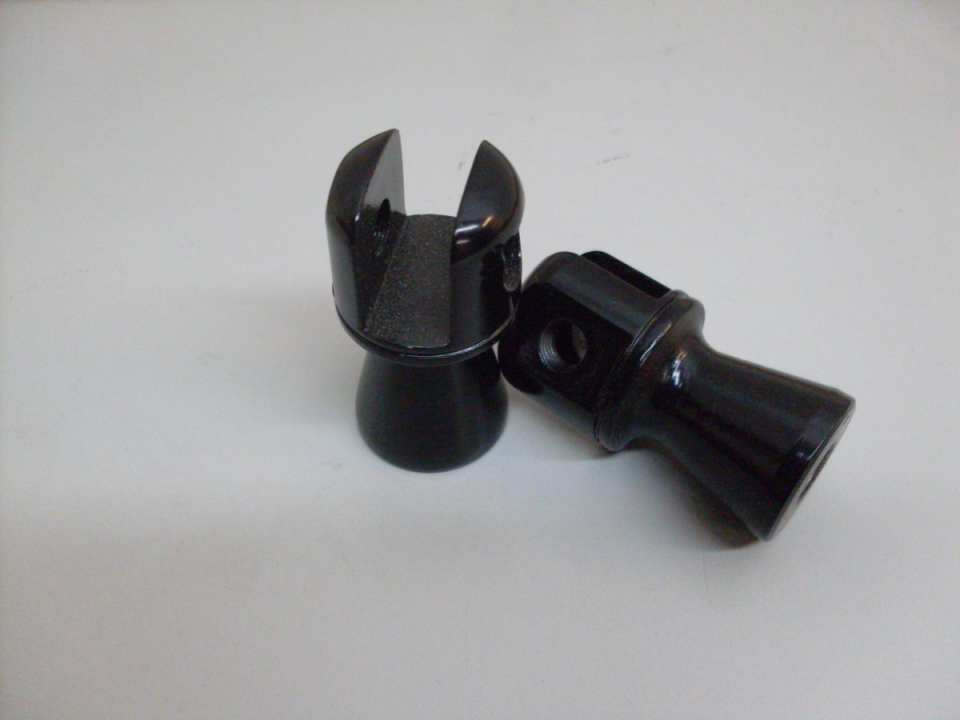

The footrest "hangers" (the fixed parts that mounts to the muffler bracket) are simple one-piece parts that will look much better painted if they are smoothed out a little bit.

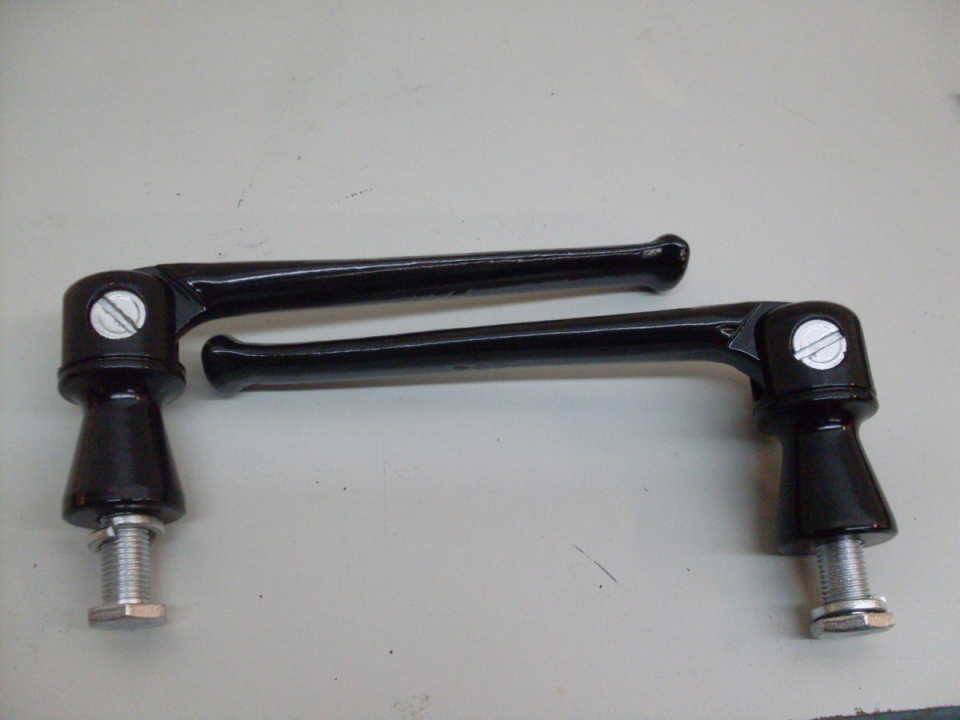

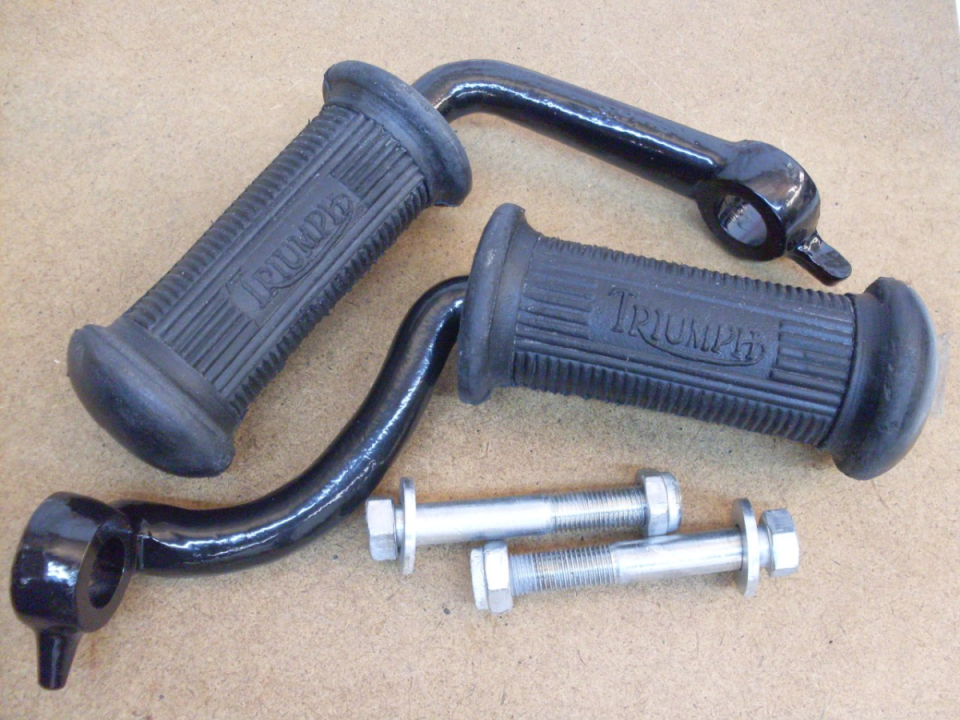

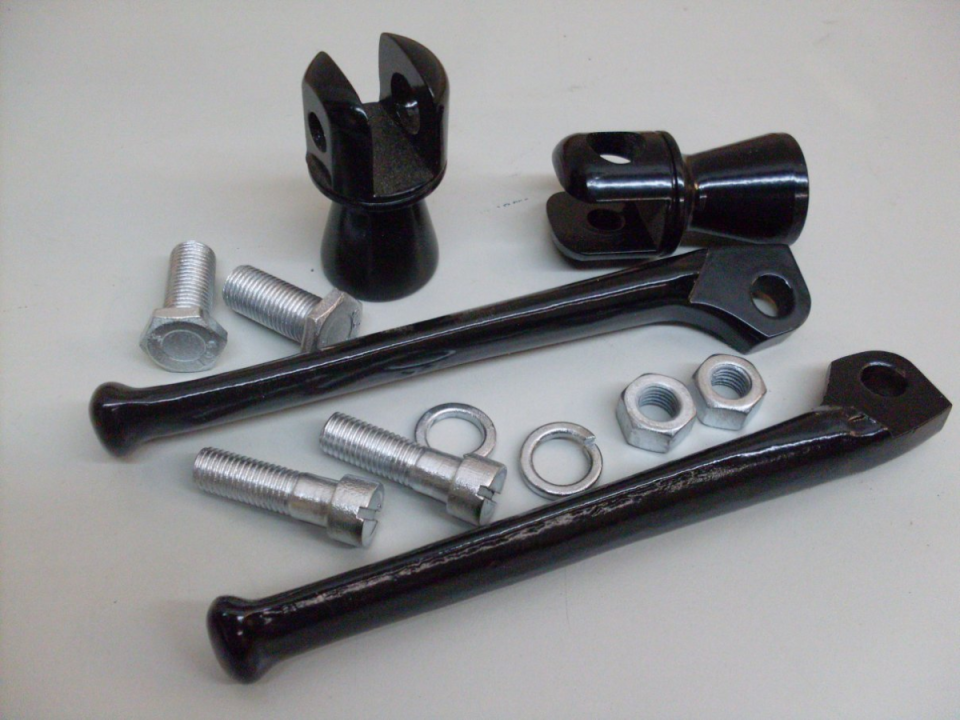

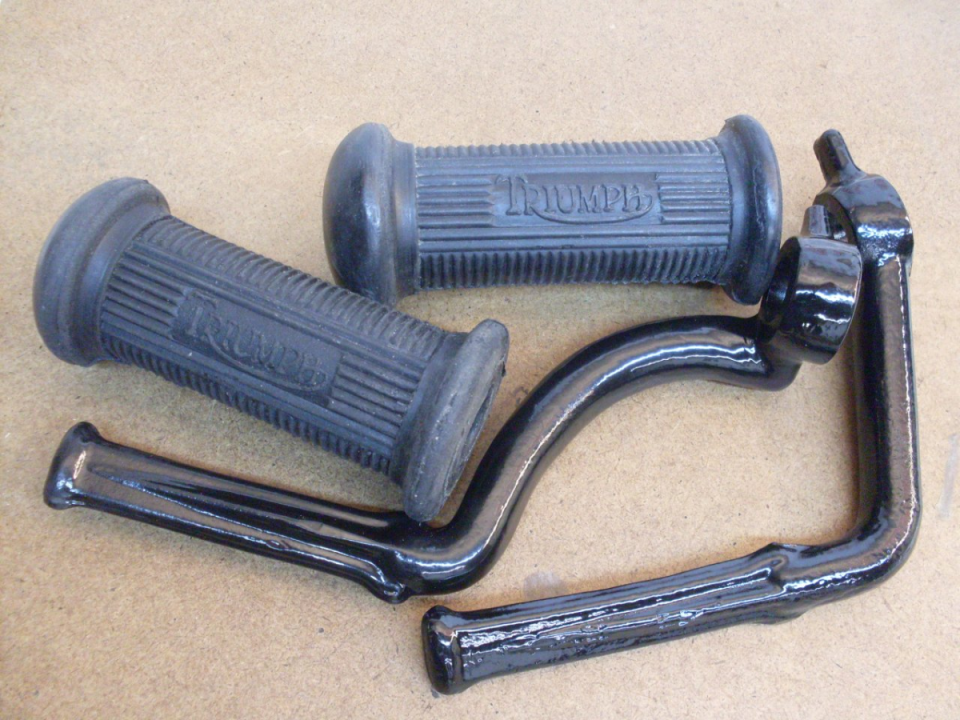

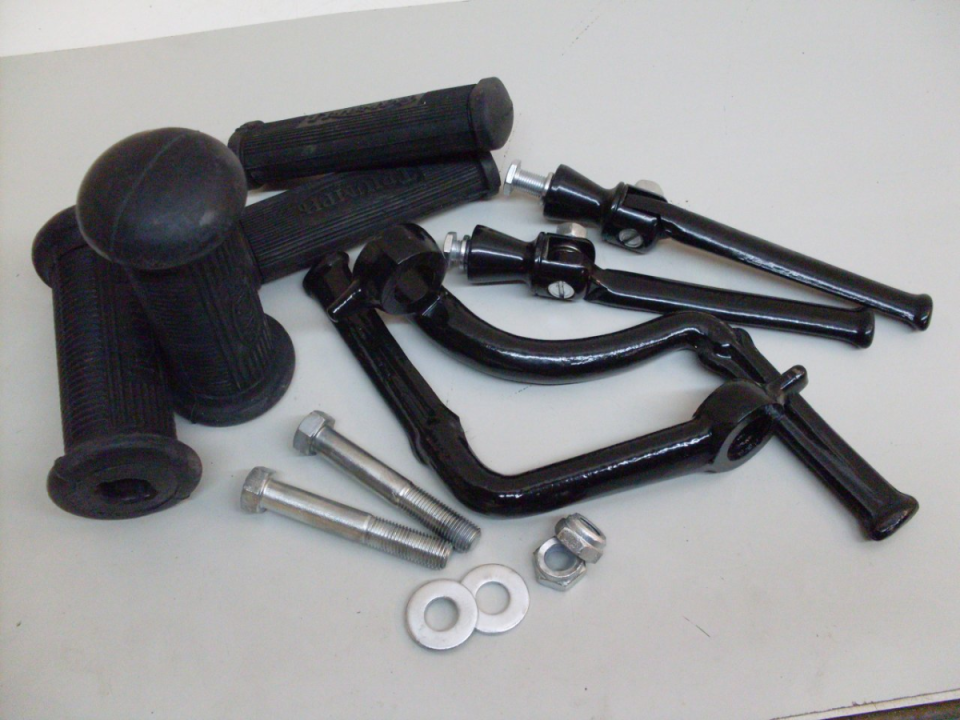

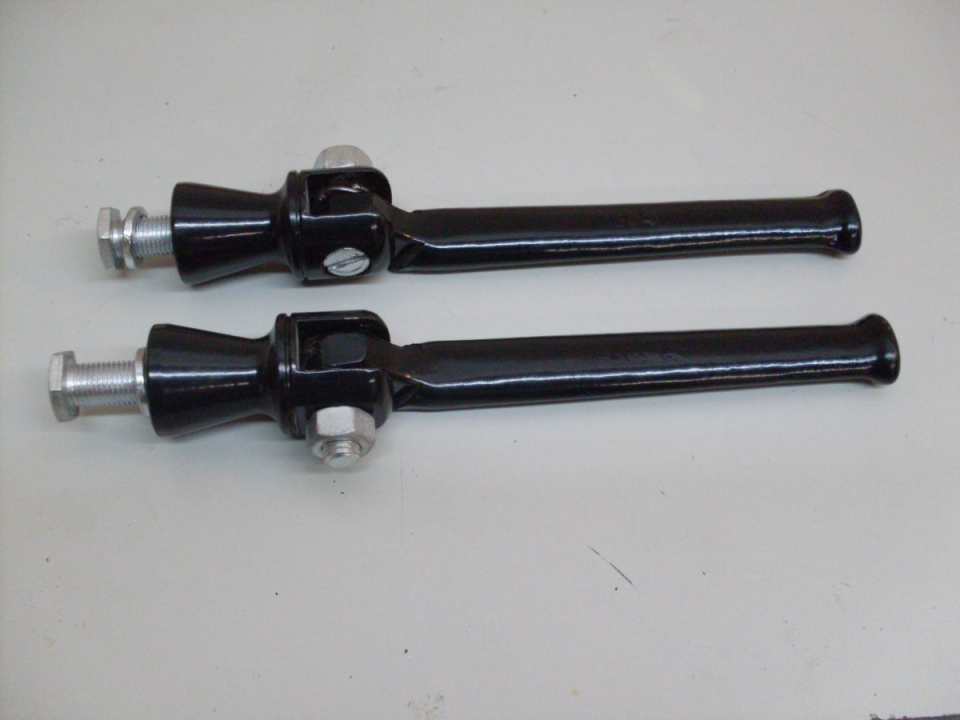

  The rear footrests parts with original hardware replated, and the assembled footrests.  On the right, the rubbers are shown with the front footrest parts.  The rubbers go on easier with some rubber lubricant.  Liquid soap works well, too.  I wasn't very impressed with the quality of the aftermarket rubbers.  The rubber seems solid, and they fit OK, it's just that the surface finsh and detail could have been better.

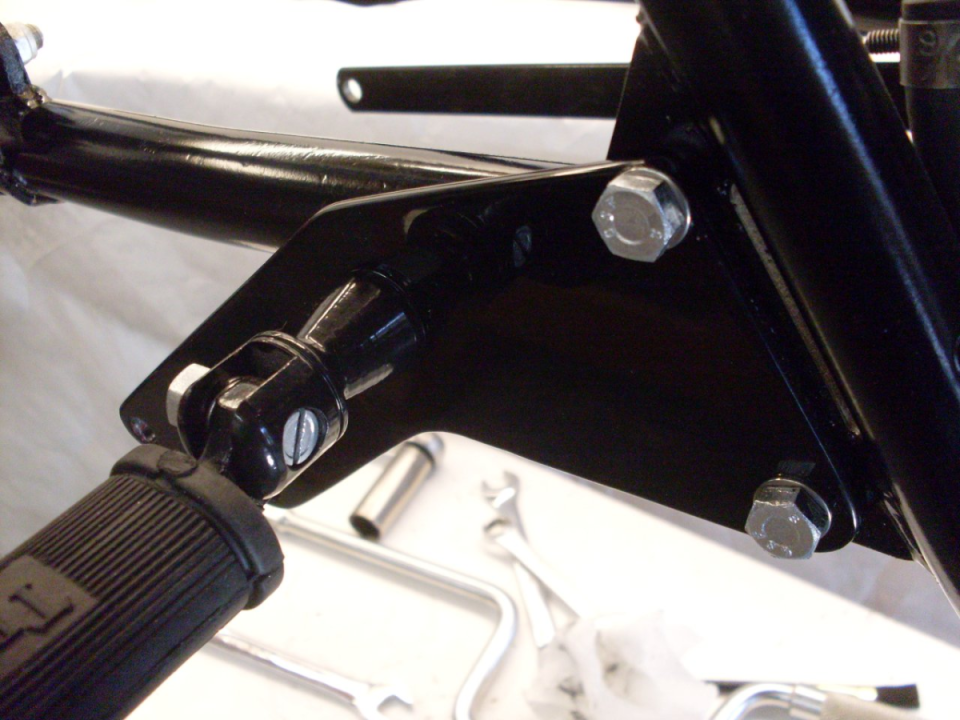

Rear footrests mounted to the muffler brackets and installed to he frame:

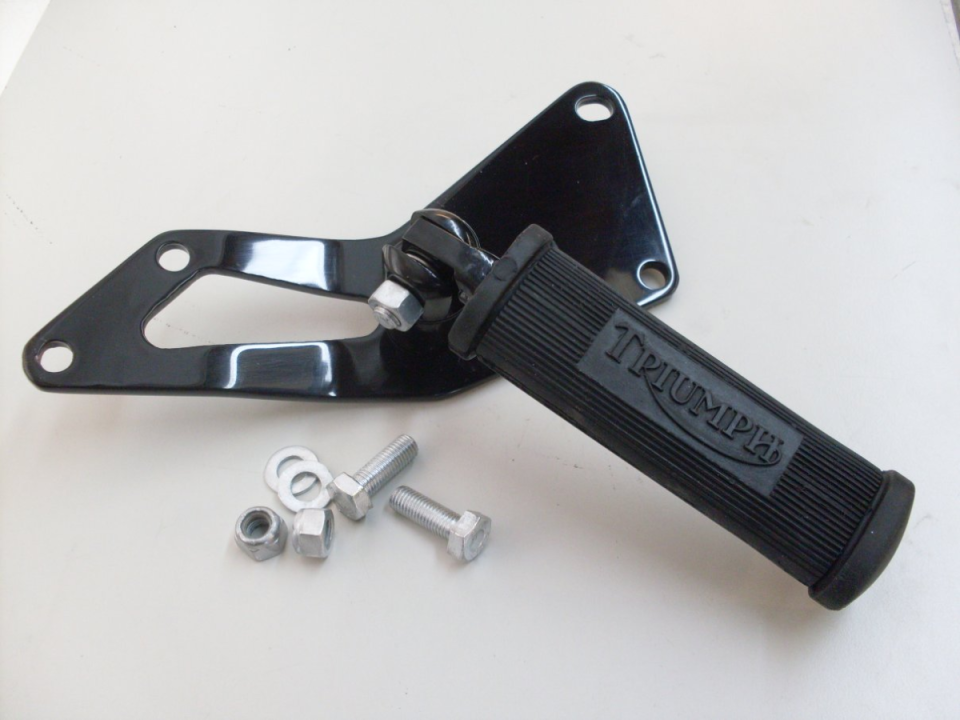

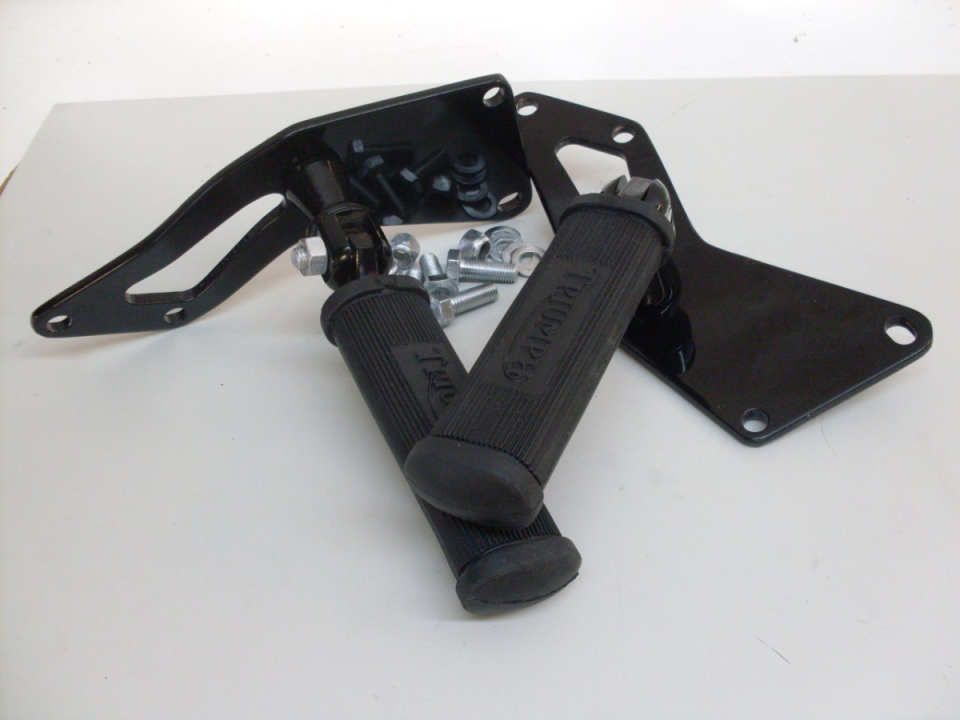

The front footrests are simpler:
