The project

As I have said in the introduction to this blog, I fully drawn my project before I start. I also listed as best I could all the elements and accessories that I would have to produce and / or purchase.
Today the changes are far from over but I will lift the veil revealing you some drawings of the future bike.

It starts with a "purpose."

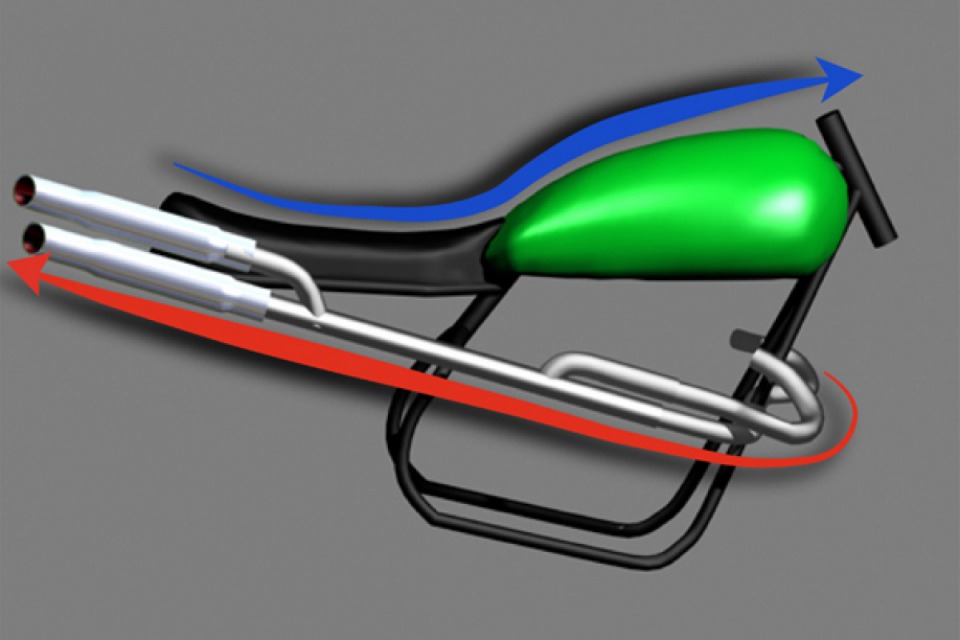

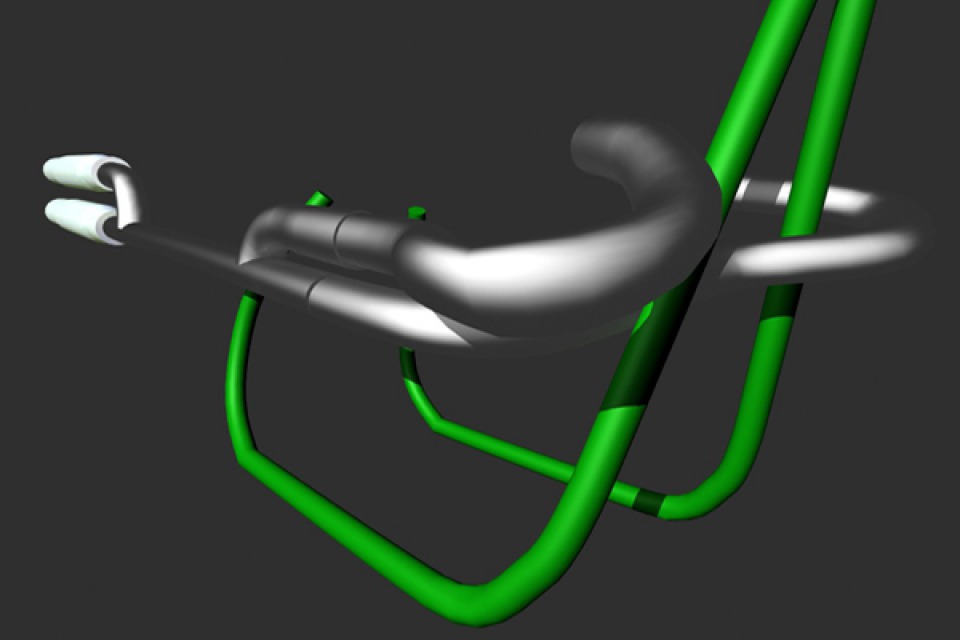

One of the most visually significant elements is the exhaust line. It conditions the whole dynamics of the bike. Desiring to achieve a 2 in 1 2 I had to organize the "slalom" between the frame tubes at the exit of the cylinders.

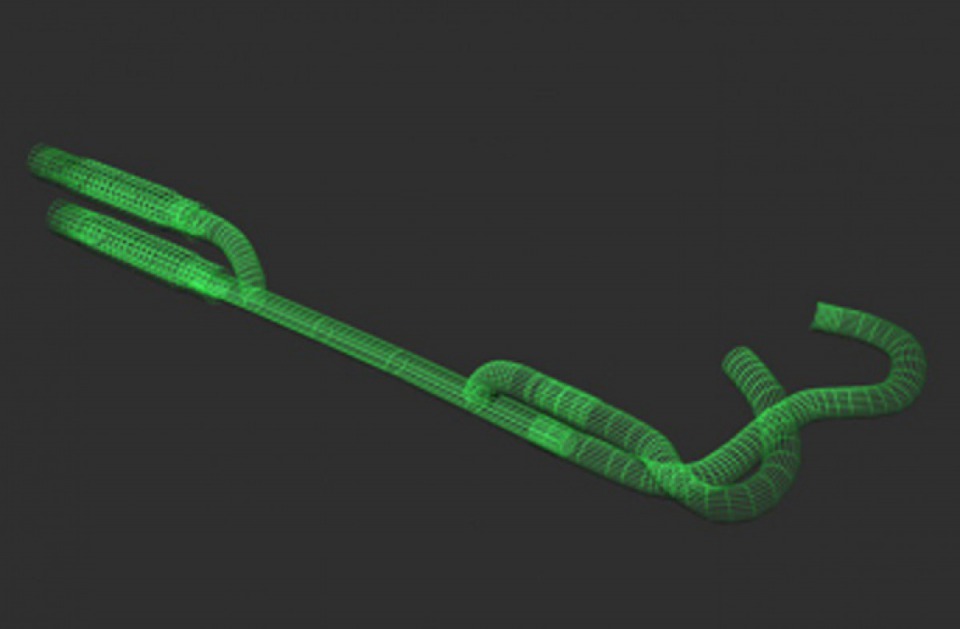

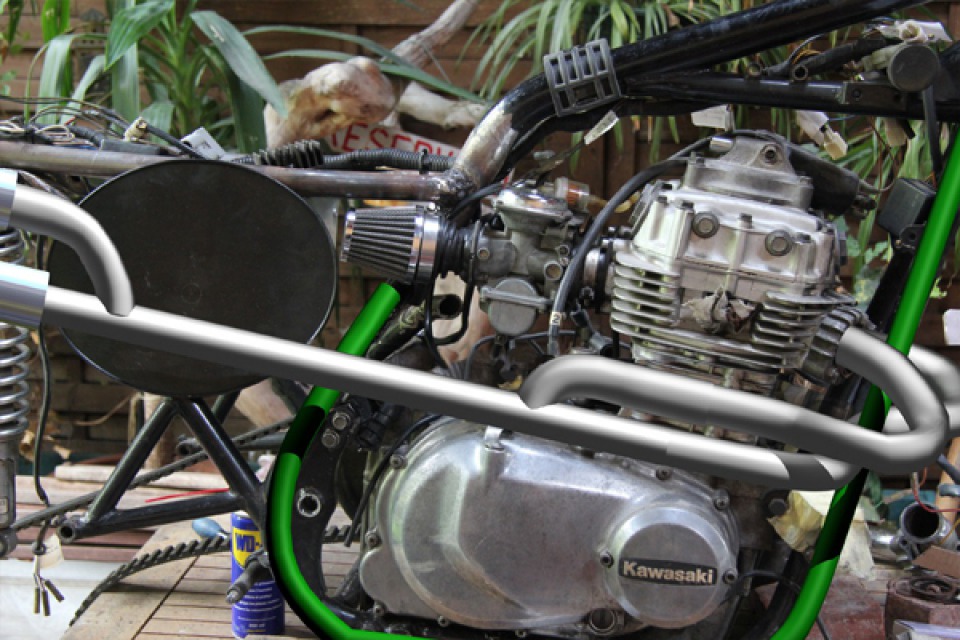

I, before I started this work, my idea modeled in 3D to see what would happen.

This is still the best way to know where you are going.

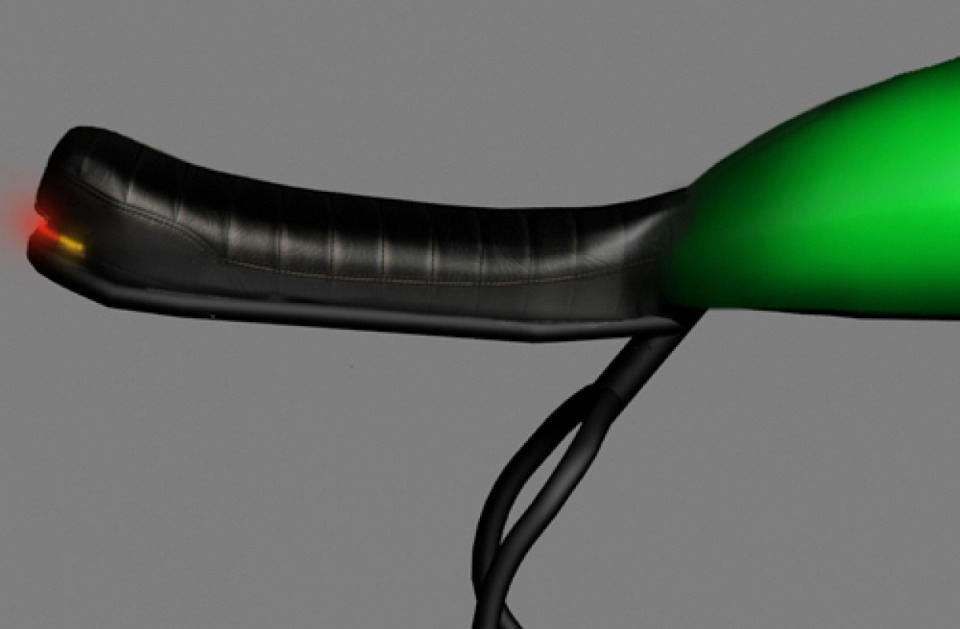

It is with this same technique as I defined the saddle relative to the reservoir.

I visualized perfectly well what I have to achieve before entrust a saddler.

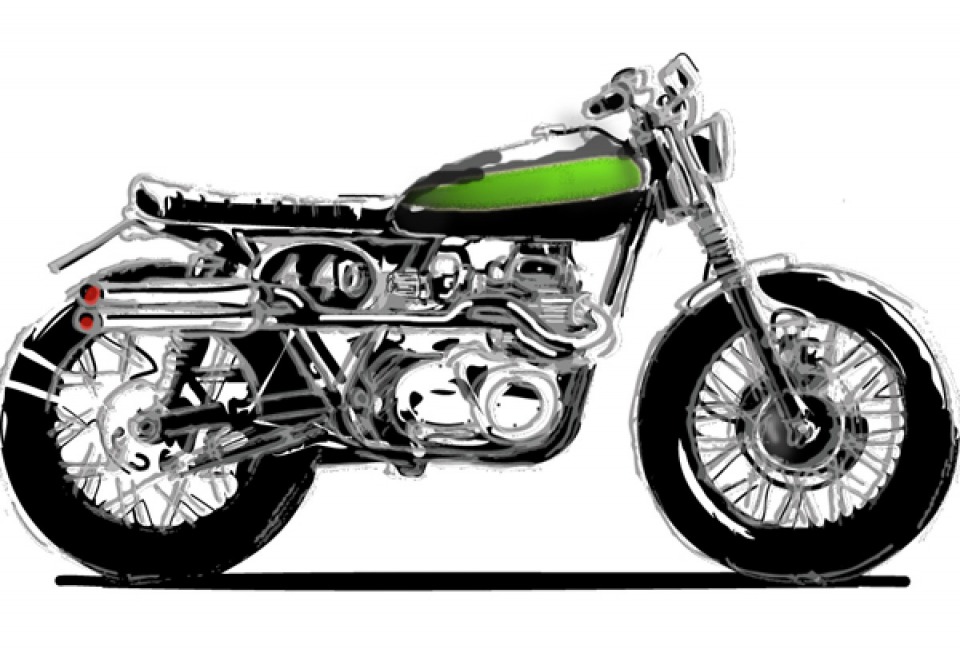

And realize the harmony of lines of my project.
