1973 Honda CB350G - motorcycle building project part 04

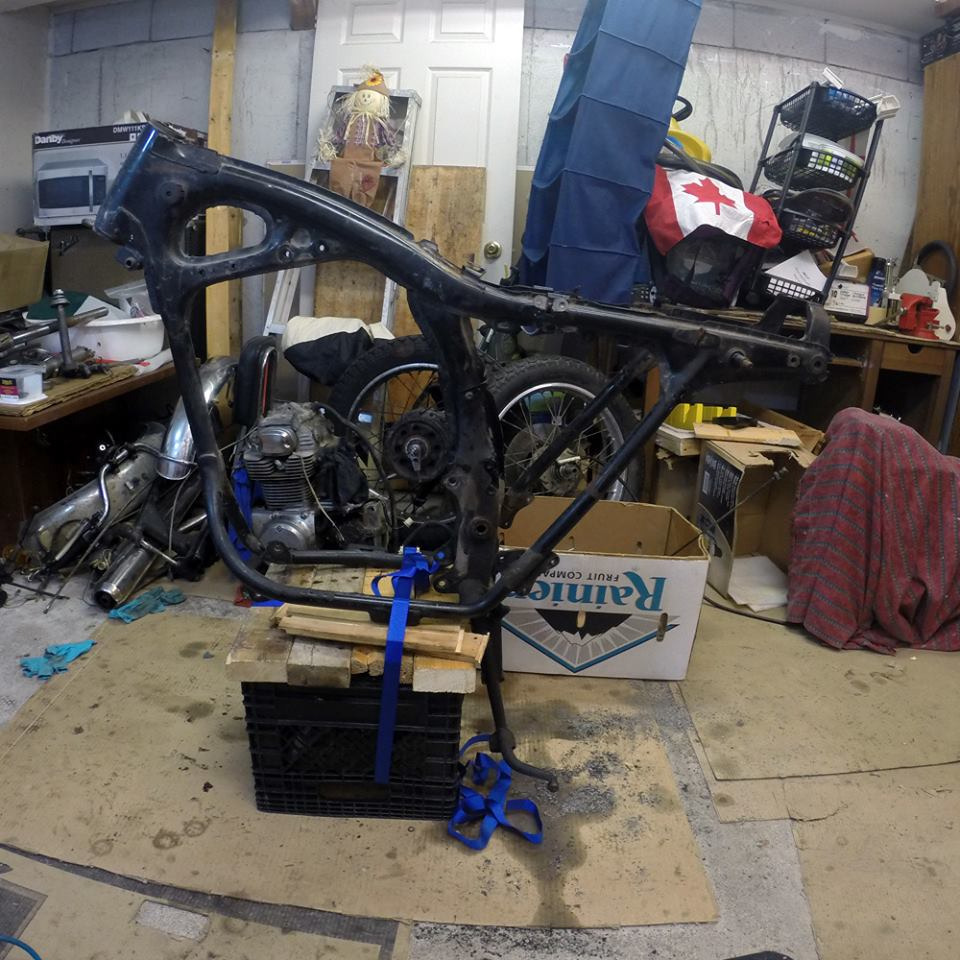

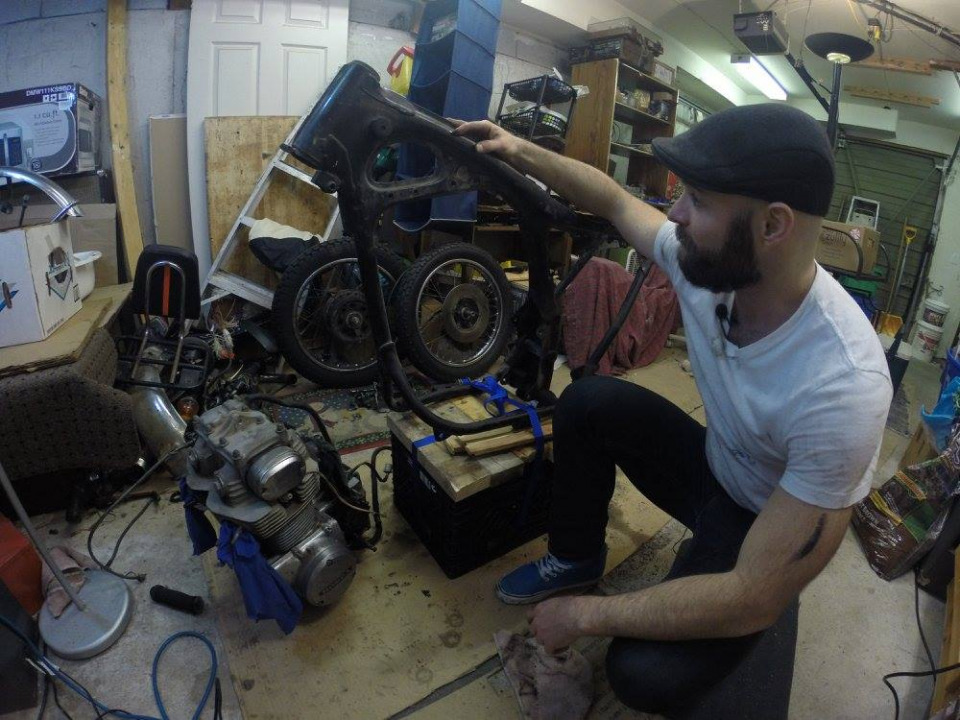

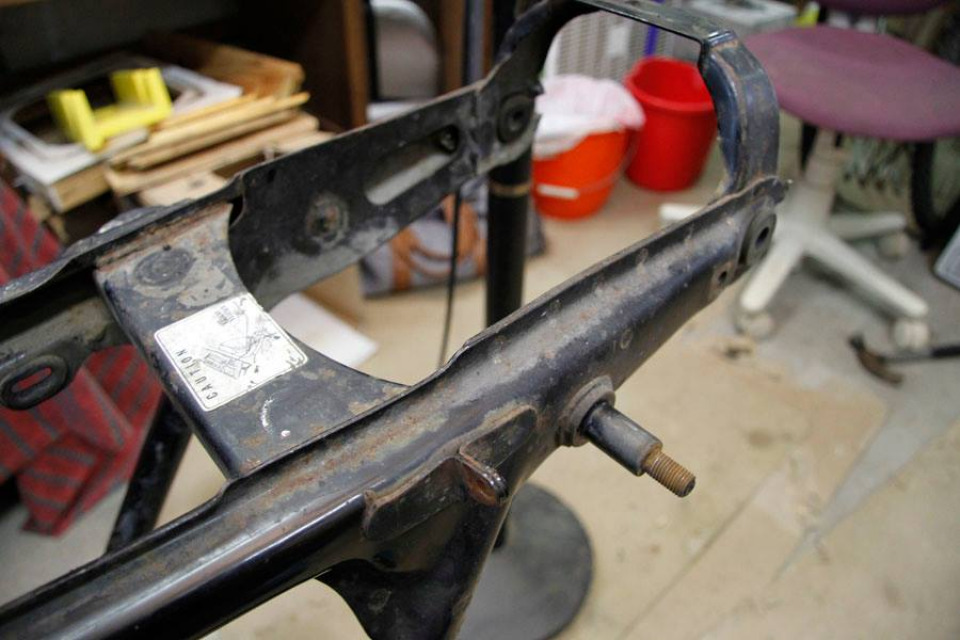

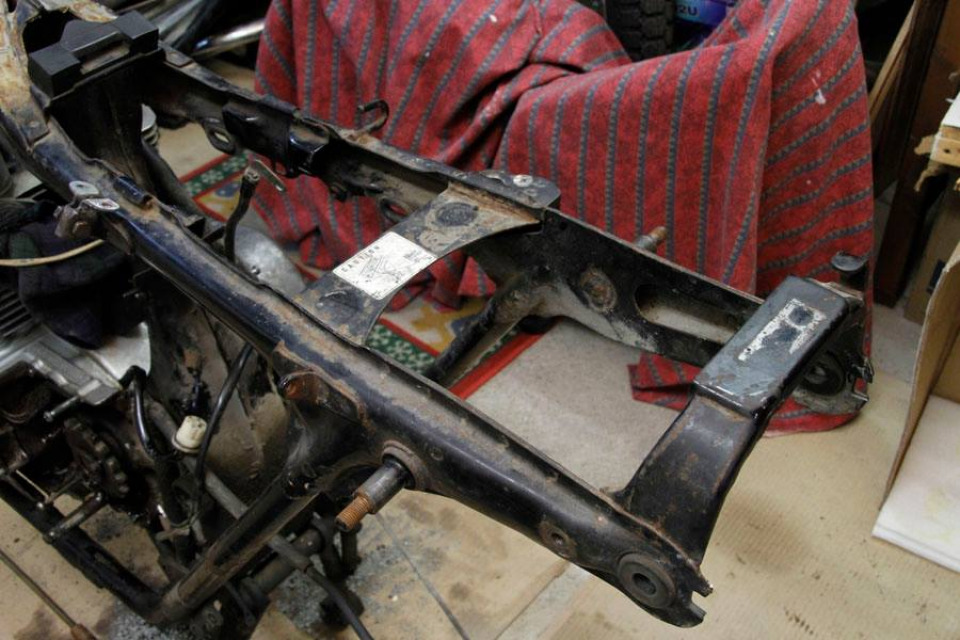

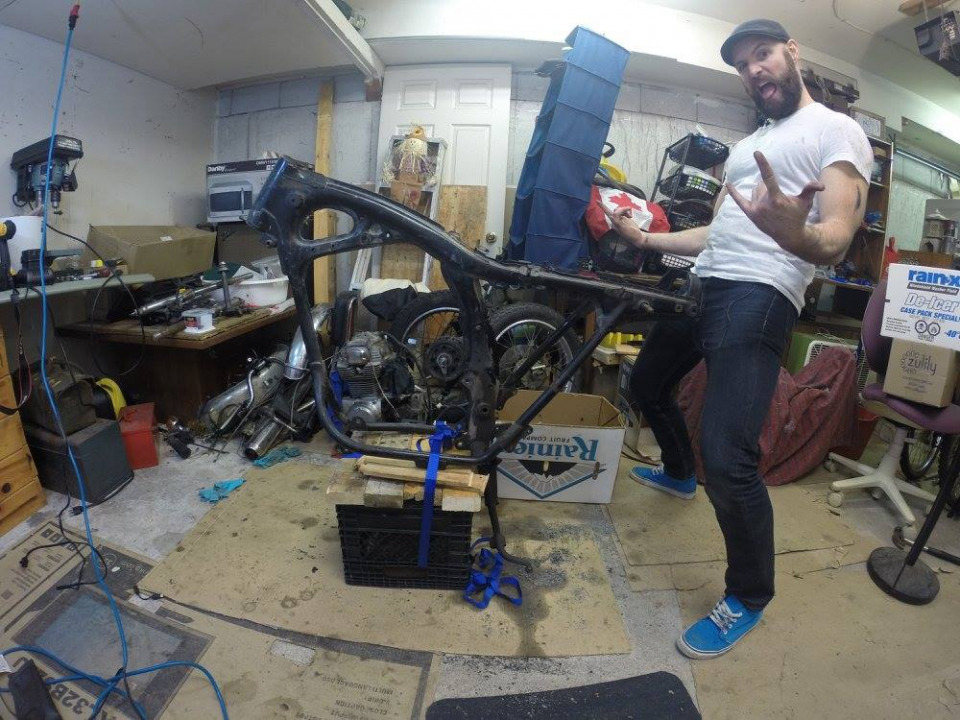

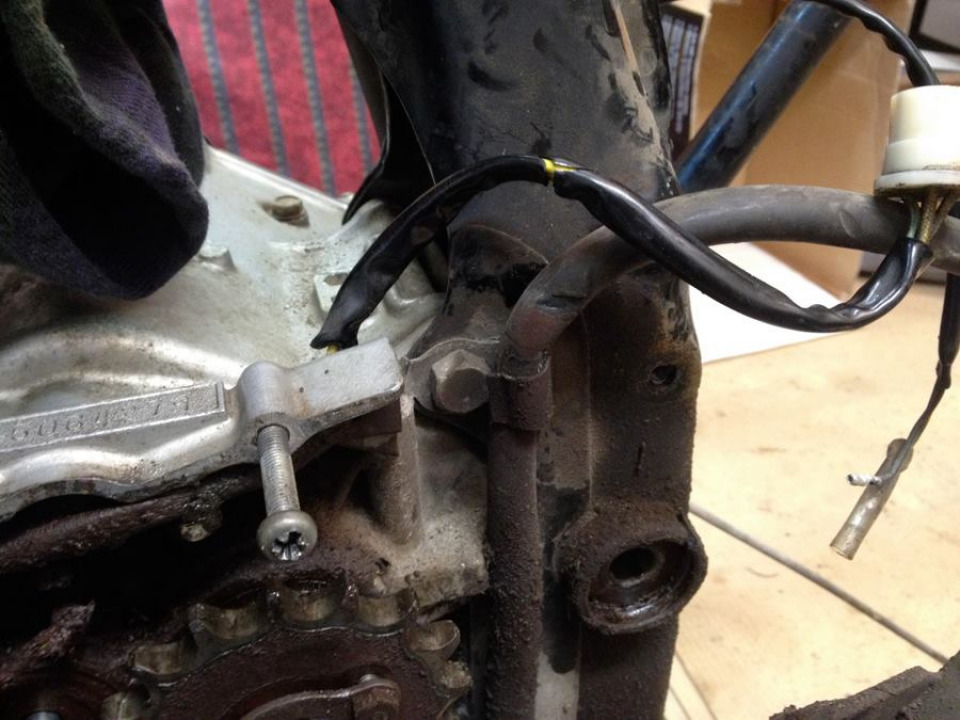

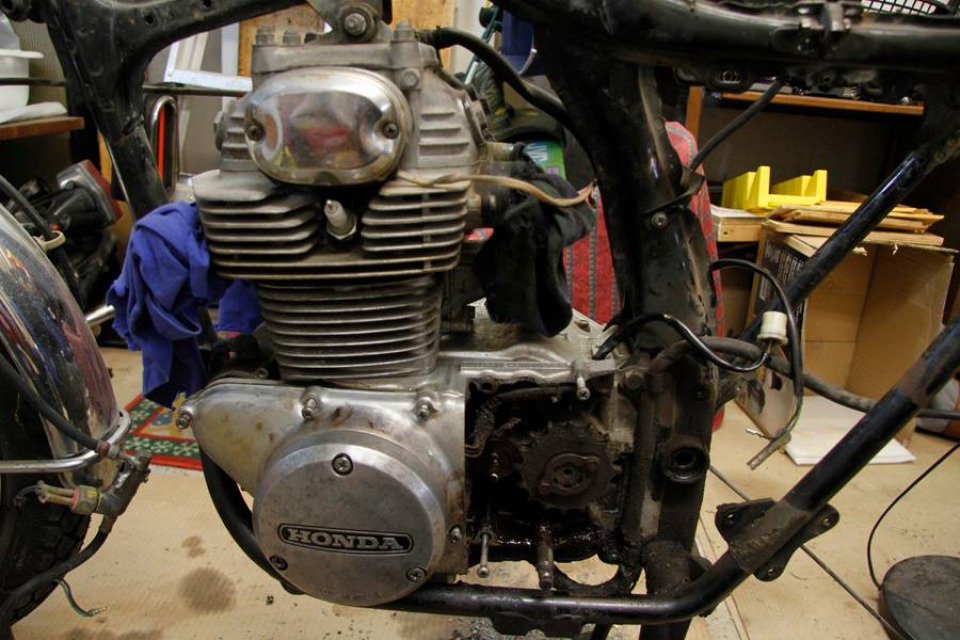

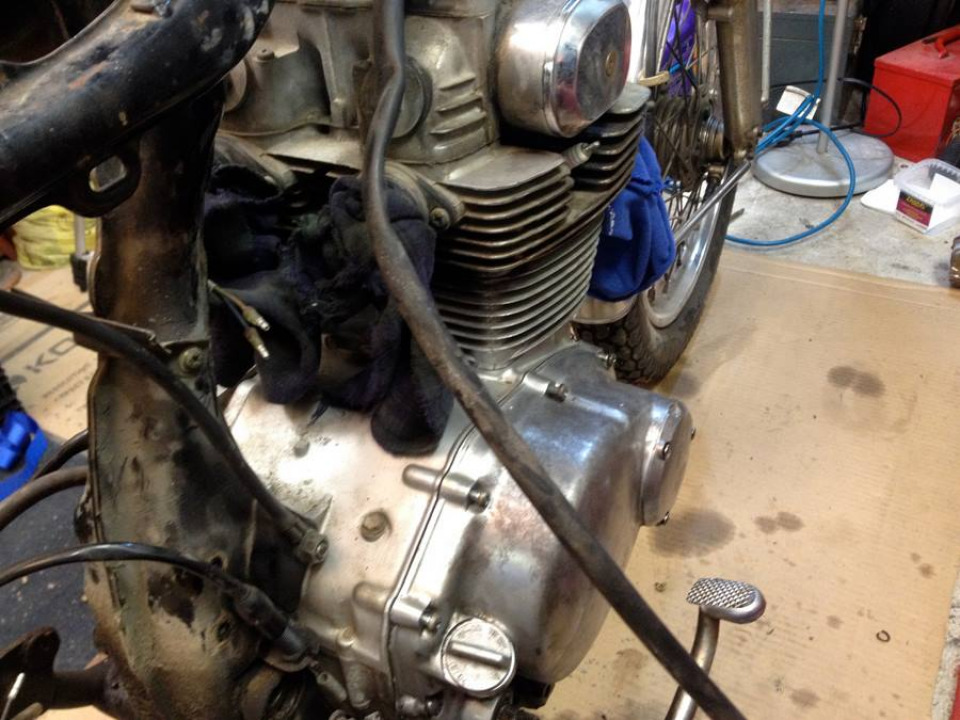

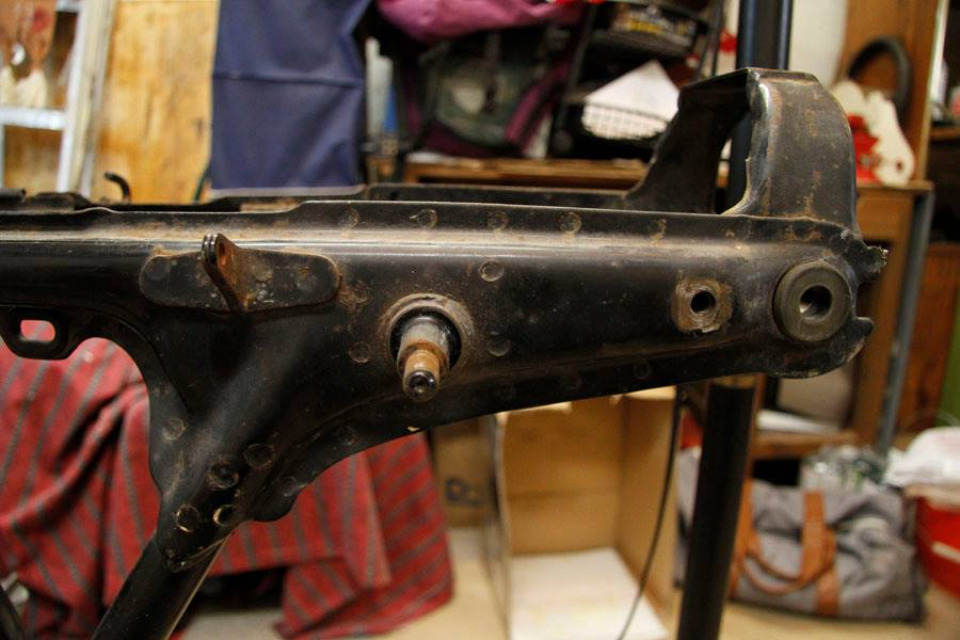

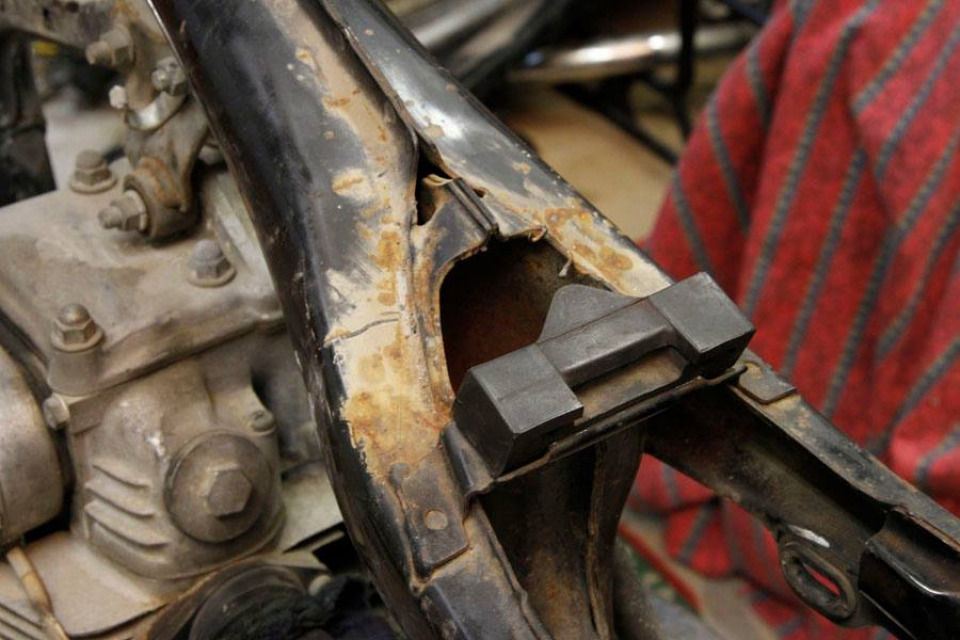

Finally finished the teardown by this point. I took a lot of pictures for reference so I can remember how to put things back the way they came. I also needed a lot of photos of the rear end so I can get some advice and where it needed to be cut in order to fab a newer modern seat.
