1973 Honda CB350G - motorcycle building project part 07

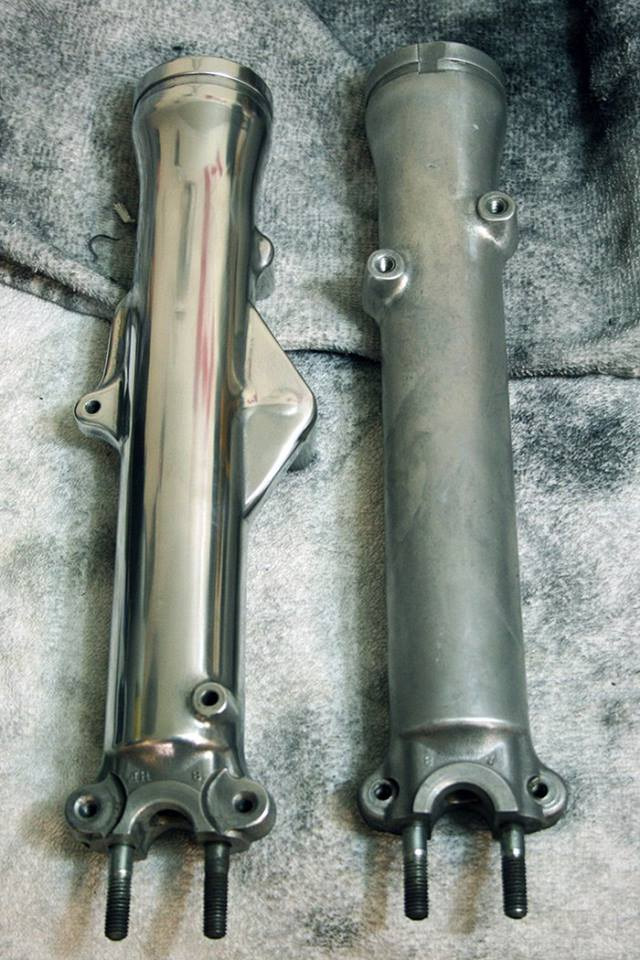

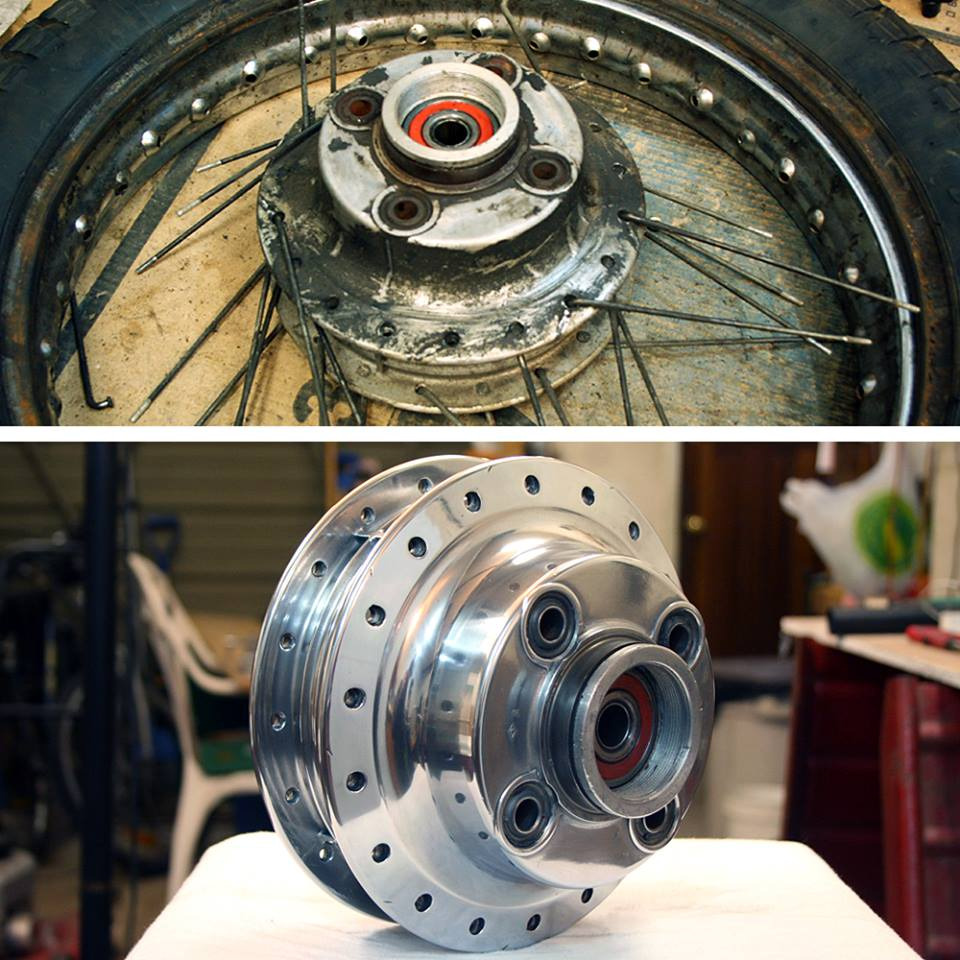

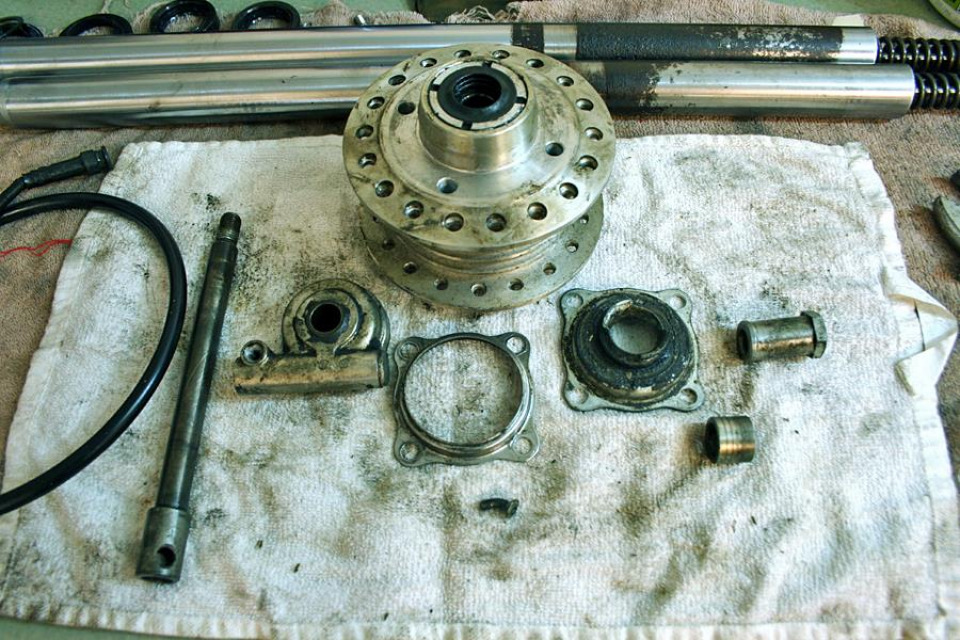

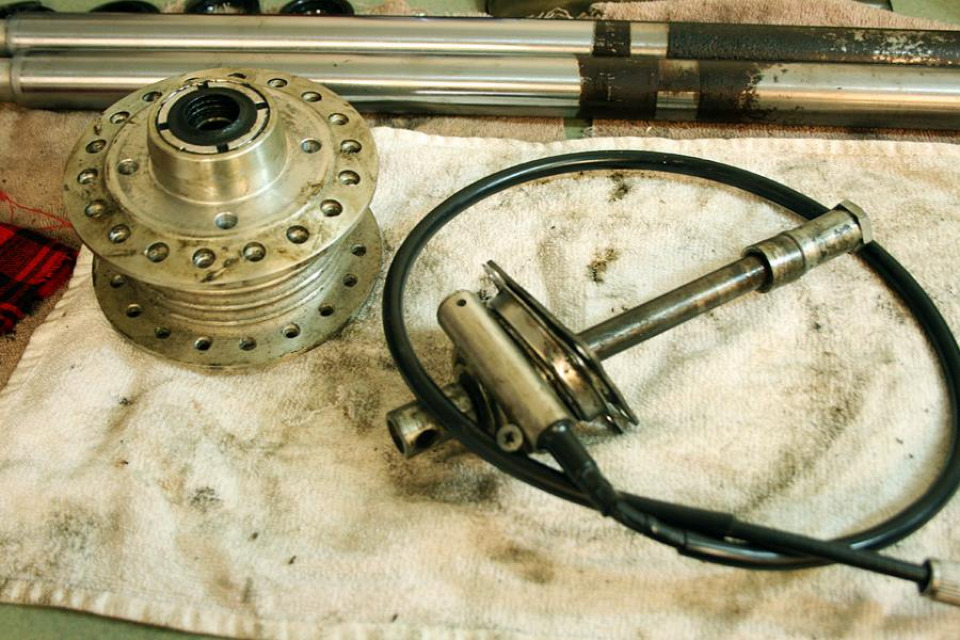

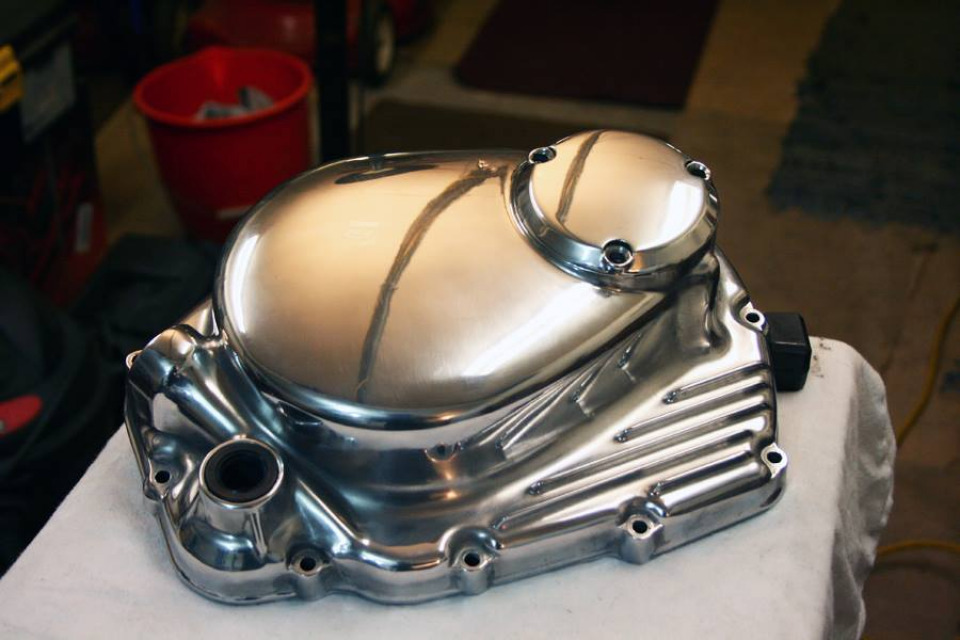

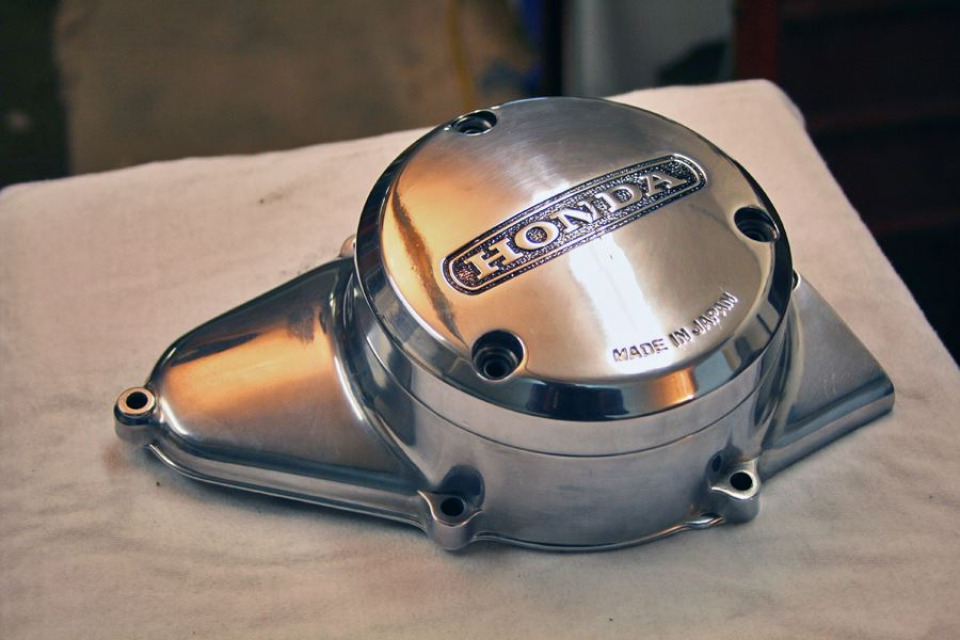

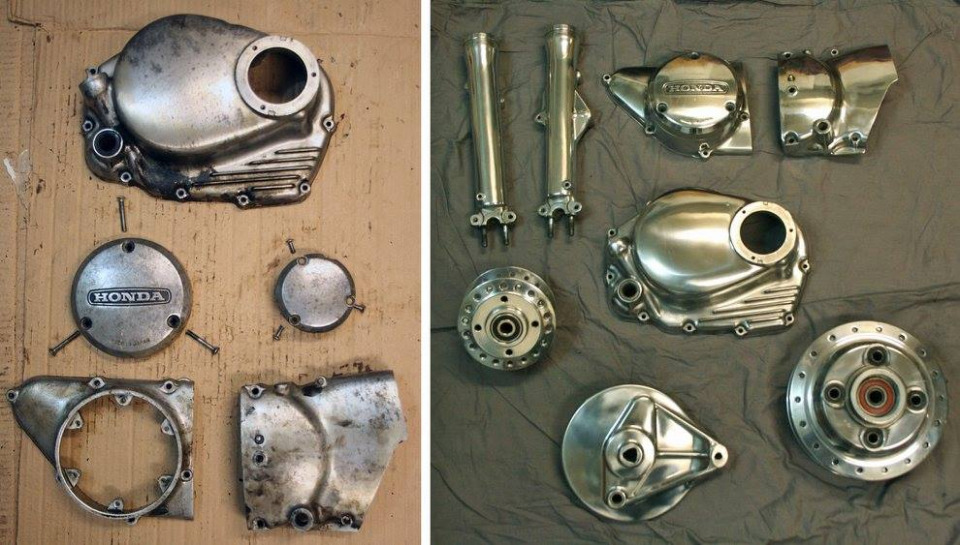

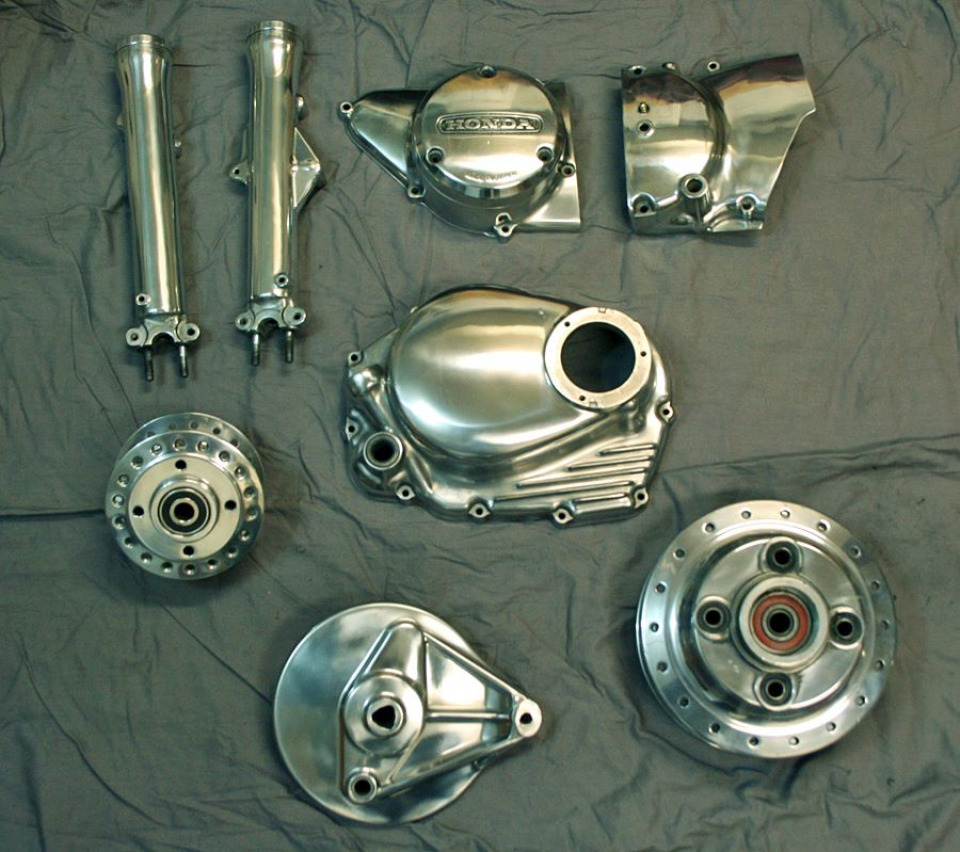

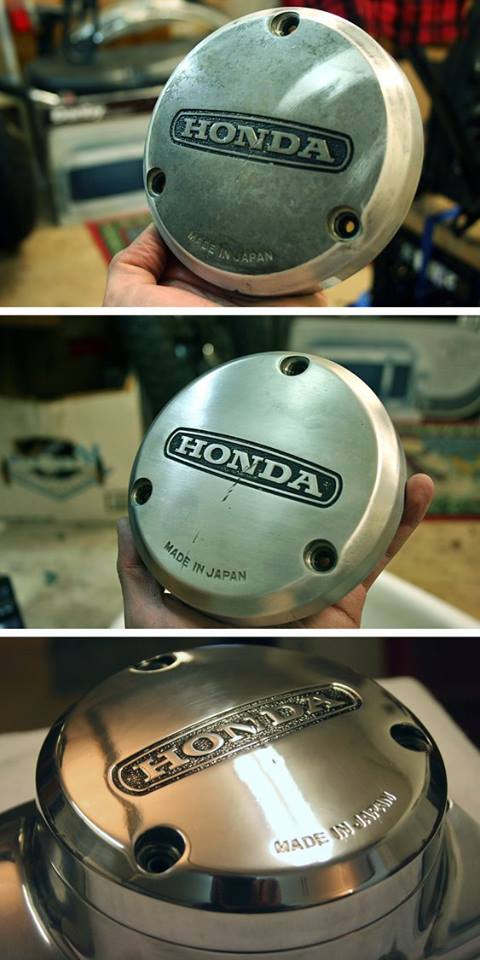

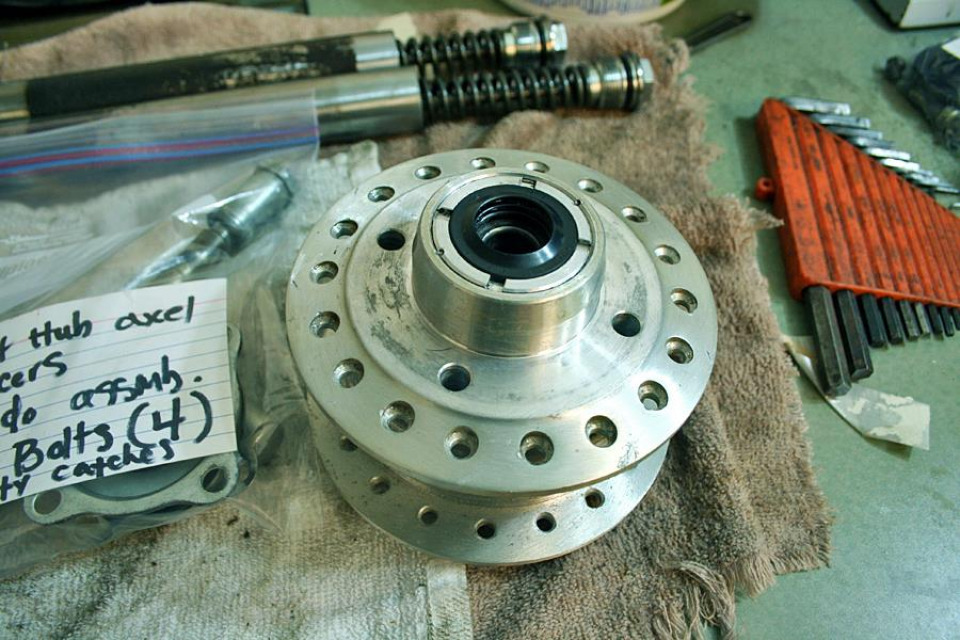

Here I dismantled the frong hub from the speedo drive then get the parts ready to be degreased. After degreasing comes sanding, then the buffing process begins! After 3 stages of buffing a brilliant shine comes up on the part! See for yourself!
