T100R Electronics…….The Beginning
![](/uploads/bikelogs/14/c3/960/4412686659d309f14c3.png)

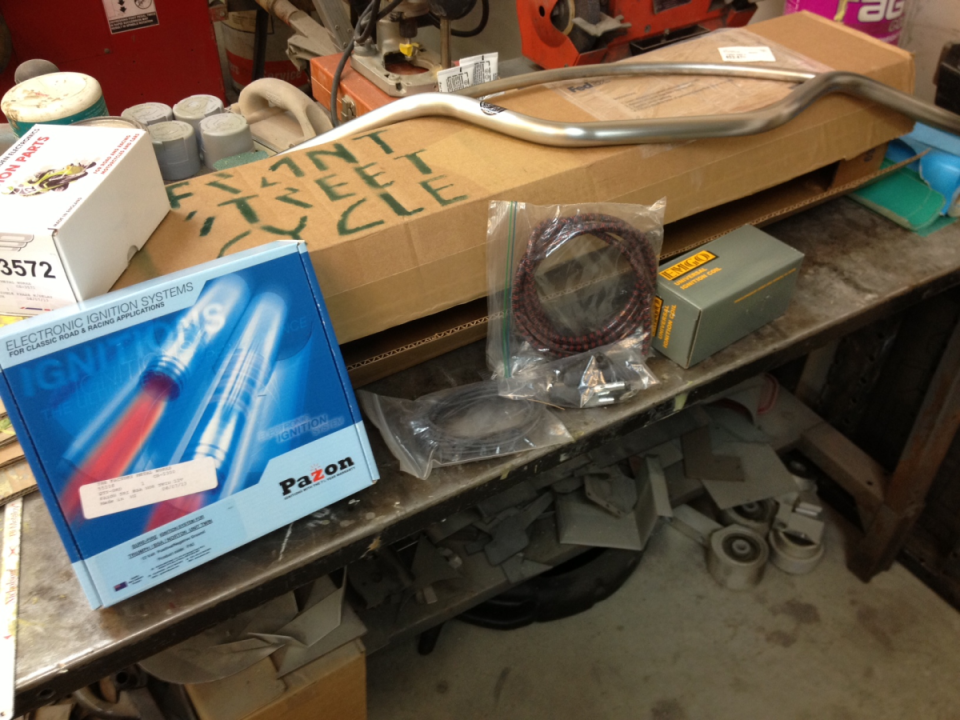

The stuff…..all the electronics came from the guys at The Factory Metal Works. Pazon electronic ignition, twin lead 12 volt coil, and Boyer battery eliminator.

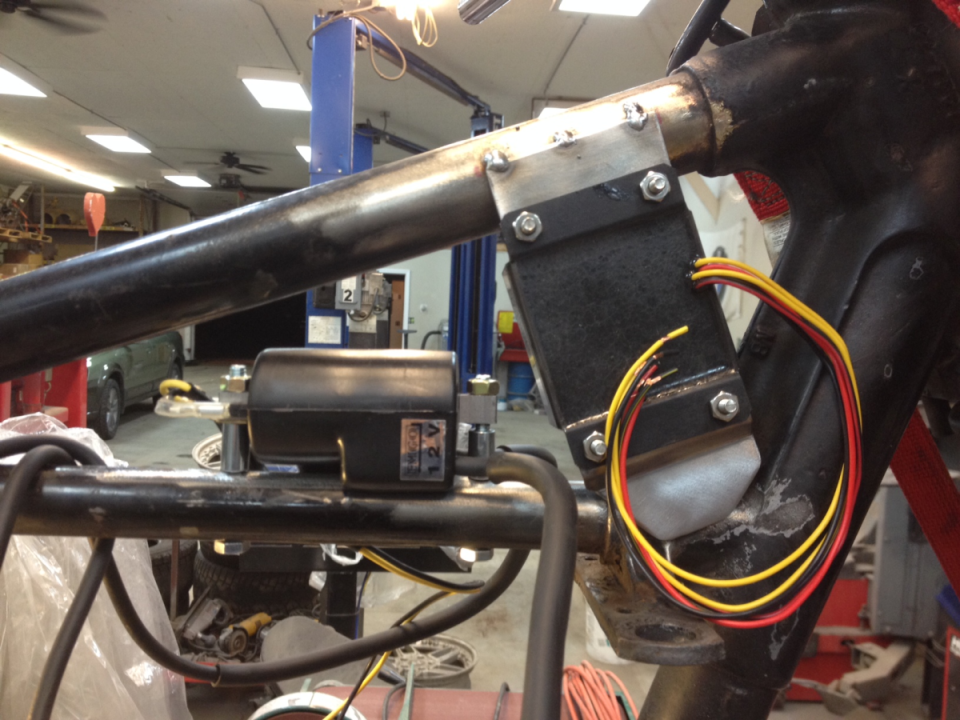

Had to cut out the original coil mounts, drilled the frame to mount the single coil, and made some mounts for the Boyer eliminator. It’s just tacked in for now, I still have to find a spot for the small ignition box.

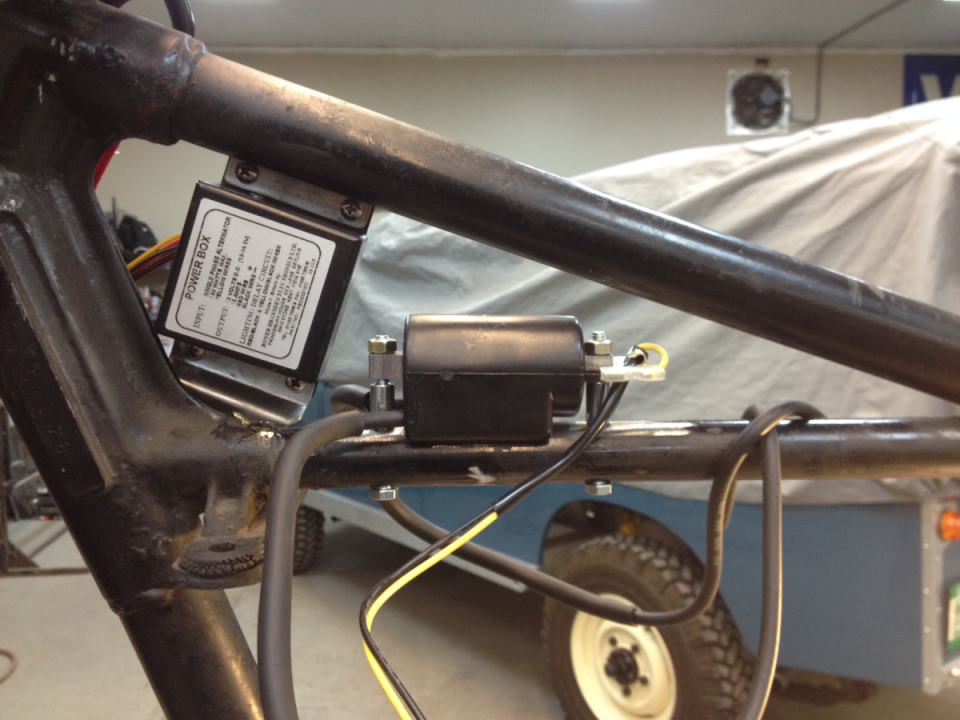

Left side

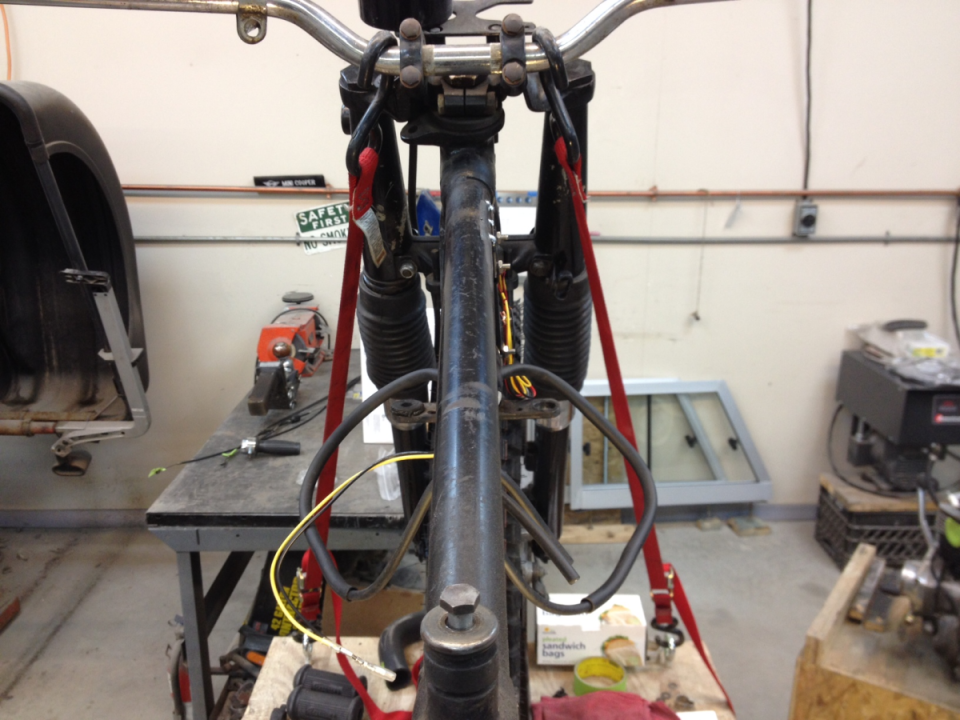

Top view…….everything tucks neatly under the frame top tube. Once I’m happy with everything and the bike is down to just frame I’ll get it on a welding table and tig weld the mounts so they look pretty
