Honda CBR600F4i 06 - service maintenance

The exterior inspection revealed only two minor snags:

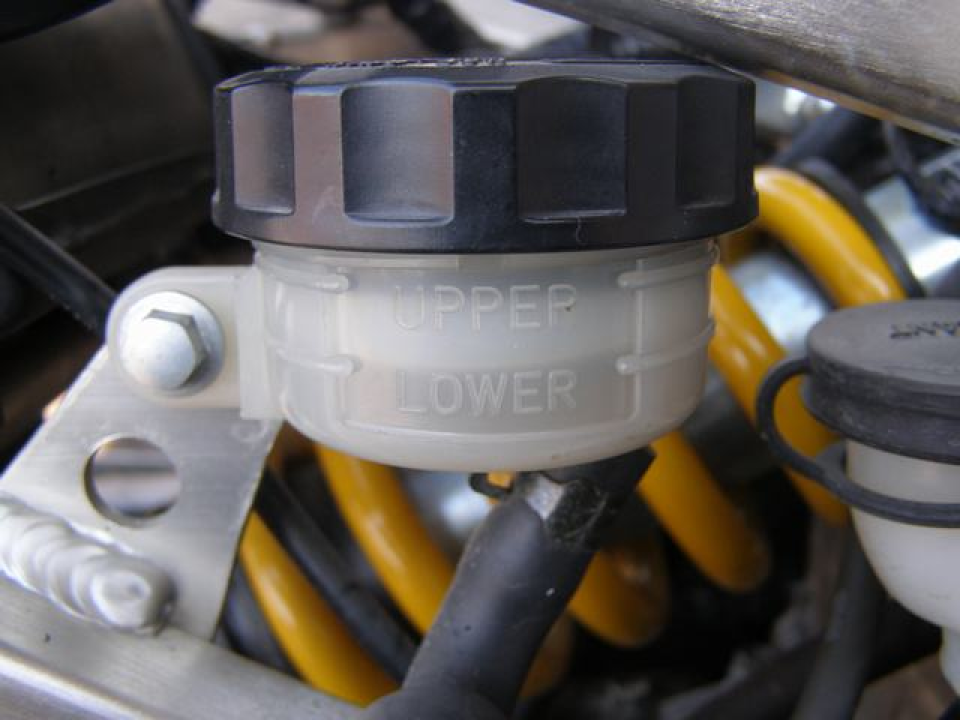

lower brake fluid level and

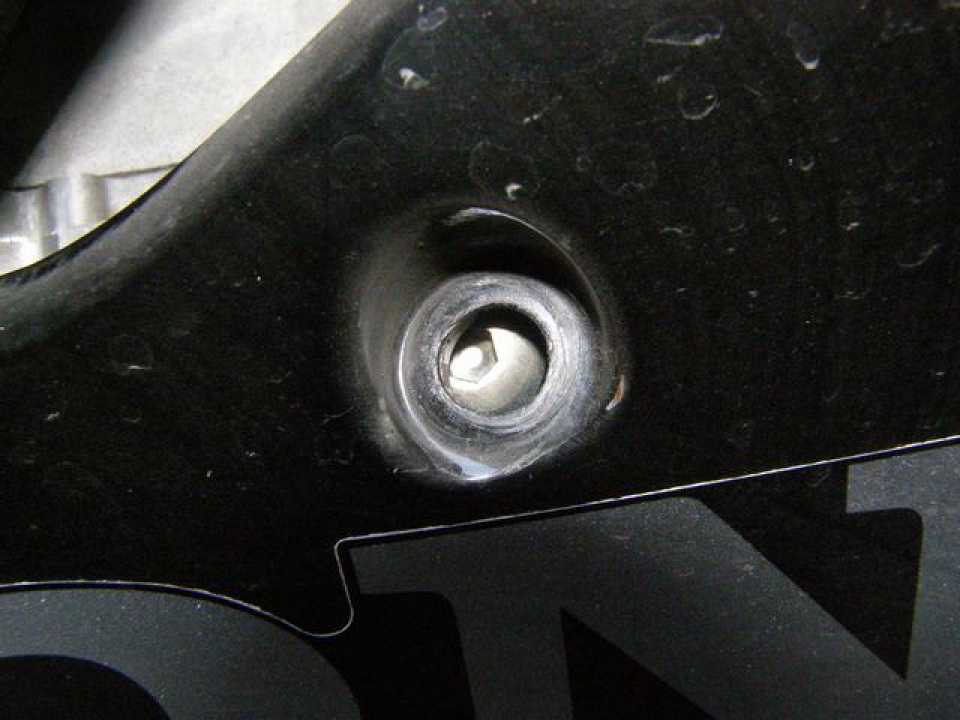

the bolt screwed in under the plastic, otherwise, no questions. I remove the seat, tank, lower plastic "plow".

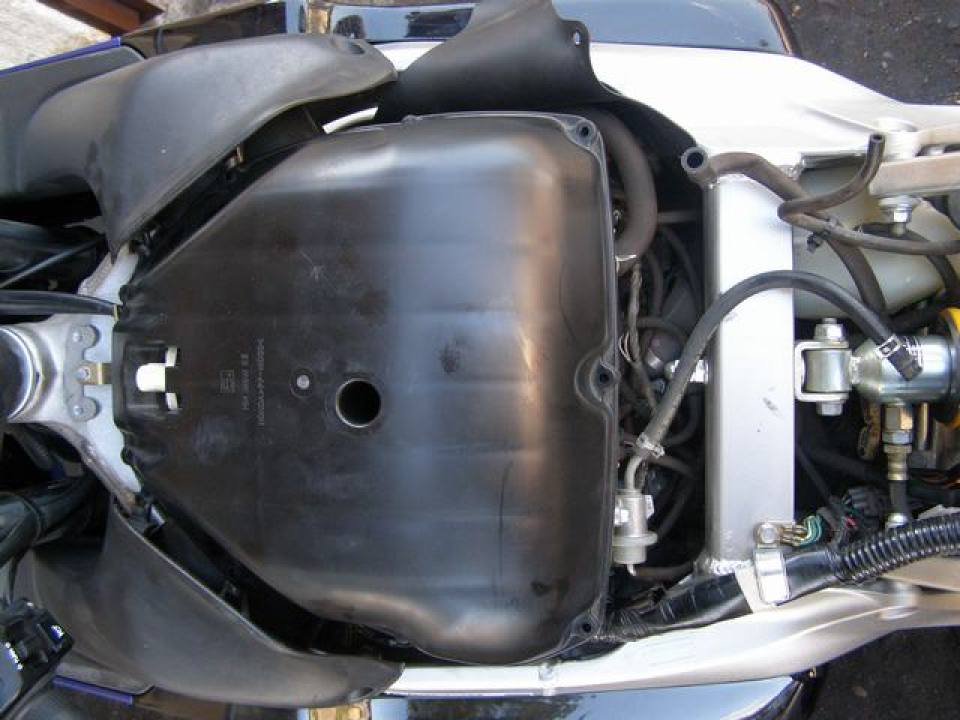

Under the tank, everything is surprisingly clean and very nice. Removing the top cover of the airbox:

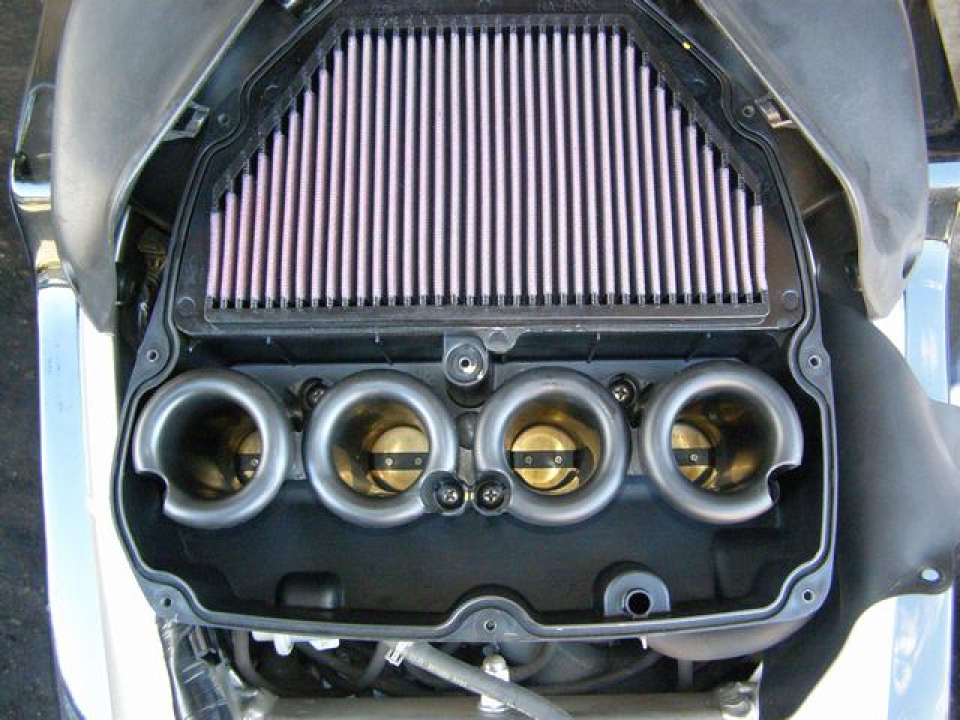

Same thing - filter's clean.

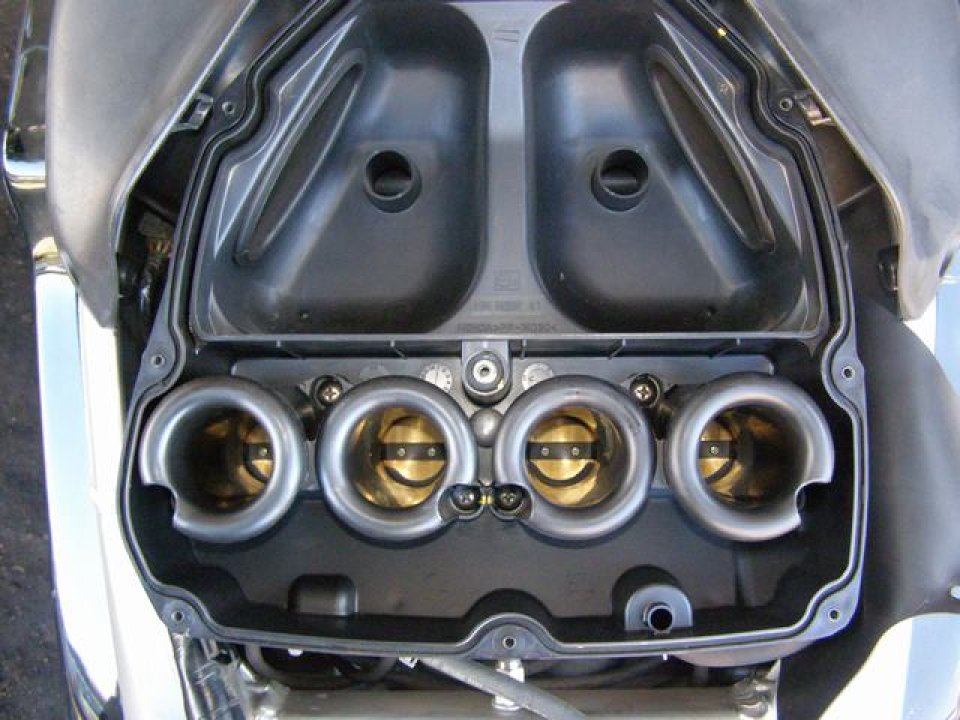

Debris, insects, dust and dirt are usually sucked in with the air under the filter. I lift it up:

Not a speck of dust, not a speck of dirt. This is the first time I've seen such an order.

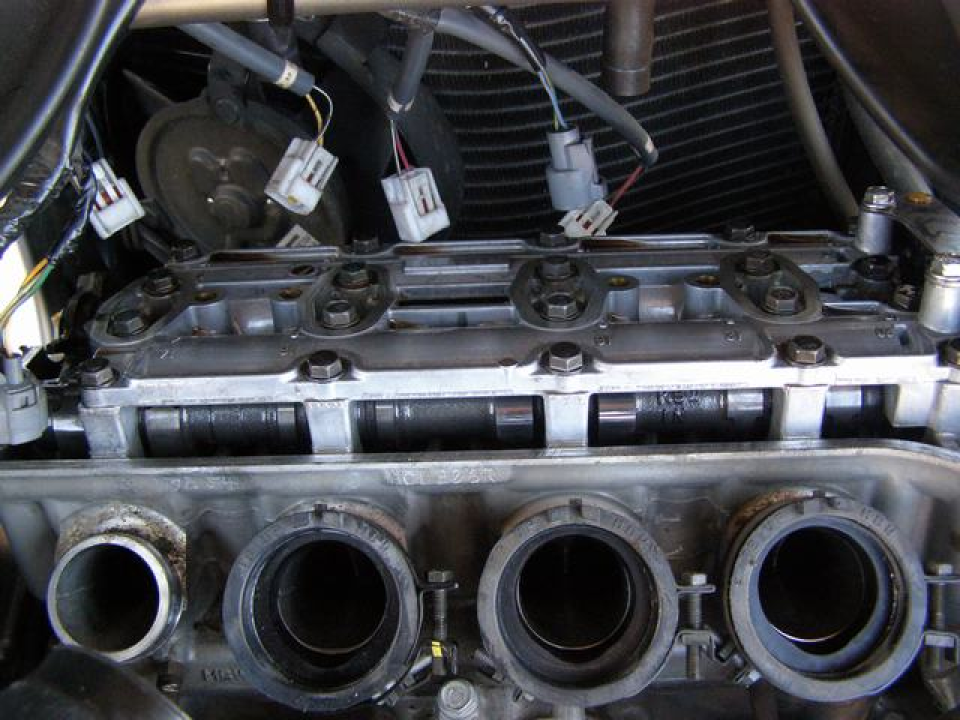

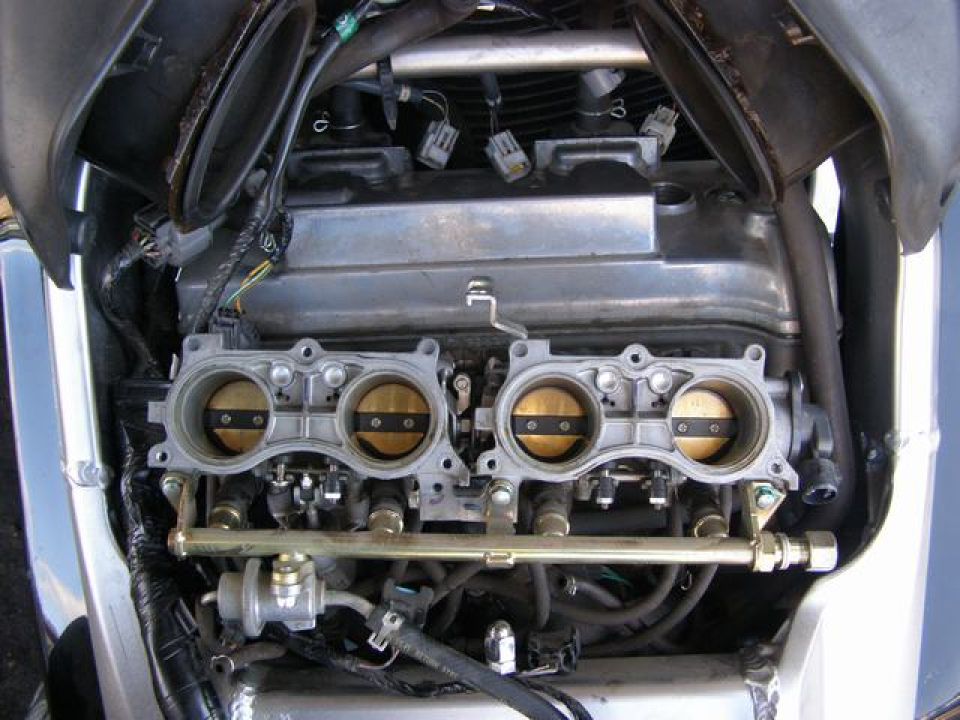

I unscrew the 6 bolts of the airbox, remove it, then the throttle block:

Then the valve cover, which by the way for the first time did not wash, but just wiped, although it can be dirty to impossible.

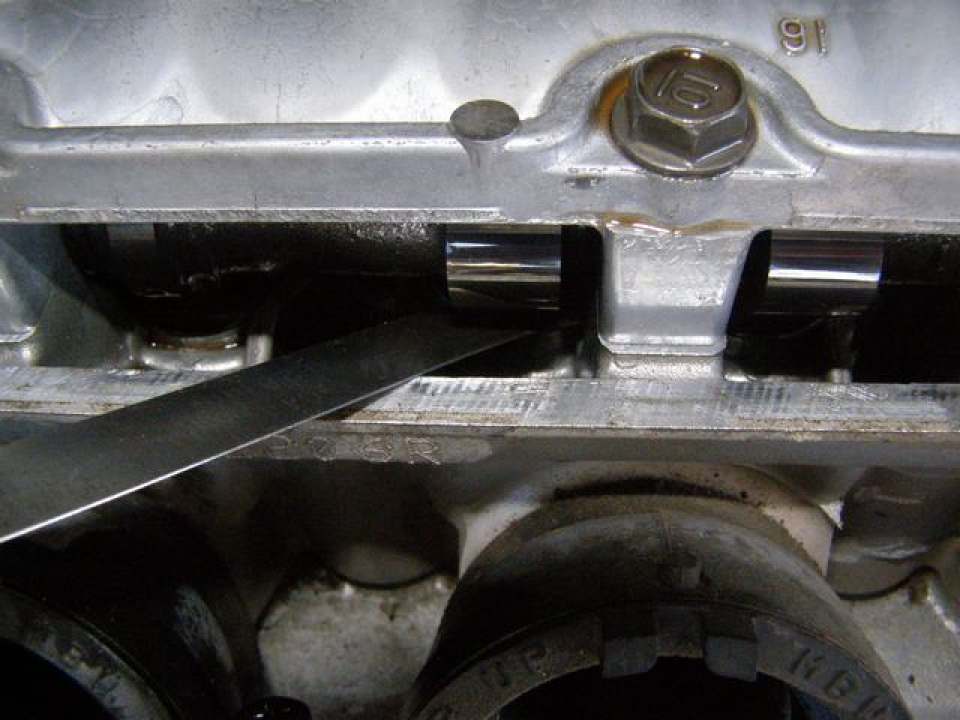

And measuring valve clearances:

The 7 intake valves are 0.02 off the minimum, so you will have to raise the pastel. It is very large and fragile, it must be unscrewed carefully.

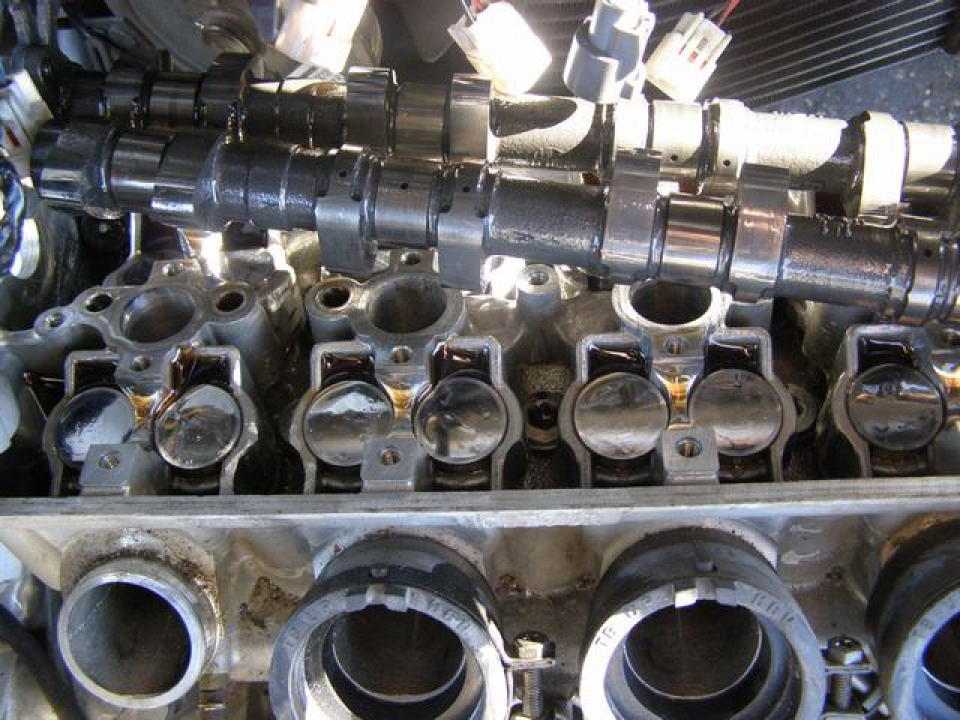

I lift the camshafts, their condition is close to ideal, as well as the seats. Then, as usual, the adjustment itself, and assembly in reverse order. After, - adjustment of the flaps, synchronization and test-drive. The engine sings!
