Well known for his unique creations and with two iterations of Appaloosa.The Indian Scout based sprint racer, already under his belt. Brice got a request to create two very special FTRs for two brothers. Black Swan and the FTR AMA.

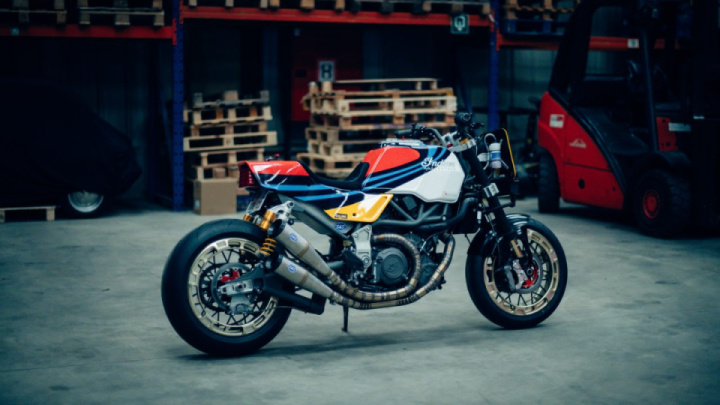

While Black Swan is yet to get revealed, the commissioner of Black Swan asked Brice to design a second build for his brother. The result is the FTR AMA. A bright and imposing motorcycle with a hardcore 1980s edge.

How it was made?

“The brief was pretty open, something colourful and as sharp as a war tank. The only restriction was that the Martini Racing livery inspired the paint. After some research and brainstorming. I based the look around AMA SBK racers from the 80s and the Rally cars from the same era. The main influences were the Lancia Delta HF mixed with Bol d’Or 750s and some muscle bike DNA,”& said Brice.

Starting work in early February 2021, Brice’s first decision was to retain an upright riding position close to the original FTR and use the original handlebars. From there, many changes were about to happen.

“While Black Swan was a clay shaped build, I decided to go in another direction in terms of the design process with this bike. I used direct CAD design based on a 3D scan of the FTR chassis. Then, all the body parts were 3D printed and reinforced with carbon fibre.”

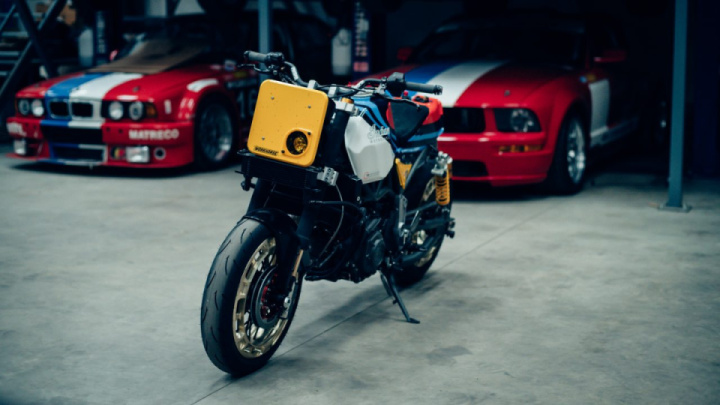

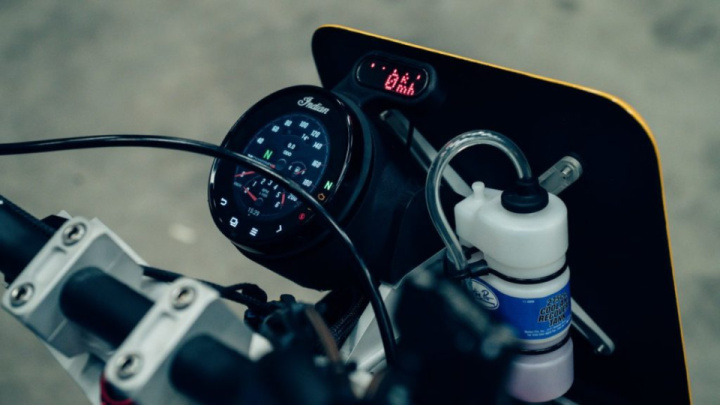

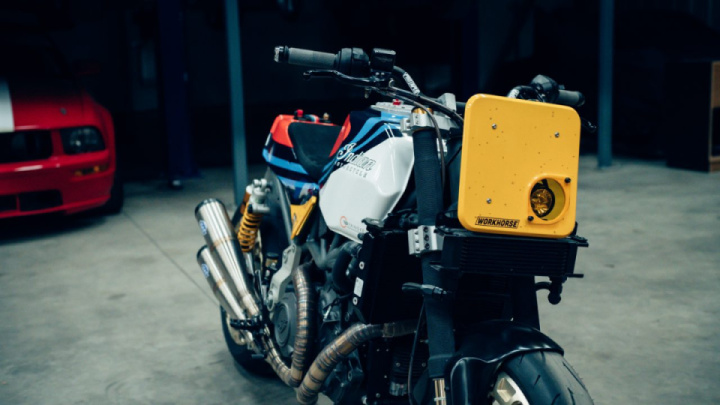

The 3D printed front plate houses a PiAA race light and supported the Setrab oil cooler beneath. Nestled behind the front plate sits the OEM dash from the new Indian Chief. A design more in keeping with the retro racing mood but with all the options of a modern machine. Such as phone connection and charging.

The printed module that incorporates the seat pan and taillight is also the battery holder. They removed the batter from the rear as a nod to endurance bikes. With the saddle upholstered in smooth brushed leather by long-time collaborator Jeroen from Silver Machine. The tail section hgets complemented by an old taillight adapted to take LEDs.

DNA

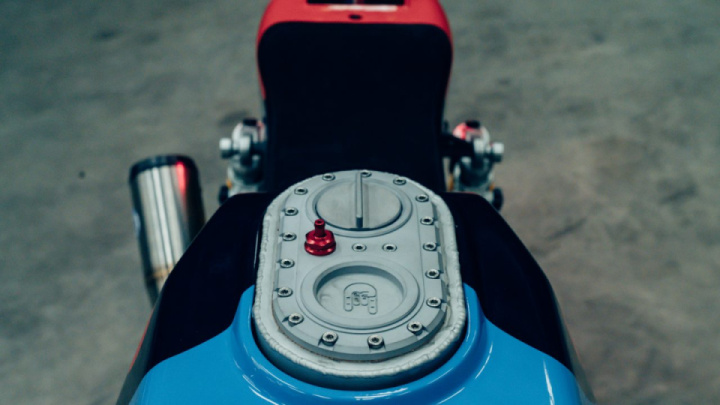

To accommodate the DNA performance air filters, they redesigned the intake, and 3D printed.While two they fabricate two aluminium fuel cells to fit the new bodywork, one under the tank cover. And the other hung under the seat unit. Connected by AN10 connectors, the capacity matches the 14 litres of the original bike.

CAD Designs

The chassis plates were redesigned for a more race-like look and machined from Brice’s CAD designs by Vinco Racing in Holland. Vinco Racing undertook all the machining on the project.Including the swingarm components, braking brackets, yokes, fuel cell components, the oil cooler’s front brackets, and more.

“Vinco Racing spent much time on the machining, which saved me much time to focus on other areas.”

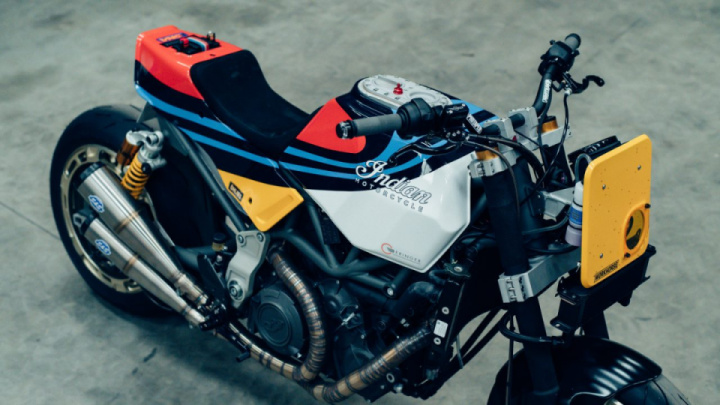

The fork yokes are replicas of Bol d’Or 750cc yokes adapted to the 43mm Öhlins forks. And at the rear, the tail section was modified to use twin piggyback Öhlins shocks mated to a bespoke swingarm built from 7020 aluminium Tubes. The swingarm design takes inspiration from the same era. And is 40mm longer than the original, with a 3D printed chain slider protecting the tubing.

Eye-catcher

“The wheelset is a total eye-catcher. I collaborated with Fabio from JoNich Wheels in Italy. The design is based on his Rush wheels, machined from billet aluminium. But without the carbon flanges. The design makes me think about the turbofans wheels used on the racing Lancia. So that was a perfect choice for me. It gets a Dunlop GP tyre set with this mad 200 rear tyre.”

Clearance for the braking system was a concern with these wheels.So Brice called on another long-time collaborator, Etienne, at Beringer Brakes.

“I called Etienne to get their 4D braking system, the same system I used on Appaloosa. Etienne is always motivated by technical challenges.

So, we played with different colours on the components to work with the AMA mood. And then, because I removed the ABS module, I had to find another way to get the speed signal on the bike, and the solution was a Motogadget Moto Scope Mini.”

To create the swoop of the exhaust, it was fabricated from stainless steel pie cuts. And beautifully welded together, capped off by a couple of modified slip-on S&S Cycle Grand National mufflers.

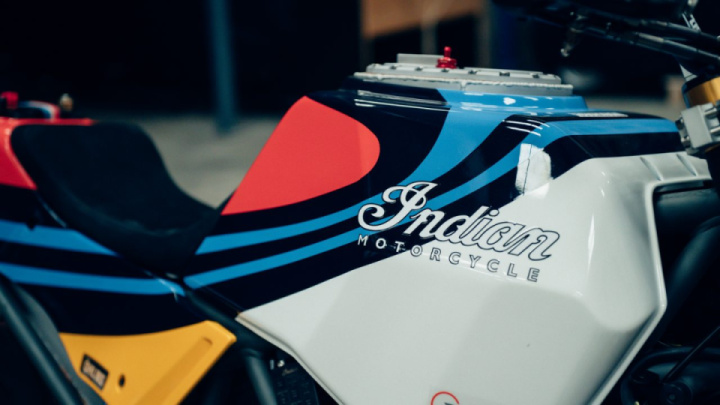

“The amazing paint job designed by Axecent in Japan has been applied by my friend Fabian who’s near my workshop. This build is aggressive, massive, and a real pleasure to ride. I had much fun testing this ride.”
